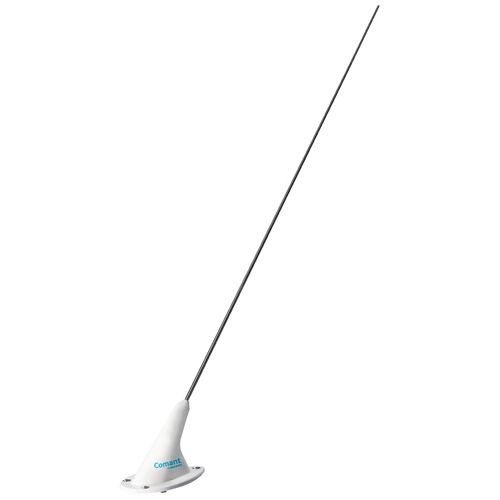

Comant VHF Communications - CI-292-1

0 Reviews 1 Answered Question
$285.00/Each
Quantity
Add to Wishlist
Part# 11-05093
MFR Model# CI-292-1

Overview

Frequencies Covered
118-137 MHz

Designed specifically for top mounting on an aircraft. Provides excellent omni-directional pattern coverage for all VHF aircraft communications. It is equivalent to the CI 291 but features a straight tapered stainless steel radiator.

The CI 292-1 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 292-1 VHF ANTENNA
Electrical
Frequency
118-137 MHz

VSWR
2.5:1 Maximum
Polarization
Vertical
Radiation Pattern
Omnidirectional
Impedance
50 Ohms
Power
50 Watts
Mechanical
Weight

0.5 lb. Maximum
Height
20.0 in. Maximum
Material
Cast Housing/Stainless Steel Whip
Finish
Polyurethane Enamel
Connector
BNC (Female)
Environmental
Temperature
-55ºC to +85ºC
Altitude
50,000 ft.
Air Speed
250 KTAS
Federal Specification
RTCA Environmental
DO-160D
FAA TSO
C37d, C38d

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Comant CI-292-1 antenna work with a Garmin GTR225? Sounds like it should.

Per the manual this antenna meets the requirements and specifications for the GTR 225.
