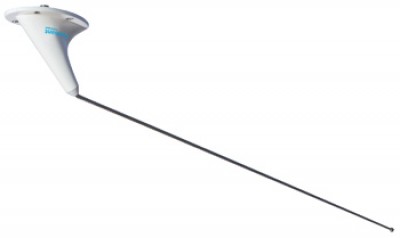

Frequency 88-108 MHz 550-1600 KHz AM/FM receive antenna offers a unique low profile design using standard 4 hole mounting used on many VHF type antennas. Bent whip configuration is ideally suited for underbelly and helicopter installations. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 222 AM/ FM ANTENNA | |
Electrical | |
Frequency | 88-108 MHz & 550-1600 KHz |
VSWR | 3.5:1 Maximum @ 98 MHz Mid-band 3.0:1 Maximum @ 88 & 108 Edges |
Polarization | Slant/Liner |
Radiation Pattern | Omnidirectional- Receive Only |
Impedance | 50 Ohms |
Resistance DC | Open circuit |
Power RF | 50 Watts |
Mechanical | |
Weight | 0.5 lb. Maximum |
Height | 5.5 in. Maximum |
Finish | White Polyurethane Enamel |
Material | Cast Zinc Housing/ Stainless Whip |
Connector | BNC (Female) |
Environmental | |
Air Speed | 450 Knots TAS at 25,000 ft. |
