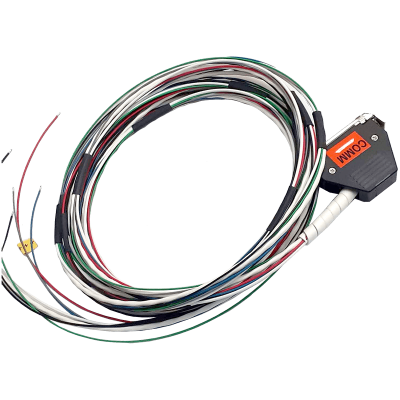

1K062 Cable harness AR62XX (open cable ends), length 3.7 m, for sailplanes, motor gliders, to be used for:
The 1K062 harness is not equipped with any quick-connect terminals, but instead has un-terminated stripped wires (that are labelled according to function/connection) at one end and the other end with a d-sub connector with backshell, for connection to the AR6201. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Solved my problem to install a second hand radio :-)
Becker 1K062 Cable Harness AR62Xx
This is not a plug and play harness and will only work out of the box if you have a dynamic microphone. For standard microphones such as Lightspeed, I had to change a wire in the connector plug to make it work which I only learned after several hours studying the wiring diagram for the radio. I wish I had known that before I bought the harness. Also it would have been very helpful if it was mentioned in the wiring diagram that comes with the harness.
Becker 1K062 Cable Harness AR62Xx
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For stereo headphone jack, see part # 11-04936. For mono headphone jack, see part # 11-03907.
Yes this will work with both standard and dynamic mics.
