Trig TY92 VHF Radio System
$3935.00/Each
Part# 11-11344
MFR Model# 01080-00
MFR Model# 01080-00
FREE Shipping
Overview

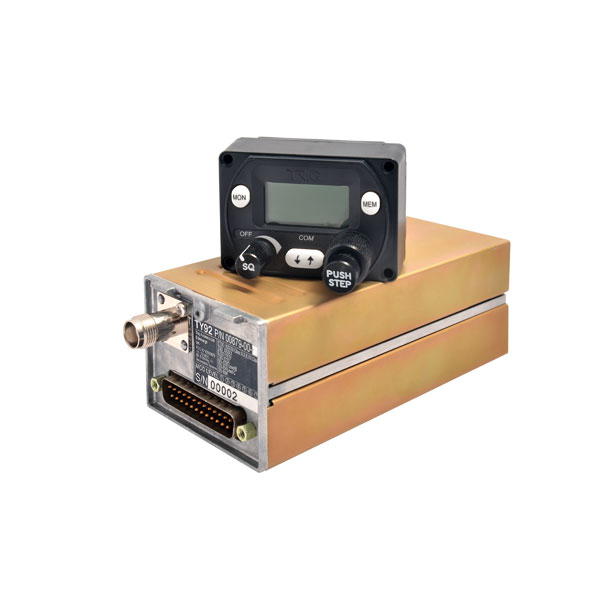

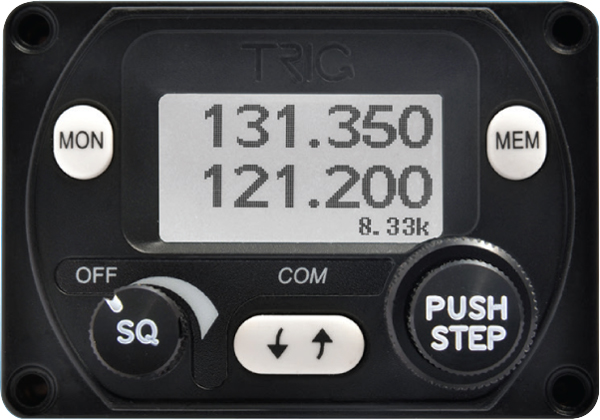

With a crisp clear display and simple user interface the Trig radio benefits from some great features; the ‘Dual Watch’ feature allows monitoring of two frequencies at the same time. There are 9 pre-set channel memories which are easily selectable. The radio can integrate with popular GPS units; this allows the automatic display of en-route radio frequencies (uses industry standard SL40 protocol). The radio also has a built-in two place intercom with an aux-input, saving further cost and weight. The innovative use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium. The control head can be conveniently mounted in a full 57mm (2 ¼”) round hole or even smaller compact mount. Fitting is straightforward, and once installed the depth of the radio control head is only 74mm (3”). In practice this means that the Trig TY92 control head can be located in an aircraft instrument panel where a ‘single box’ radio will simply not fit. The TY92 is the perfect comms partner to our TT22 or TT21 Mode S (1090 ES ADS-B Out transponders). The TY92 is EASA ETSO and FAA TSO approved so it can be used worldwide. For customers who do not require 8.33 channel spacing this feature can be disabled, allowing speedy selection between 50 kHz and 25 kHz spacing. This enables rapid change of frequency whilst providing fine tuning in 25 kHz steps if required. The TY92 Trig radio two place intercom is optimised for use with standard aviation headsets – a number of adjustments allow the radio to be used successfully in noisy aircraft. The TY92 also has a built in speaker amplifier that can drive an external speaker, this is preferred by some glider pilots. If using a dynamic microphone with a Trig radio please note an amplified adaptor will be required. All Trig products come with a two year warranty, supported by our global network of Approved Trig Dealers and Approved Trig Service Centers in the U.S. and Australia. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Provides more installation options while saving space with a control head and separate radio hardware
- Certified for 25 kHz and 8.33 kHz VHF transceiver
- Requires minimal space and weight - can be mounted in a 2.25-inch round hole or in a smaller compact mount; when installed, the control head is only 3 inches deep
- Equipped with 9 programmable memories and a dual watch function that allows users to monitor standby frequency
- Simple installation
- 16 watt version (see 01079-00 for 6-watt version)
- Perfect partner for Trig's TT21 and TT2 Mode S transponders
- Approved for fitting to European and FAA-registered aircraft
- Easily operable with gloves
- Includes a built-in speaker amplifier and two place intercom
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Is the TY92 Installation Kit (Part# 11-16858) included?
Yes, the installation kit is included in 11-11344.
