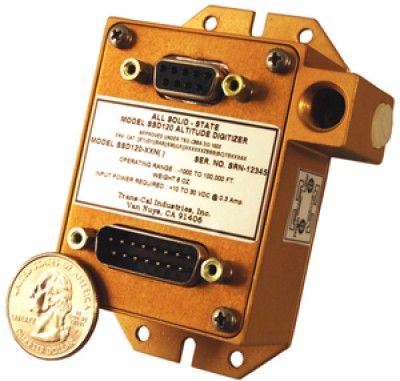

Trans-Cal Altitude Encoder Model Ssd120-35N-Rs232

0 Reviews 1 Answered Question
$575.00/Each
Quantity
Add to Wishlist
Part# 11-09609
MFR Model# SSD120-35N-RS232

Overview

Introducting the smallest, lightest and lowest power consumption altitude encoder, the Nano.

The SSD120-35N-RS232 is an all solid-state Altitude Encoder. This device provides a rugged and reliable means of measuring air pressure and converting this measurement into the ICAO parallel data for Pressure Altitude Transmission.

This unit also provides altitude data on two asynchronous RS232 outputs. The serial data protocol is individually selectable for each output and is commonly used to provide pressure altitude data to GPS, Auto-Pilots, Transponders and other navigation devices.

Resolution of the serial altitude data may be set to 100 feet or 10 feet. A data protocol offering one-foot resolution is available, as well as one protocol offering altitude data in meters.

Featuring:
  • The Best Warranty in the business: 42 months manufacture direct replacement. If your Trans-Cal encoder experiences a warranty covered failure, we will replace your unit with a brand new unit with a new 42 month warranty.
  • Average MTBF: 9.7+ years. That’s right: Trans-Cal encoders are among the most reliable on the market, commonly providing reliable service for over 10 years.
  • Pin for pin replacement for most other manufacturers encoders.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Dual 1/8-27NPT Static Port Inlets
  • One ICAO pressure altitude grey code output
  • One RS-485 compliant data output
  • Serial ports may be installer configured to transmit separate data protocols (message & baud rate)
  • FAA TSO-C88a and EASA ETSO-C88a Approved
  • Tested and Conforming to MIL-STD-704E and RTCA DO-160E
  • Power, ground and data I/O lines provided on Industry Standard D-Subminiature Connectors
  • Operating Voltage +10 to +33Vdc
  • Operating Current: Low Altitude +12Vdc @ 220mA / +28VDc @ 270mA
  • Operating Current: High Altitude +12Vdc @ 55mA / +28Vdc @ 60mA
  • Operating Temperature Range: -20° to +70°C
  • Operating Altitude Ranges: -1200 up to +35,000 feet
  • Weight: Low Altitude 5.9oz. / High Altitude 6.8oz.
  • Aluminum housing treated to resist corrosion

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do they need to be re-certified prior to installation?

No, they do not.
