Prestretched Control Cable

2 Reviews 2 Answered Questions
From $0.95 to $2.50
Main Image
Main Image
Cable
Dia.
(in.)		 Constr-
uction		 Strength
Galv.		 Strength
SS		 PN
Galv.		 Buy
Galvanized
Per Ft.		 PN
SS		 Buy
Stainless
Per Ft.
1/167X7-480--
05-11445
$1.25
Quantity
3/327X7920920
05-11287
$0.95
Quantity
05-11446
$1.10
Quantity
3/327X19-920--
05-11447
$1.90
Quantity
1/87X1920001760
05-11289
$2.15
Quantity
05-11448
$2.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These control cables are pre-stretched for closer tolerance applications and to reduce stretching following installation. The major difference between aircraft and commercial cable is the lubrication applied to aircraft cable, which provides substantially better fatigue life than non-lubricated commercial cable. Aircraft cable requires extensive extra testing, documentation and certification to meet military specifications. We obtain our aircraft cable from domestic sources and the cable is certified to MIL-DTL-83420 and QPL Certified. Unit of measure is feet.

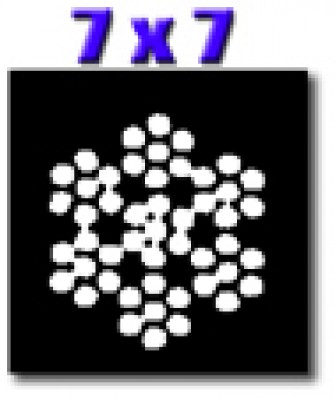

7 X 7 Flexible Control Cable
Has seven strands of seven wires each. Used for control purposes where extreme flexibility is not required but where abrasion is a factor.

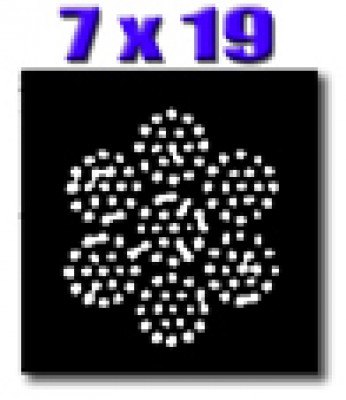

7 X 19 Flexible Control Cable
 Has seven strands of 19 wires each. Its greater metallic area makes it stronger than 7 X 7 cable. Because of its fine wires the best service is obtained where abrasion is not too severe. These same wires, however, make it flexible to meet severe bending.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

As advertised.

Edward H Verified Purchase

Pre-Stretched Control Cable 1/8 7X19 Galv
September 14, 2024

Looks like better quality than the same I got from Amazon. So Ill be installing this instead.

Michael G Verified Purchase

Pre-Stretched Control Cable 1/16 7X7 Stainless Steel
February 6, 2024

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I get some samples of Pre-stretched 3/32 7X7 and 3/32 7X19 stainless steel cables?

No, we do not send sample material, however we have no minimum order so you can place an order for a small amount to test with.

Q: Does the control cable come with a certificate to show it has been strain tested?

Yes. We have certs / test results available. Please request at time of order.
