Copper Sleeve 18-1-C MS51844-42

30 Reviews 5 Answered Questions

$0.16/Piece

Add to Wishlist View More In This Series →

Part# 05-03288
MFR Model# SL2-2

JUMP TO
Overview
Documents
Accessories
Reviews
Q&A
View in Catalog

Model No.	Our Part No.	Cable Size	Sleeve Type
MS51844-42	05-03288	1/16	Plain Copper

Overview

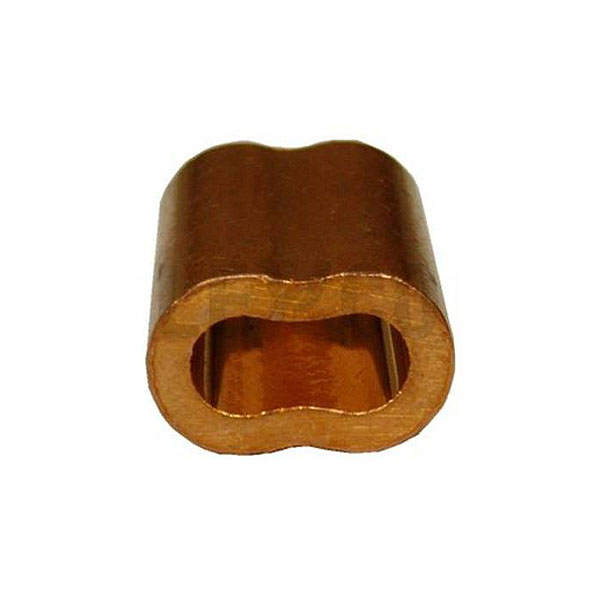

Oval shaped copper sleeves used in making eye or lap splices in flexible cable. Sleeves are slipped over the two strands of cable to be fastened and are then compressed with special Nicropress hand squeezers. Provides a bond that is even stronger than a standard splice. Plain copper and zinc coated sleeves are used with galvanized cable, and tin coated sleeves are to be used with stainless steel cable.

Refer to the documents tab for more details on these sleeves.


	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Technical Data Sheet (PDF)

Accessories
Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Exactly what I needed, hassle free ordering and at a fair price!!!

Chris W

November 2, 2024

Product was great, service was also ,thank you

Dennis B

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

October 12, 2024

Excellent

Fredrick B

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

June 12, 2024

Philip H

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

April 26, 2024

Perfect

Sky C

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

April 18, 2024

Great customer service

Applied I

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

March 13, 2024

James G

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

January 30, 2024

Gittens H

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

April 27, 2022

Steven S

Verified Purchase

Copper Sleeve 18-1-C MS51844-42

April 14, 2022

Good product ,good service fast delivery

Edgardo G

January 25, 2021

Great!!!

Guest A

November 25, 2020

Great product.

Greg P

September 14, 2020

Worked very well.

James

April 20, 2020

Very nice product, speedy delivery

Robert A

March 22, 2020

Just what I needed

Kenneth T

March 5, 2020

Good pricing!

Thomas N

December 21, 2019

Exactly what I expected. Fast shipping.

Dwight

October 22, 2019

Exactly what I expected. Fast shipping.

Dwight

October 22, 2019

As advertised. Lightening fast shipping. What else is there?

Donald P

June 1, 2019

Michael B

May 20, 2019

Exactly what I ordered, delivered the day after ordering. Thanks!

Mark

March 21, 2019

The 3/16 sleeves I used worked well. The 3/16 thimble was smaller (tighter radius) than I expected, found a larger one at a hardware store my my application.

David S

December 3, 2018

Quality item. I use aircraft quality on all my non-aircraft projects because of the better materials and cleaner look.

Tim C

October 25, 2018

received as expected, decent price, gets a thumbs up from me.

Matt S

August 24, 2018

Used these for years. Still work great. Thank you.

Justin

July 14, 2018

Exactly what I needed. Need to say more? Aircraft Spruce & SPecialty is always reliable and technically accurate.

Efraim O

May 8, 2018

Great selection and fast service. I got my product the Next day and ready for bussines. I highly recommend their services. Miguel Martinez Ceja AMT student - SAIT Aviation

Miguel M

December 16, 2017

Alan G

September 17, 2017

This is the only item I could find that could be used to connect wires in a steam mop (or other small appliance like a box fan) to a non-resetable type thermal cutoff fuse, since the fuses are not solderable and must be crimped to its connecting wires. This size would have been better if it was just half as long, so I cut one in half lengthwise to make it work. The resulting crimp (using vise-grips) is very strong.

Thomas A

September 22, 2020

Sleeve failed! I made a 3/16” brake cable for an Aeronca Champ and used the sleeve properly with a thimble. Used the proper swaging tool. One push of the brakes and it failed.

Barry

July 7, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which nicropress sleeves are used for stainless steel control cable?

Tin coated sleeves are used with stainless steel cable.

Q: Which tools are needed for fitting sleeves?

We have several installation tools to choose from. They are on page 775 of the 2013-2014 catalog. 12-12000, 12-12100, 12-12200, 12-12400, 12-00222, 12-02560, and 12-02561 are examples (see accessories). Verify the size tool will work with the sleeve to be used.

Q: Could you inform the procedure to installation the swaging sleeve MS51844-42 with the nicopress swaging tool 64-CGMP?

The proper cable sleeve swaging procedures are explained and illustrated in the FAA 43.13 acceptable, methods and practices publication.

Q: What is the part number for 1/4 inch diameter cable nicopress? You sell 1/4 inch cable, 1/4 inch thimbles, but I dont see the 1/4 inch nicopress...

See part # 04-01634

Q: What are zinc plated sleeves used for?

You would use zinc or tinned sleeves on stainless cables to avoid some corrosion issues.
