Quick-Disconnect Fuel Line Fittings

Select Model:
In-Line with Shut-OffIn-Line without Shut-OffPanel Mount with Shut-OffPanel Mount without Shut-Off
Quantity
Add to Wishlist

Overview

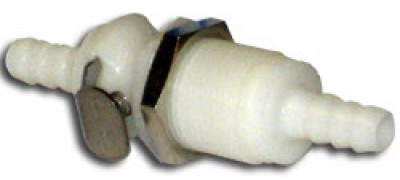

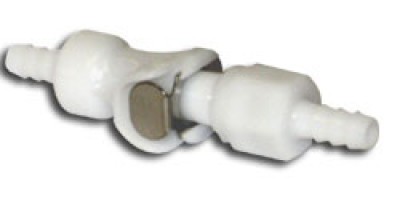

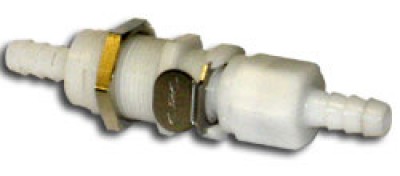

Complete sets are furnished with both male and female units. Available in both panel mount (left) and in-line (center) styles, with or without internal automatic fuel shut-off. (1/4” tubing).The O-rings are made of Viton Synthetic rubber which is compatible with alcohol based fuels. Excluding P/N: 05-01038 (Buna-N Rubber)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

good quality fair price

Eddie N
December 31, 2017

Good quality

Eddie H
February 19, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the general dimensions of the in-line without shutoff quick-disconnect fuel line fitting?

The barb ends are 1/4" O.D. for 1/4" I.D. rubber hose. Total length end to end is 2-1/2". Each barb is approx 5/8", and body approx 1-1/4".

Q: What is the maximum panel thickness the threads will allow?

The maximum panel thickness will be about 9/16" for the panel mount fittings.

Q: Does both sides of the inline fitting have a fuel shut off?

Yes both sides will shut off when detached.
