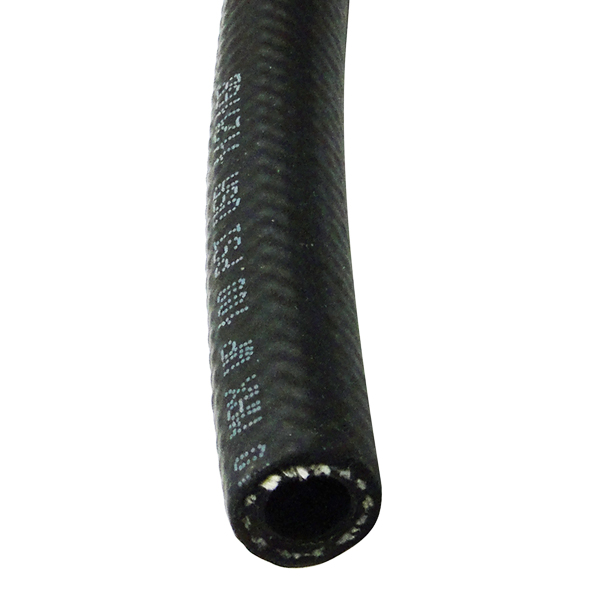

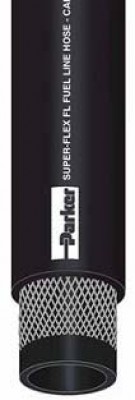

Parker Super-Flex 397 Series Fuel Line Hose

From $3.40 to $5.65
PN ID OD Price Per Ft. Buy
05-03597
1/40.500$3.40
Quantity
05-03598
3/80.625$5.65
Quantity
05-07223
5/160.562$5.35
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Parker's fuel line hose includes a thermoplastic barrier that helps protect the atmosphere from harmful hydrocarbons that escape through the carcass of ordinary fuel hose. This hose surpasses all of CARB's stringent permeation requirements and is similar to SAE30R7 specifications. The Super-Flex FL hose also features an abrasion and weather resistant cover to help protect from external application abuse.

Approved for biodiesel fuels that meet ASTM D 6751 requirements per UL guidelines for Biodiesel compatibility.

4:1 Design factor

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Tube: NBR with a thermoplastic barrier
  • Cover: Black Hypalon
  • Reinforcement: Braided Polyester
  • Temperature Range: -30°F to +257°F (-34°C to +125°C)


PN ID
(in.)
Reinf. Braids OD
(in.)
Approx. Weight per 100 ft. Min. Bend Radius Max Rec. WP
05-03597 1/4 1 0.500 9.7 1.5" 100
05-03598 3/8 1 0.625 1.30 2.5" 100
05-07223 5/16 1 0.562 11.3 2" 100

Reviews

Met our requirement

Milkor I Verified Purchase

Super Flex Fuel Line Hose 3/8

November 28, 2024

Cowell A Verified Purchase

Super Flex Fuel Line Hose 5/16

August 28, 2024

part arrived as ordered in a timely manner

John H Verified Purchase

Super Flex Fuel Line Hose 3/8

August 19, 2024

Reduced overnight smell of gas in closed aircraft compared to 30R7 hose.

Ken L Verified Purchase

Super Flex Fuel Line Hose 3/8

August 15, 2024

Bought 5/8 OD. This is slightly larger than the ancient Parker SuperFlex hose it replaces (about 0.025 or 0.635 mm larger) . A squirt of silicone spray helps when chasing this product through a standard 5/8 ID grommet..

David J Verified Purchase

Super Flex Fuel Line Hose 3/8

July 17, 2024

High quality fuel hose. Arrived quickly and very satisfied with the results.

Lee A Verified Purchase

Super Flex Fuel Line Hose 1/4

January 24, 2024

Exactly what I needed, with fast service.

Richard V Verified Purchase

Super Flex Fuel Line Hose 5/16

January 16, 2024

Ok so far. Time will tell.

Rd W Verified Purchase

Super Flex Fuel Line Hose 1/4

January 3, 2024

The hose was received with a continuous round hole in the center.

Donald D Verified Purchase

Super Flex Fuel Line Hose 1/4

September 20, 2023

The hose was received with a continuous round hole in the center.

Donald D Verified Purchase

Super Flex Fuel Line Hose 5/16

September 20, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the price per foot or per inch?

This material is priced and sold per foot.

Q: What type of fittings / hose ends are used with Parker super-flex 3/8 fuel line?

This is a rubber hose which uses barb type fittings per each application. No special fittings are attached to the hose.

Q: Is the Parker Super-Flex FL Fuel Line hose designed for fuel containing ethanol?

Yes, this hose is approved to be used with ethanol.

Q: Is the hose pn 05-07223 approved?

This product is ASTM approved.

Q: Is this Parker super-flex FL fuel line compatible with AVGAS?

Yes, these hoses are compatible with AVgas.

Q: What type of hose clamps are recommended for this Parker Super-Flex FL Fuel hose? For example, part # 05-03597.

You can use hose clamps a variety of hose clamps with this hose. For example: 6504, QS100-6W, QS200-06H, snapper clamps 05-00940 or 15-05994.

Q: Does Parker super-flex have a certificate of conformance issued by the manufacturer?

Yes, the Certificate of Conformance statement is included on the manufacturer's packing slip. It can be furnished with the order as long as it is requested at the time of order. Additional charges may apply.

Q: What is the shelf life / age limit of the Parker Super-flex 397 material?

The shelf life of this hose is 10 years if stored in normal conditions.

Q: Is the parker super flex hose for acceptable for use on certified aircraft?

No, this is intended for use on experimental aircraft only.

Q: Does the Parker Super-Flex 397 hose have the date of manufacture printed on the hose?

Yes, the manufacture date is printed on the hose.
