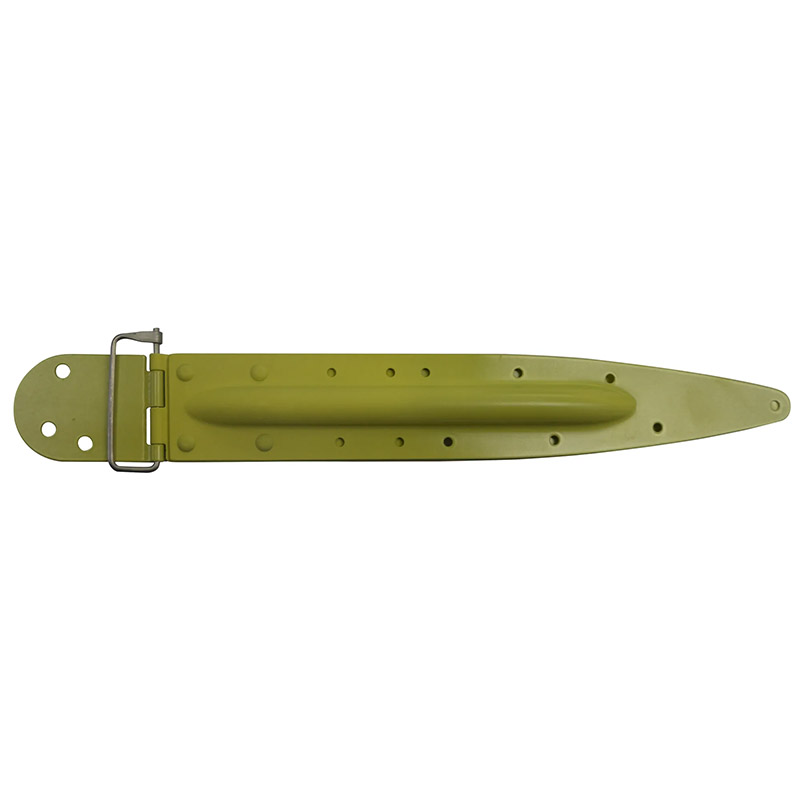

McFarlane Cabin Door Hinge Assembly MC0511280-6
$783.00/Each
Part# 05-29021
MFR Model# MC0511280-6
MFR Model# MC0511280-6
FREE Shipping
Overview
|
Cabin Door Hinges for Cessna 170, 172, and 175 Series Aircraft
Improved McFarlane design
Cessna legacy airplanes, built prior to 1979, feature a door post skin that angles inward (toward the front edge of the door). Aircraft with this bend require a hinge with a 5° bend for correct installation. Later models and new production aircraft do not have this inward angle and use a straight hinge. McFarlane manufactures both bent and straight hinges. We HIGHLY recommend verifying your door hinges before ordering. When in the field, replicating the 5° bend from a straight hinge is very difficult and rarely correct. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Fast door removal — makes cabin maintenance easier!
- FAA-PMA approved design 5x stronger with stainless steel
- Easy to inspect secure safety pin design
Supersedures
- 0511280-2 - MC0511280-6
- 0511280-6 - MC0511280-6
Eligible Aircraft
| Make | Series | Model | Start S/N | End S/N | Quantity Per Aircraft | Location | Eligibility Chart |
|---|---|---|---|---|---|---|---|
| Cessna | 170 | 170B | 26996 | 27169 | 1 | Door Hinge Assembly - Upper Right | 7143 |
| Cessna | 172 | 172 | 28000 | 46754 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172A | 46755 | 47746 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172B | 17247747 | 17248734 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172C | 17248735 | 17249544 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172D | 17249545 | 17250572 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172E | 17250573 | 17251822 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172F (T-41A) | 17251823 | 17253392 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172G | 17253393 | 17254892 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172H (T-41A) | 17254893 | 17256512 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172I | 17256513 | 17257161 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172K | 17257162 | 17259223 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172L | 17259224 | 17260758 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172M | 17260759 | 17263458 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172M | 17263459 | 17267584 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172N | 17267585 | 17274009 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172P | 17274010 | 17276654 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172Q | 17275869 | 17276211 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172R | 17280001 | 17299999 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172RG | 172RG0001 | 172RG1191 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | 172S | 172S8001 | 172S99999 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172D | F172-0001 | F172-0018 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172E | F172-0019 | F172-0085 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172F | F172-0086 | F172-0179 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172G | F172-0180 | F172-0319 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172H | F17200655 | F17200754 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172H | F172-0320 | F172-0654 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172K | F17200755 | F17200804 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172L | F17200805 | F17200904 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172M | F17200905 | F17201234 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172M | F17201235 | F17201514 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172N | F17201515 | F17202039 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | F172P | F17202040 | F17202254 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | P172D | P17257120 | P17257188 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 175 | 175 | 55001 | 56238 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 175 | 175A | 56239 | 56777 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 175 | 175B | 17556778 | 17557002 | 1 | Door Hinge Assembly - Upper Right | 7088 |
| Cessna | 175 | 175C | 17557003 | 17557119 | 1 | Door Hinge Assembly - Upper Right | 7088 |
