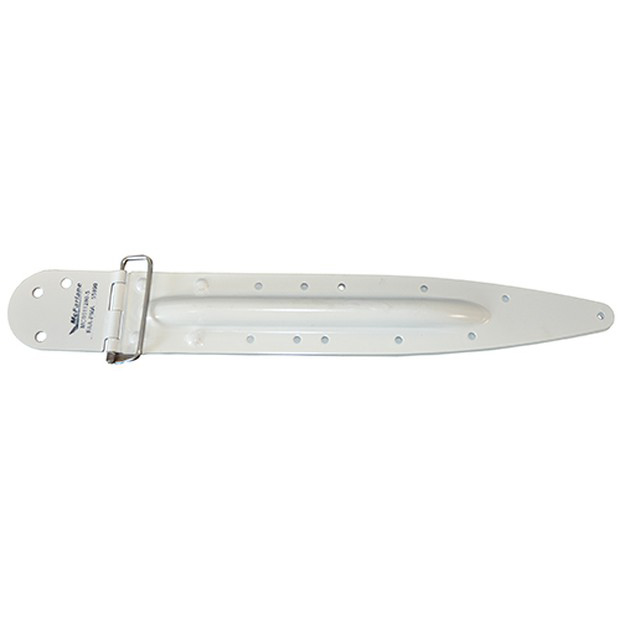

Cabin Door Hinge Assembly for Cessna Aircraft

$744.00/Each
Quantity
Add to Wishlist
Part# 05-27278
MFR Model# MC0511280-5

Overview

Replacement FAA-PMA cabin door hinge assembly for Cessna 170 / 172 / 175 aircraft. Note: Cessna legacy airplanes, built prior to 1979, feature a door post skin that angles inward (toward the front edge of the door). Aircraft with this bend require a hinge with a 5° bend for correct installation. Later models and new production aircraft do not have this inward angle and use a straight hinge.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • FAA-PMA approved welded design
  • Thicker alloy steel
  • Heat-treated for extra strength and wear resistance
  • Precision pin holes for longer life
  • Pre-drilled and epoxy primed

Supersedures

  • 0511280-1
  • 0511280-5

Eligibility

Make Series Model Beginning S/N Ending S/N Quantity Per Aircraft Location
Cessna 170 170B 26996 27169 1 Door Hinge Assembly - Upper Left
Cessna 172 172 28000 46754 1 Door Hinge Assembly - Upper Left
Cessna 172 172A 46755 47746 1 Door Hinge Assembly - Upper Left
Cessna 172 172B 17247747 17248734 1 Door Hinge Assembly - Upper Left
Cessna 172 172C 17248735 17249544 1 Door Hinge Assembly - Upper Left
Cessna 172 172D 17249545 17250572 1 Door Hinge Assembly - Upper Left
Cessna 172 172E 17250573 17251822 1 Door Hinge Assembly - Upper Left
Cessna 172 172F (T-41A) 17251823 17253392 1 Door Hinge Assembly - Upper Left
Cessna 172 172G 17253393 17254892 1 Door Hinge Assembly - Upper Left
Cessna 172 172H (T-41A) 17254893 17256512 1 Door Hinge Assembly - Upper Left
Cessna 172 172I 17256513 17257161 1 Door Hinge Assembly - Upper Left
Cessna 172 172K 17257162 17259223 1 Door Hinge Assembly - Upper Left
Cessna 172 172L 17259224 17260758 1 Door Hinge Assembly - Upper Left
Cessna 172 172M 17260759 17263458 1 Door Hinge Assembly - Upper Left
Cessna 172 172M 17263459 17267584 1 Door Hinge Assembly - Upper Left
Cessna 172 172N 17267585 17274009 1 Door Hinge Assembly - Upper Left
Cessna 172 172P 17274010 17276654 1 Door Hinge Assembly - Upper Left
Cessna 172 172Q 17275869 17276211 1 Door Hinge Assembly - Upper Left
Cessna 172 172R 17280001 17299999 1 Door Hinge Assembly - Upper Left
Cessna 172 172RG 172RG0001 172RG1191 1 Door Hinge Assembly - Upper Left
Cessna 172 172S 172S8001 172S99999 1 Door Hinge Assembly - Upper Left
Cessna 172 F172D F172-0001 F172-0018 1 Door Hinge Assembly - Upper Left
Cessna 172 F172E F172-0019 F172-0085 1 Door Hinge Assembly - Upper Left
Cessna 172 F172F F172-0086 F172-0179 1 Door Hinge Assembly - Upper Left
Cessna 172 F172G F172-0180 F172-0319 1 Door Hinge Assembly - Upper Left
Cessna 172 F172H F17200655 F17200754 1 Door Hinge Assembly - Upper Left
Cessna 172 F172H F172-0320 F172-0654 1 Door Hinge Assembly - Upper Left
Cessna 172 F172K F17200755 F17200804 1 Door Hinge Assembly - Upper Left
Cessna 172 F172L F17200805 F17200904 1 Door Hinge Assembly - Upper Left
Cessna 172 F172M F17200905 F17201234 1 Door Hinge Assembly - Upper Left
Cessna 172 F172M F17201235 F17201514 1 Door Hinge Assembly - Upper Left
Cessna 172 F172N F17201515 F17202039 1 Door Hinge Assembly - Upper Left
Cessna 172 F172P F17202040 F17202254 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172E FR17200001 FR17200060 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172F FR17200061 FR17200145 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172G FR17200146 FR17200225 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172H FR17200226 FR17200350 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172J FR17200351 FR17200590 1 Door Hinge Assembly - Upper Left
Cessna 172 FR172K FR17200591 FR17200675 1 Door Hinge Assembly - Upper Left
Cessna 172 P172D P17257120 P17257188 1 Door Hinge Assembly - Upper Left
Cessna 172 R172K R1722000 R1723454 1 Door Hinge Assembly - Upper Left
Cessna 175 175 55001 56238 1 Door Hinge Assembly - Upper Left
Cessna 175 175A 56239 56777 1 Door Hinge Assembly - Upper Left
Cessna 175 175B 17556778 17557002 1 Door Hinge Assembly - Upper Left
Cessna 175 175C 17557003 17557119 1 Door Hinge Assembly - Upper Left
