McFarlane Cdhp-Kt-1 Hinge Pin Kit

$121.75/Each
Part# 05-26511
MFR Model# CDHP-KT-1

Overview

McFarlane CDHP-KT-1 Hinges for Cessna 172 & 175 Aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • AA-PMA solid welded design
  • Precision pin holes for longer life
  • Straight or bent to fit older aircraft
  • Pre-drilled and epoxy primed
  • Heat treated where required for extra strength and wear resistance

Specifications

  • FAA-PMA approved
  • Stainless steel - 5x stronger
  • Secure safety pin design
  • Easy to inspect
  • Fast door removal, makes cabin maintenance easier

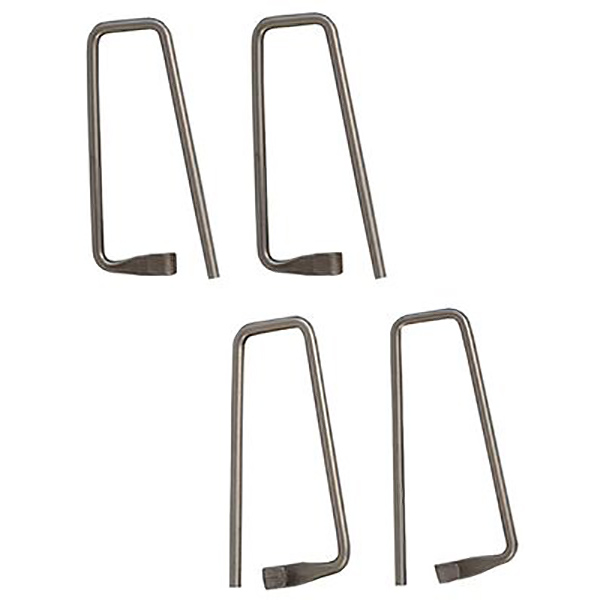

In The Box

  • 2 - Pin, Hinge, Cabin Door, 2.00" (7205-2.00U)
  • 1 - Pin, Hinge, Cabin Door, 1.63" (7205-1.63U)
  • 1 - Pin, Hinge, Cabin Door, 1.63" (7205-1.63D)
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Worked Great

Air A Verified Purchase

McFarlane Cdhp-KT-1 Hinge Pin Kit

May 1, 2024

We replace every door with these when existing pins fail. Great addition to the optional parts list.

Bill L Verified Purchase

McFarlane Cdhp-KT-1 Hinge Pin Kit

March 9, 2023

good replacement for worn hinges.

Falcon A Verified Purchase

McFarlane Cdhp-KT-1 Hinge Pin Kit

June 22, 2021

Excellent on our 1963 Cessna 172 to facilitate door removal ehen needed. Top quality.

Brian S
September 14, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: will one of these do two doors or one door - it looks like 4 pins in the box but are they 2 different sizes ?

There is 1 each for the upper hinges- one for LH and one for RH. The other two are for the lower hinges. This would be enough for one aircraft.

Q: Would these CDHP-KT-1 HINGE PIN KITS fit a 170B, also?

Yes this will work on all the 170s. 170, 170A, and 170B.

Q: What diameter is the pin? Will the 1.63 close on a hinge 1.50 inches wide?

Per the manufacturer: these will work for that application.
