Allen Premium Fuel Shut-Off Valves

From $239.95 to $3709.00
PN Model Handle Ports Config Positions Position
1
Position
2
Position
3
Position
4
Buy
05-29500
6S122No33 x 1/4-18 NPT4all
closed
A & Call closedB & C$239.95
Quantity
05-29515
6S1000No4MS33649-0641 & 42 & 43 & 4all closed$3324.00
Quantity
05-29525
6S1001No3MS33649-064C & AC, A, & BC & Ball closed$3709.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Only part # 05-29500 includes the handle

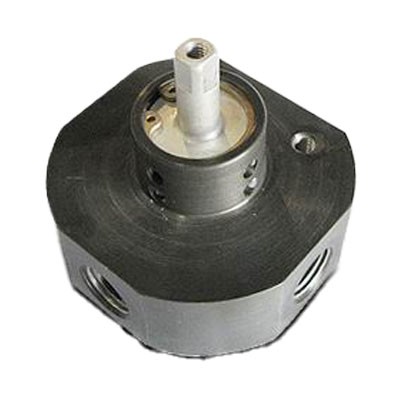

These premium fuel valves are recommended by Rutan Aircraft as the best fuel valves they have seen. They are a direct, bolt-in replacement for Weatherhead and other fuel valves. They turn smoothly and freely with a very positive spring loaded ball detent system which lets you feel the left right and off positions. Manufactured of anodized aluminum. Handle is not furnished with valve. Available in 3 models. Model GS122 valve originally recommended for Long-EZ. Not FAA approved. For experimental aircraft only.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this valve, part number 05-29500, have positions for right, left, both, and off?

Per the position chart listed on-line, the 05-29500 does not have positions for right, left, both , & off. Part numbers 05-04451 & 05-02635 do offer these positions.

Q: Does part # 05-29500 have FAA-PMA?

No, it is not FAA approved.

Q: Are replacement o-rings available for part # 05-29500?

Orings: M83248/1-011, MS29513-114

Retaining Ring: MS16625-1081
