Cozy Mark IV
Specifications / Performance

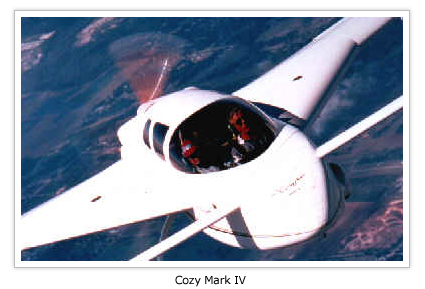

Cozy Mark IV Photo
Engine--- Lycoming O-360 180 hp.
Wing Span

28.1 ft
Wing area

88.3 ft2
Canard Span

12.6 ft
Canard Area

14.7 ft2
Length

16.9 ft
Height

7.9 ft
Cabin W/H

42/39
Max. front seat

400 lbs.
Empty wt.

1050 lbs.
Gross wt.

2050
Take-off solo/gross

1200/1700 ft.
Climb solo/gross

2000/1200 fpm
Cruise 75% 8000 ft.

220 mph
Cruise 40% 12000 ft.

185 mph
Max. range 75%

1000 mi
Max. range 40%

1300 mi.
Ceiling

20,000+ ft.
Ldg.Dist.solo/gross

1000/1300 ft.


The Cozy Design is an Aircraft Spruce Copyright
Aircraft Spruce purchased the Cozy designs (Cozy III and Cozy Mark IV) from Co-Z Development, and as of January 1, 2004 has the exclusive right to market these designs. These designs are protected with U.S. copyrights, and Aircraft Spruce has licensed no one else to copy all or any part of these designs to sell, loan, or give to others.
