Vividia Ablescope VA-400i Rigid One-Way Articulation Borescope for iPhone iPad Android Windows PC

0 Reviews 0 Answered Questions
$399.98/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-06446
MFR Model# VA-400I

Overview

The 2024 edition of the Vividia VA-400i Rigid USB One-Way Articulating Video Borescope introduces several enhancements:
  • Direct connection to iPhone/iPad, Android, and Windows PCs.
  • 1280x720 resolution for clearer, more vivid images.
  • Broad focus range from ~5mm to infinity.

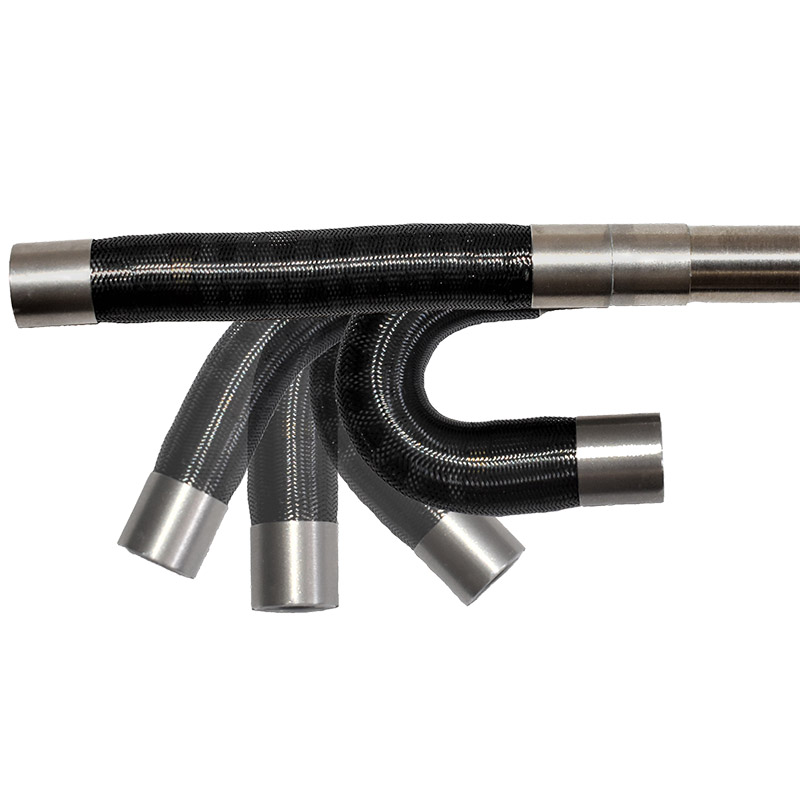

  • Durable tungsten braided mesh layer on the bending part*.
  • Locking/unlocking mechanism for bending angles, by popular demand**.
  • Single button for photo capture.

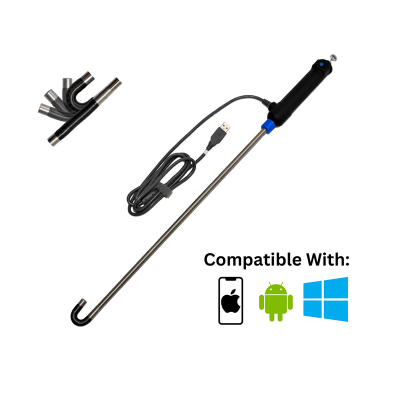

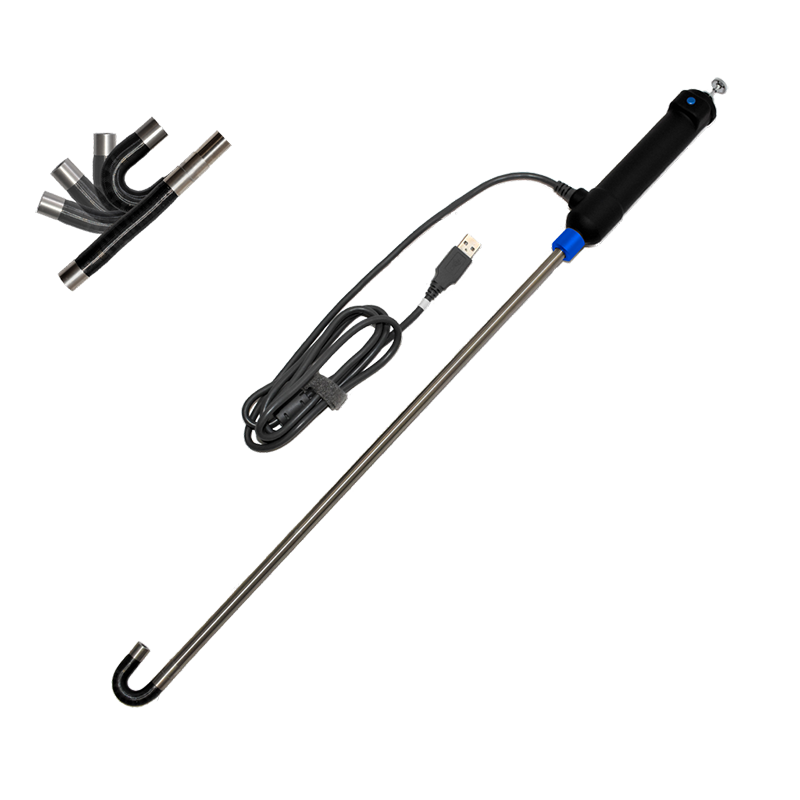

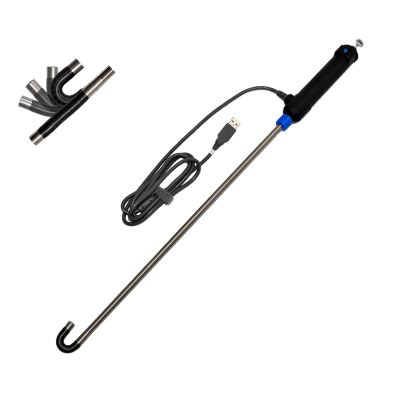

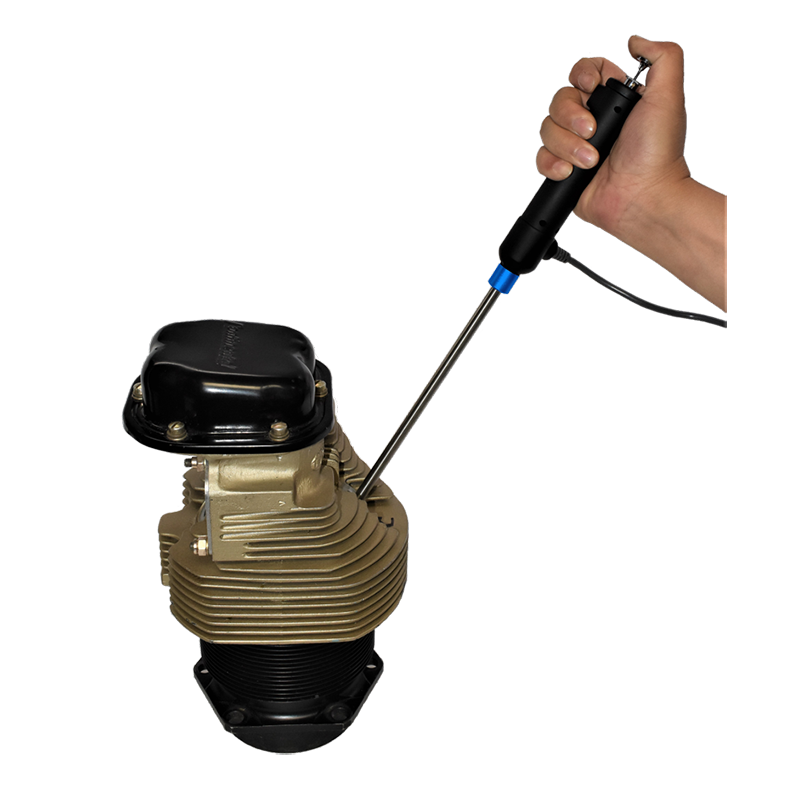

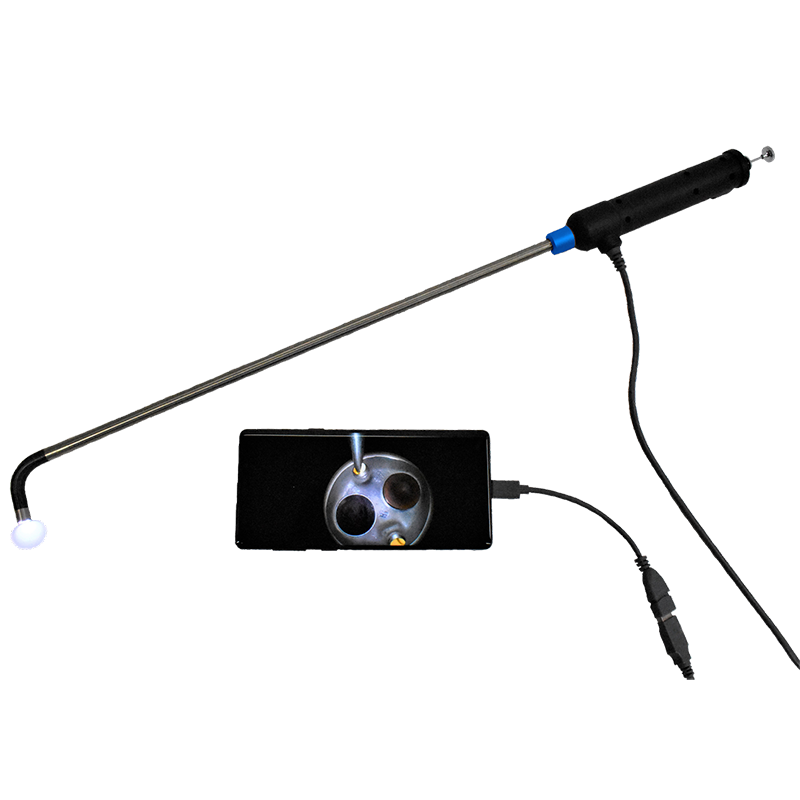

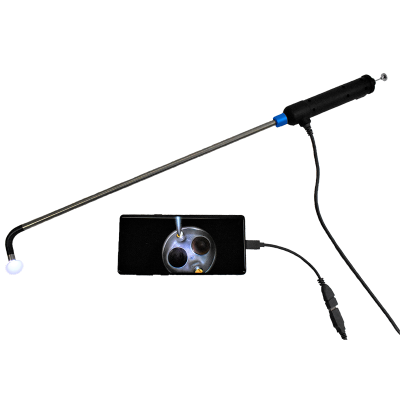

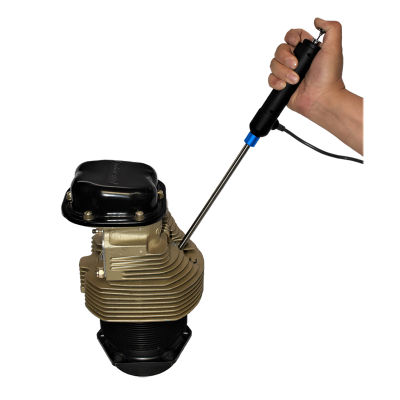

The Vividia Ablescope VA-400i borescope is perfect tool for conducting detailed inspections in difficult-to-access areas, like car engines. It features a flexible 180-degree articulating 8.5mm diameter steel probe, equipped with 8 bright LED lights. This design enables thorough examination of dark, internal compartments, particularly the backside areas that are typically hard to see. * No more changing rubber sleeves!
** Locking feature is back due to popular demand.

Note: The LED light brightness can not be adjusted.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • ​The angle of articulation is fully adjustable from a straight position to a full 180° bend, allowing for the examination of the interior of dark, enclosed spaces.

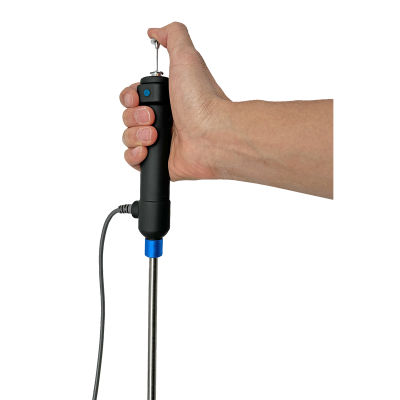

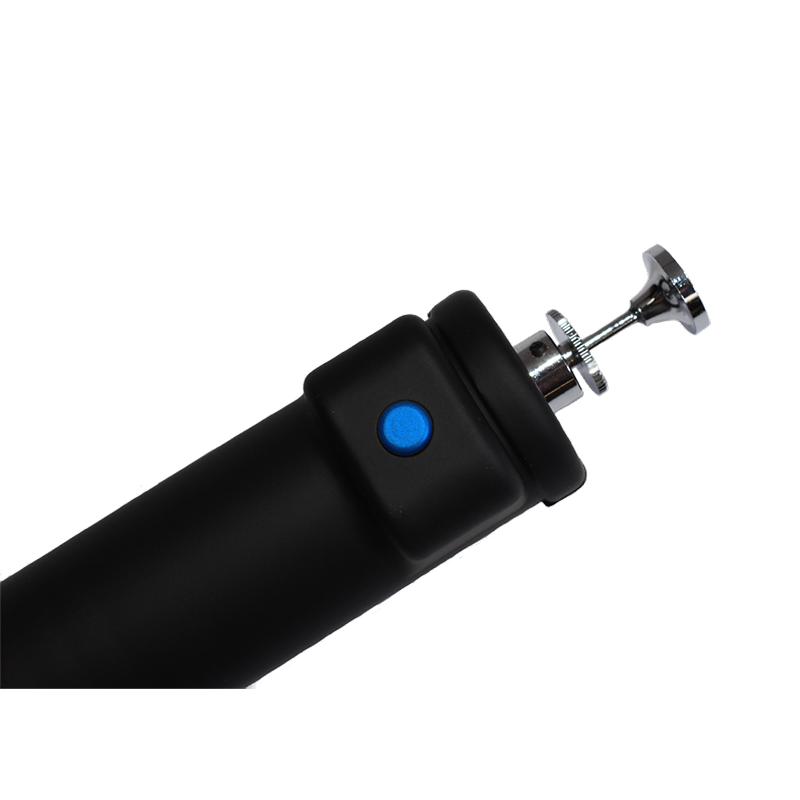

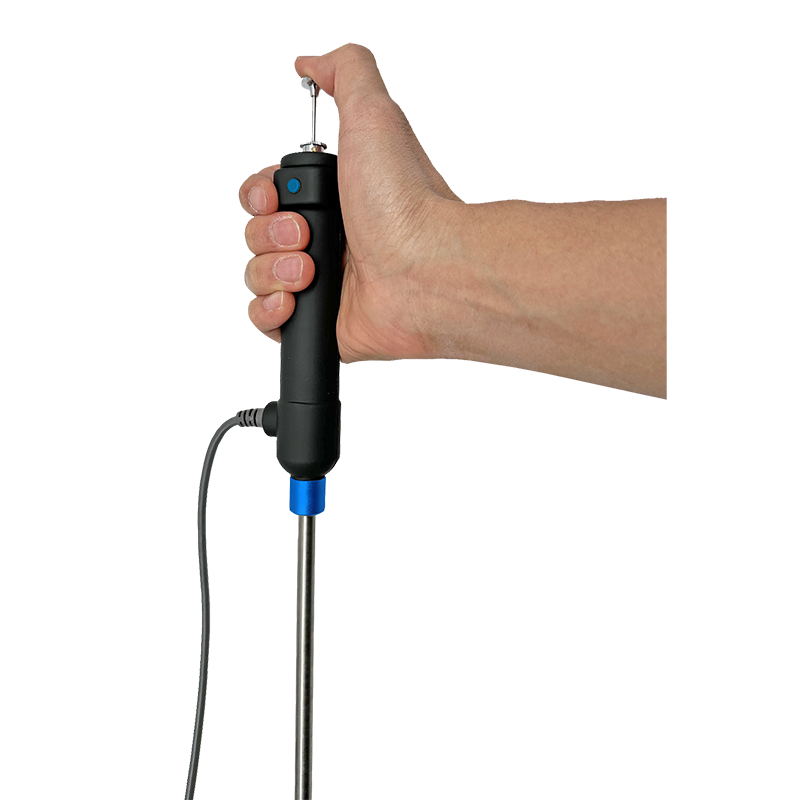

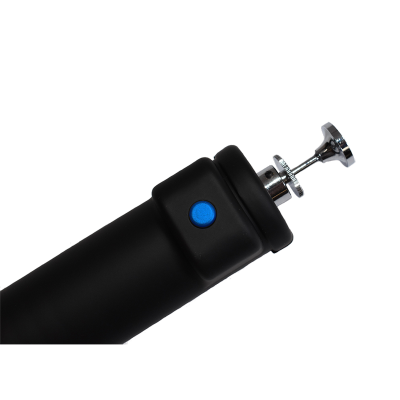

  • It's user-friendly and simple to adjust the angle; just press the release button with a thumb bend.
  • The device can bend tightly with a minimal radius of just 30mm.
  • Equipped with six built-in white LED lights for clear visibility.
  • Features a high-resolution image output thanks to its CMOS sensor.
  • Designed with a fixed focus that ranges from 0.5cm to 100cm, suitable for a wide range of distances.

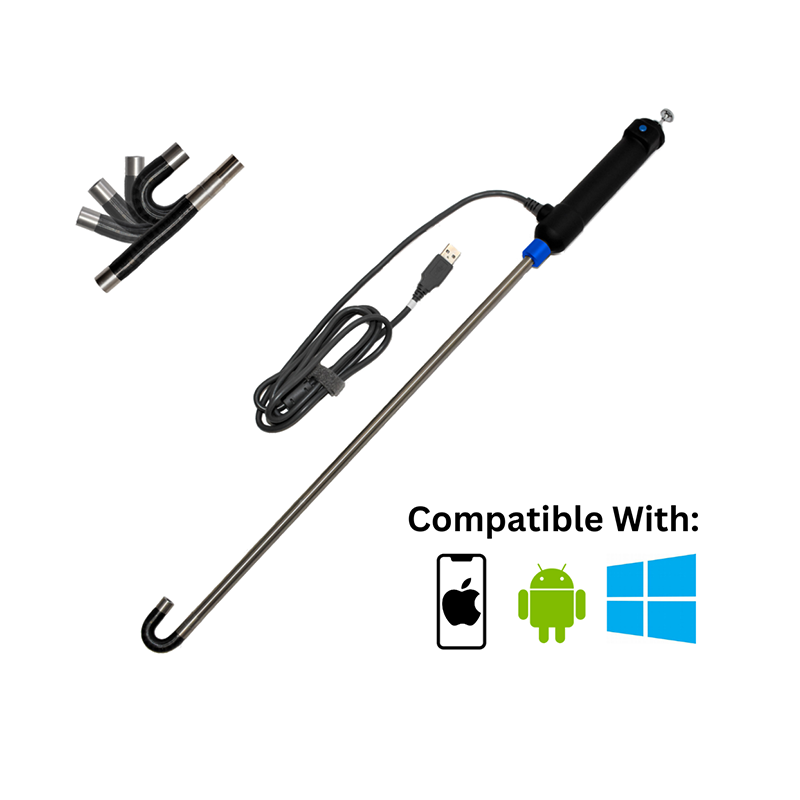

  • Powered through a USB connection, compatible with iPhones, iPads, Android devices, Windows PC.
  • * VA-400i is not compatible with MacBook computers, Chromebook and Linux systems due to lacking appropriate software. If you want to use a borescope with these systems, please choose the model, VA-400 v5.

Specifications

  • Sensor: High-quality CMOS sensor
  • Still Image Resolution: 1280x720 pixels, JPG format
  • Video Resolution: 1280x720 pixels, AVI format with a frame rate of 30FPS
  • Optical Lens View Angle: 120°
  • Focus Range: 20mm to infinity
  • Probe Diameter: 8.5mm

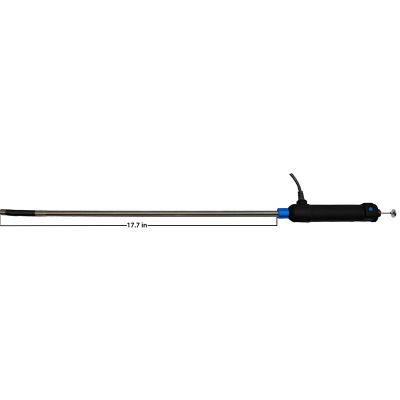

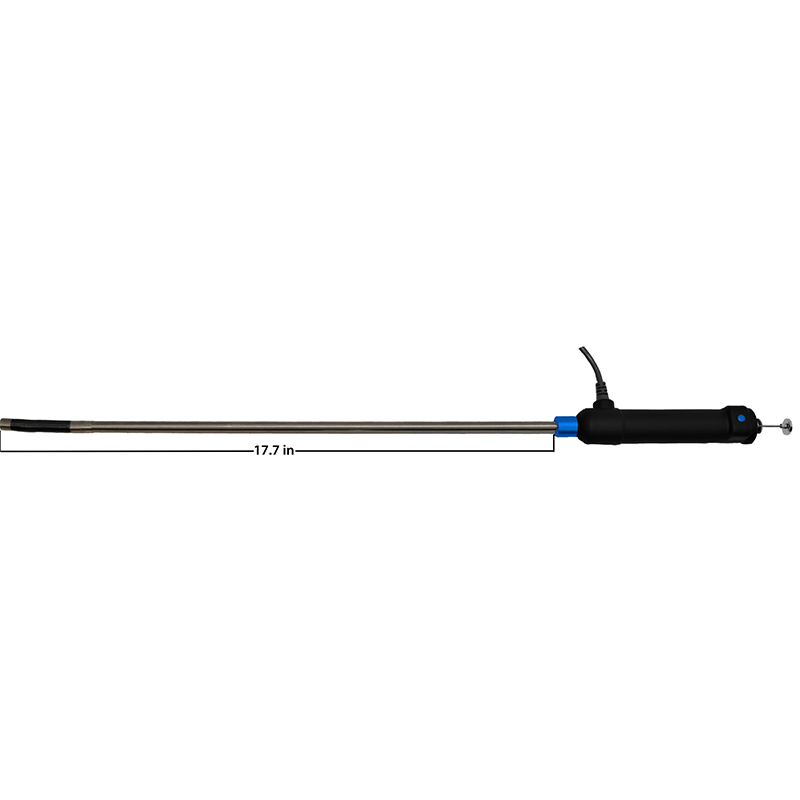

  • Probe Length: 42cm (16.5 inches)
  • PC Interface: USB 2.0
  • USB Cable Length: 200cm
  • USB Compatible Systems: Windows, iPhone/iPad, Android

In The Box

  • VA-400i borescope
  • USB adaptor for lighting
  • USB adaptor for USB-C
  • User Manual
  • ​Metal case
