Overview

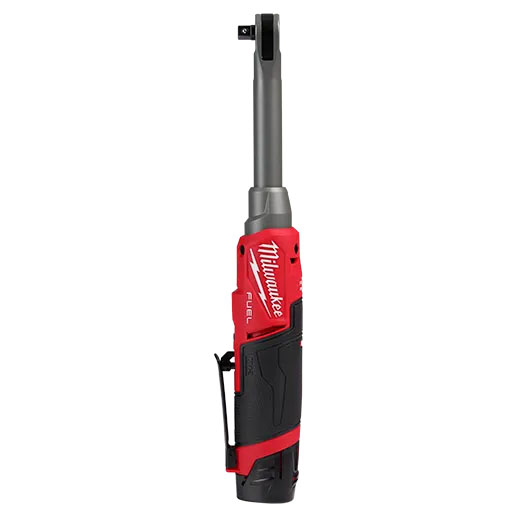

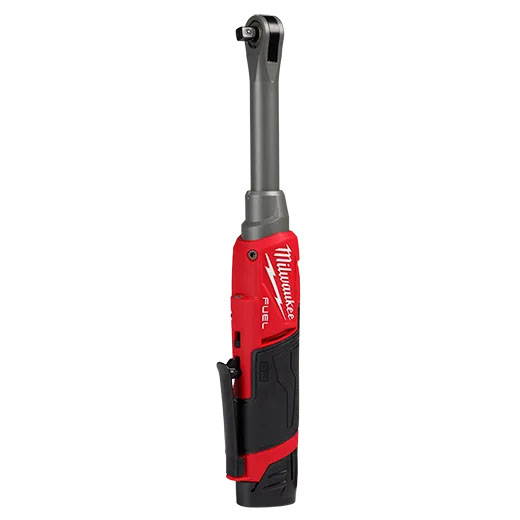

The M12 FUEL™ 3/8" Extended Reach High Speed Ratchet is the latest addition to Milwaukee's best-in-class lineup of battery-powered ratchets. These MILWAUKEE® M12 FUEL™ ratchets provide industry-leading speed with a slimmer head profile than ever before, and an extended neck that will provide the longest and most convenient reach in tight spaces. The 3/8" Ratchet provides the performance of a pneumatic ratchet with up to 35 ft-lbs max torque, the same torque output as the M12 FUEL™ High Speed Ratchets. The Extended Reach High Speed Ratchets feature an Investment Cast Steel Yoke housing and a POWERSTATE™ Brushless Motor that deliver superior durability you would expect from Milwaukee. This cordless ratchet features built-in REDLIINK™ tool technology to help users complete their tasks faster than ever before, and deliver on more jobs on a daily basis.

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• 1 - REDLITHIUM™ Battery Pack: REDLITHIUM™ Batteries last longer, think faster, and work harder than all other professional LITHIUM-ION batteries. Built to withstand the harshest environments, REDLITHIUM™ batteries deliver more work over the course of your day and over the life of the battery.
• 2 - REDLINK PLUS™ Intelligence: Milwaukee's game-changing REDLINK PLUS™ Intelligence hardware and software is the most advanced system of cordless power tool electronics. REDLINK PLUS™ Intelligence integrates full-circle communication between tool, battery and charger. REDLINK PLUS™ Intelligence is technology that all power tools crave, but only a Milwaukee¨ provides.
• 3 - POWERSTATE™ Brushless Motor: Designed, engineered and built by Milwaukee®, POWERSTATE™ is the best-in-class brushless motor that works harder and lives longer than all leading competitors. POWERSTATE™ brushless motors are ideal for professional tradesmen because they deliver more application speed, torque and durability in a smaller size.

Specifications

• Wrench Type: Extended Anvil Controlled Torque
• Extended Reach
• Anvil Type: Ball Detent
• Maximum Torque: 35 ft-lbs
• Fastening Torque: 35 ft/lbs
• Head Profile: 1.16 in
• Nut-Busting Torque: 35 ft-lbs
• Tool Warranty: 5 Year Limited Warranty
• Power Source: Cordless
• Motor Type: POWERSTATE™ Brushless
• Material Composition: Metal
• Rubber
• Length: 13.5 in
• Weight: 1.95 lb
• Height: 1.98 in
• Width: 0.76 in
• Brushless: Yes
• Battery System: M12
• Chuck Type: All Metal Ratcheting
• Chuck Size: 3/8 in
• Maximum RPM: 450 rpm
• RPM Range: 450 rpm

Benefits

• Greatest Access in Tight Spaces
• Highest Productivity at 450RPMs
• Up to 35 Ft-lbs max torque Greater durability
• Can be used manually without engaging the tool’s motor
• Variable speed metal trigger provides ultimate control of the tool
• POWERSTATE™ brushless motor delivers maximum power and long motor life (delivers up to 2X longer motor life)
• Part of the M12™ System, featuring 100+ tools

Documents

• Service Parts List (PDF)
