Combination Rivet / Rivet Nut Tool

$385.00/Each
Quantity
Add to Wishlist
Part# 12-01136
MFR Model# D100-RN

Overview

The D100-RN hand operated hydraulic tool is ideally suited to the needs of kit builders, commercial airlines, aerospace vehicle manufacturers, military aviation maintenance organizations, general aviation fixed based operators, and private aircraft fleets.

The tool provides up to 3,750 lbs of pulling force over a .625" stroke which permits the installation of all Cherry Commercial Blind Rivets or any other Pop type rivets through 1/4" diameter as well as all CherryMax rivets through 3/16" diameter. Will not pull Cherry Lock rivets. The D100-RN quickly converts to a threaded blind nut setter to allow efficient installation of Rivet nuts or similar blind nuts.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

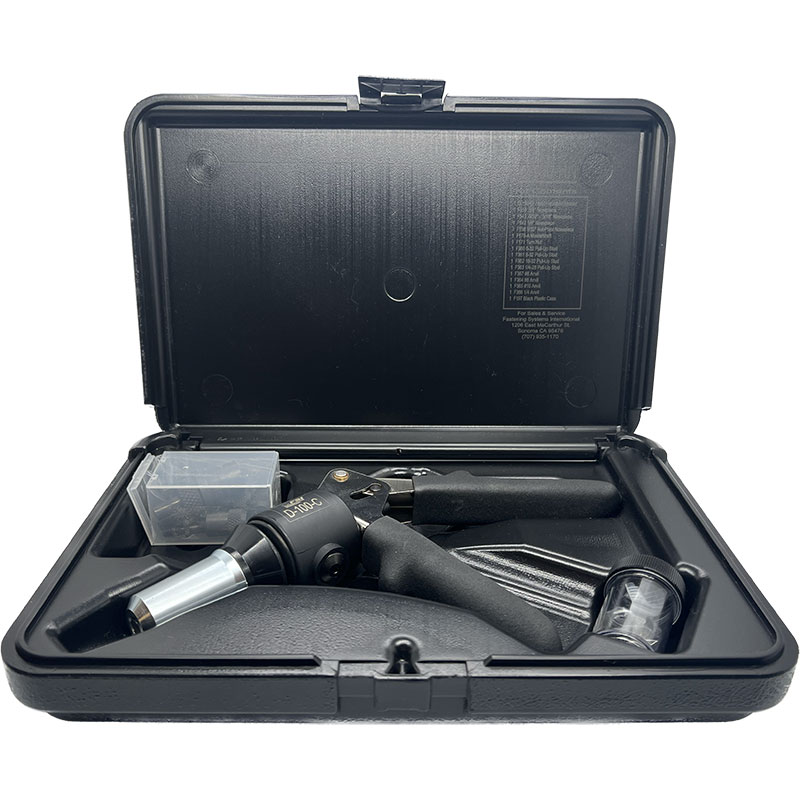

In The Box

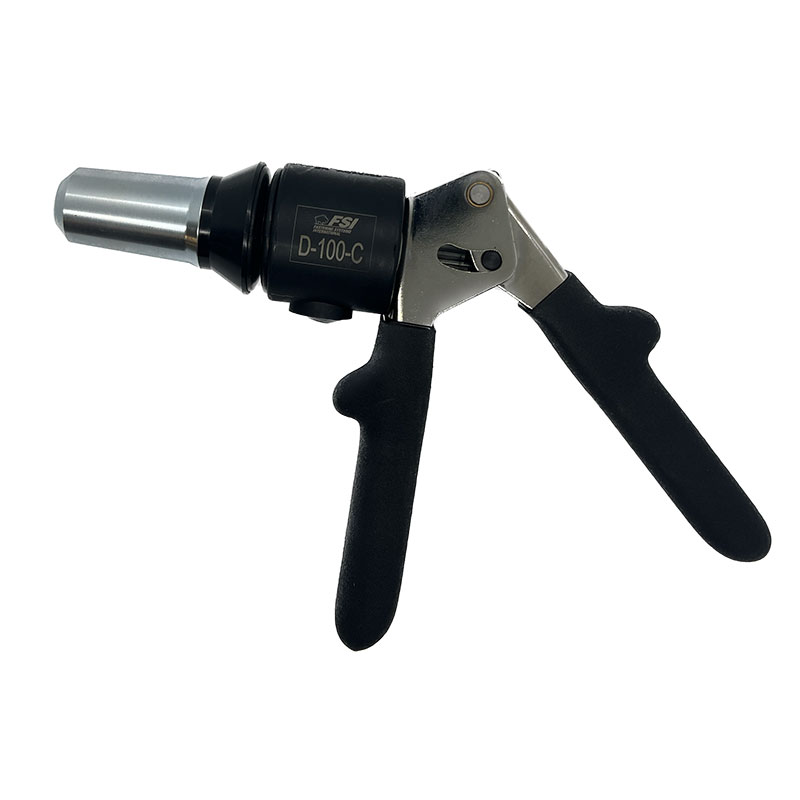

  • 1 - D-100-C Hand Hydraulic Riveter
  • 1 - F159 1/8" Nosepiece
  • 1 - F143 5/32" 3/16" Nosepiece
  • 1 - F142 1/4" Nosepiece
  • 1 - F156 3/32" Nut Plate Nosepiece
  • 1 - F170-A Mastershaft
  • 1 - F171 Turn Nut
  • 1 = F360 6-32 Pull-Up Stud
  • 1 - F361 8-32 Pull Up Stud
  • 1 - F362 10-32 Pull Up Stud
  • 1 - F363 1/4-28 Pull Up Stud
  • 1 - F367 #6 Anvil
  • 1 - F364 #8 Anvil
  • 1 - F365 #10 Anvil
  • 1 - F366 1/4" Anvil

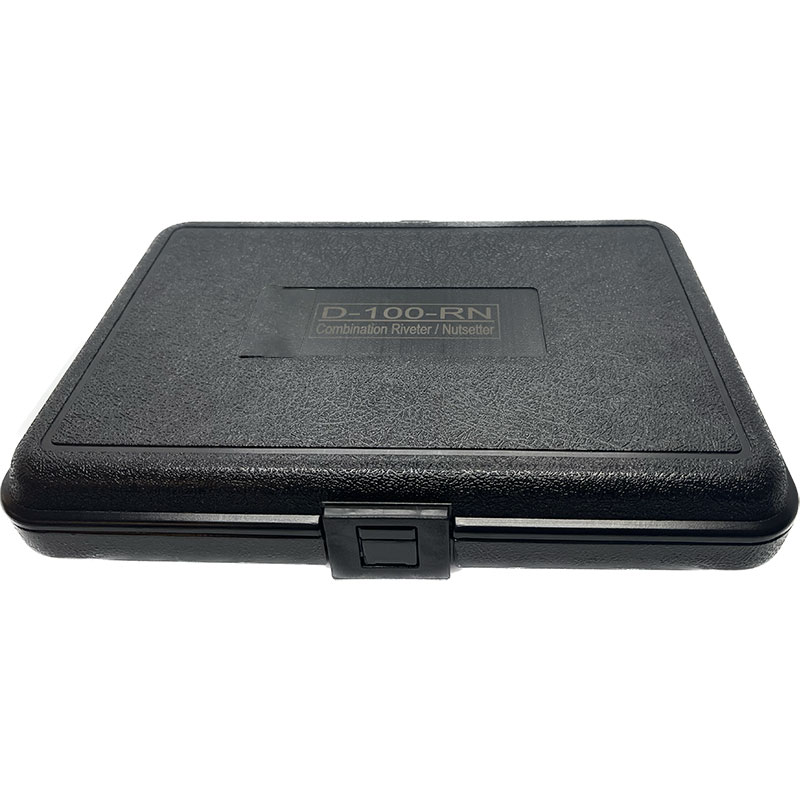

  • 1 - F197 Black Plastic Case
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Larry
July 8, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How do I get parts for my D100 kit specifically the 10/32 rivnut stem i believe the P/N is F365

We can source the F365. Please contact our sales department for current price and lead time of this item.
