- Photo may represent series and not specific product
- SHARE
Overview

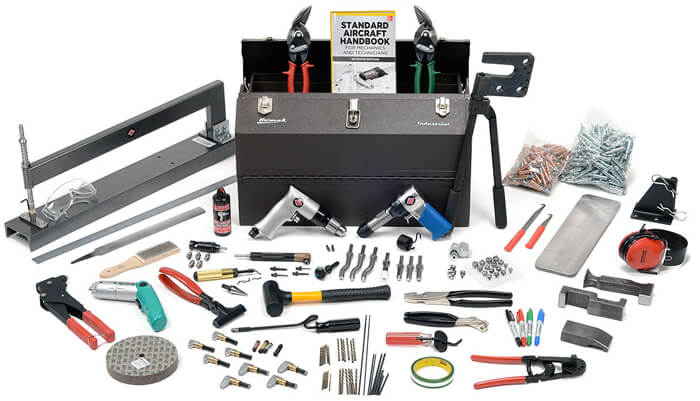

| The RV Builder’s Kit has been completely revised to conform to Van’s recommended tool list for their very popular line of RV homebuilt airplanes. It contains all of the aviation tools and equipment needed to successfully assemble Van's Aircraft RV-3/3B, RV-4, RV-6/6A, RV-8/8A, RV-9/9A, and the newer RV-7/7A and RV-10 series homebuilt airplanes. It's also an excellent toolkit to assemble the Murphy family of kitplanes, including the Rebel, Elite, Maverick, and Super Rebel; The Precision Aero Mustang S-51D; The Skystar Kitfox; and any other metal airplane. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- 101 lbs (46Kg) shipping weight.
In The Box
- 1 - 2x, 3x, 4x Or 2602a Rivet Gun
- 1 - E-Z Retainer Spring
- 1 - Swivel Air Regulator
- 1 - Swivel Flush Set (1”)
- 1 - Rivet Set (An470, 3/32”)
- 1 - Rivet Set (An470, 1/8”)
- 1 - Rivet Set (An470, 3/16”)
- 1 - Rivet Set (Dbl Ofs 3/32”)
- 1 - Rivet Set (Dbl Ofs 1/8”)
- 1 - Rivet Set (Dbl Ofs 3/16”)
- 1 - Bucking Bar (Mini)
- 1 - Bucking Bar (Anvil)
- 1 - Bucking Bar (Footed)
- 1 - Microstop Countersink
- 1 - Pilot Cutter (3/32”)
- 1 - Pilot Cutter (1/8”)
- 1 - Pilot Cutter (#6 Screw)
- 1 - Pilot Cutter (#8 Screw)
- 1 - Pilot Cutter (#10 Screw)
- 1 - Wiss Snip (Left & Str)
- 1 - Wiss Snip (Right & Str)
- 1 - Reversible Air Drill
- 1 - CobaLt Drill Bits (#40)
- 6 - Cobalt Drill Bits (#30)
- 6 - Cobalt Drill Bits (#19)
- 2 - Cobalt Drill Bits (#12)
- 2 - Cobalt Drill Bits (#21)
- 2 - 12” Cobalt Drill Bit (#40)
- 1 - 12” Cobalt Drill Bit (#30)
- 1 - Speed Deburring Tool
- 1 - Cleco Pliers
- 4 - Cleco Clamps (1/2”)
- 4 - Cleco Clamps (1”)
- 1 - Swivel Pop Riveter
- 2 - Screwdriver Bits (#2)
- 1 - Rivet Squeezer (3”)
- 1 - Squeezer Bench Mount
- 1 - Squeezer Set (1/8”)
- 1 - Squeezer Set (3/16”)
- 2 - Squeezer Set (Flush 1/2”)
- 2 - Squeezer Set (Flush 3/8”)
- 1 - Dimple Die Set (3/32)
- 1 - Dimple Die Set (1/8)
- 1 - Dimple Die Set (#8 Screw)
- 1 - Stainless Steel Rule 24”
- 1 - Unibit (1/4” - 3/4” By 1/16”)
- 1 - Permanent Markers
- 1 - 3m Cut & Polish Wheel 6”
- 1 - Hearing Protector
- 1 - Safety Glasses
- 325 - Clecos (3/32)
- 175 - Clecos (1/8)
- 1 - Deburring Set
- 1 - Edge Scraper
- 1 - Fluting Pliers
- 1 - Rivet Cutter
- 1 - Marvel Air Tool Oil
- 1 - File Card
- 1 - Dual Vixen File (10”)
- 1 - C-Frame Riveting Tool
- 1 - Drill Stop (3/32)
- 1 - Drill Stop (1/8)
- 1 - Drill Stop (5/32)
- 1 - Drill Stop (3/16)
- 1 - Angle Drill Attachment
- 1 - Cordless Screwdriver
- 1 - Threaded Cobalt Drill Bit (#40)
- 1 - Threaded Cobalt Drill Bit (#30)
- 1 - Threaded Cobalt Drill Bit (#21)
- 1 - Threaded Cobalt Drill Bit (#12)
- 1 - Back Rivet Set
- 1 - Back Rivet Plate
- 1 - Dimple Die Organizer
- 1 - 3m Riveter’s Tape
- 1 - Dead Blow Hammer
- 1 - Hand Seamer
- 1 - Aircraft Mech. Manual
- 1 - 8” Chip Chaser
- 1 - 4” Chip Chaser
- 1 - Homark 22” Tool Box
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No the squeezer included in the kit has a rotating head and uses a different style yoke.
