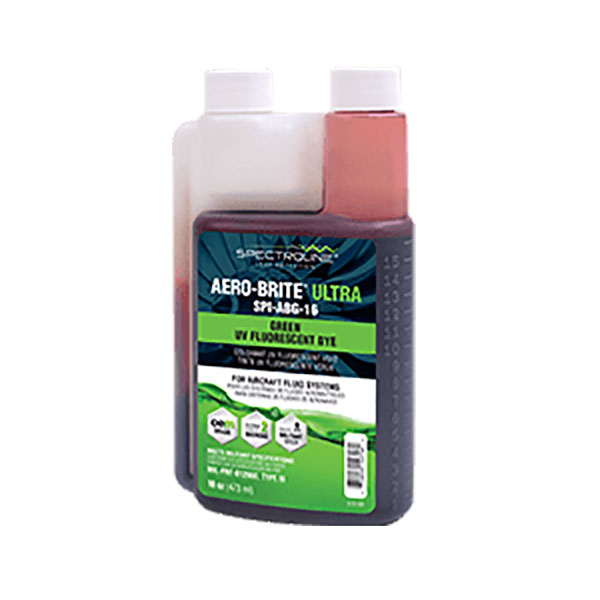

Aero-Brite Universal Green Leak Detection Dye - 16 Oz

$279.00/Each
Quantity
Add to Wishlist
Part# 13-22754
MFR Model# SPI-ABG-16

Overview

Locates all leaks in petroleum- and synthetic-based aviation fluid systems! Checks an entire system in just minutes! Ideal for use as part of a diagnostic/ preventive maintenance program for commercial and military aircraft fuel and fluid systems!

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • FAST— The quickest way to inspect for leaks in aviation fuel, lubrication and hydraulic systems.
  • SAFE — Specially formulated to accommodate the host fluid. Will not damage the fluid’s properties or any of the system’s components.
  • VERSATILE — Allows inspection of the entire system under virtually all operating conditions. Ideal for both in-flight and static testing.
  • COST EFFECTIVE — Super-concentrated. Use less per dose! Glows a bright green under UV light.

DILUTION RATIOS

SUGGESTED DILUTION RATIOS

Host Fluid

Dye Amount

Hydraulic Fluid

0.25 oz (7.4 ml) dye per
4 gals (15.1 L)

Engine Oil

0.25 oz (7.4 ml) dye per
1 gal (3.8 L)

Jet Fuel (static)

2.0 oz (59 ml) dye per
100 gals (379 L)

Jet Fuel (in-flight)

1.6 oz (47 ml) dye per
100 gals (379 L)

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Aero Brite product suitable for leak detection in a mogas fueled aircraft? what about with 100LL?

Yes, it can be used with both.

Q: Can you tell me the recommended ratios for mixing with 100LL? I checked the Aero-Brite website and did not see any information other than the Jet Fuel ratios you have listed above.

2 oz per 100 liters.
