Nicopress Swaging Tools - 64-Cgmp

$348.00/Each
Quantity
Add to Wishlist
Part# 12-02560
MFR Model# 83435-1

Overview

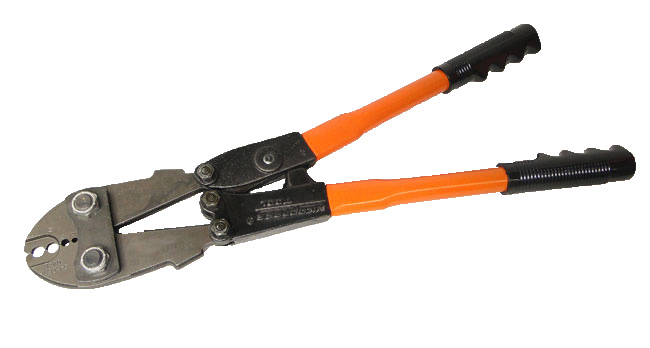

The 64-CGMP has four grooves and is used for Oval Sleeve in the range of cable sizes from 1/16" through 5/32". The "C" groove is also used for the No. 871-1-C Stop Sleeve.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

SLEEVES
SWAGING TOOLS
CABLE DIA
PLAIN COPPER
ZINC COATED COPPER
64-CGMP
63V-XMP
1/16
MS51844-42
18-1-C
MS51844-22
28-1-C
X
3/32
MS51844-43
18-2-G
MS51844-23
28-2-G
X
1/8
MS51844-44
18-3-M
MS51844-24
28-3-M
X
X
5/32
MS51844-45
18-4-P
MS51844-25
28-4-P
X
X
3/16
MS51844-46
18-6-X
MS51844-26
28-6-X
X
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good quality construction with smooth action and jaw alignment.

Gary K
May 25, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this nicopress swage tool 64-CGMP come with a go/nogo gauge? Can certs be obtained? Regarding Part # 12-02560

Yes, the Go / NoGo gauge is included in the box. Certs can be obtained and filled with order. Please request certs at time of order.

Q: The two larger size crimps are 3/16 wide jaws. The two smaller size are 3/8 wide jaws.

You are correct. The smaller sized crimps are 3/8 wide and the larger sizes are 3/16.
