Aveo Samson JP Taxi / Landing Light

Select Model:
TaxiLanding
Select Color:
Silver Red Purple Blue Black Green
Quantity
Add to Wishlist

Overview

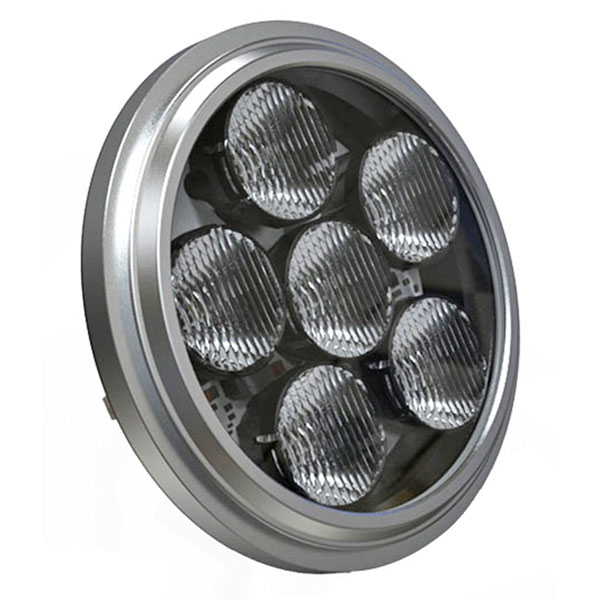

Aveo Samson JP landing and taxi lights combine high intensity and affordability. Choose from 6 anodized finishes to enhance your paint scheme. Available with either landing or taxi lenses, optimized for superior illumination.

Simple installation -- "Drop In" upgrade for legacy lights. High performance. PAR 46

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Drawing

Specifications

  • Dimensions (mm): 137.9 mm x 46.1 mm
  • Dimensions (inches): 5.429“ x 1.816“
  • Operating Voltage Range: 9 – 32 V DC
  • Input Current (at 25°C): 4.5 A @14V / 2.3 A @28V
  • Output Power: 54 W
  • Landing Lens Angle: 8° Landing
  • Taxi Lens: 28" Taxi
  • Intensity (Landing): 255.000 cd
  • Intensity (Taxi): 27.500 cd
  • Ambient Temperature: from -55°C to +85°C (from -67°F to +185°F)
  • Overheat Protection: Yes
  • Transient Voltage: 80 V max
  • Over-Voltage Lockout: +33VDC, not less
  • Reverse Polarity Protection: Yes
  • Useful Life: not less than 30,000 aircraft flight hours
  • Waterproof, Dust-proof, Vibration-proof: Yes
