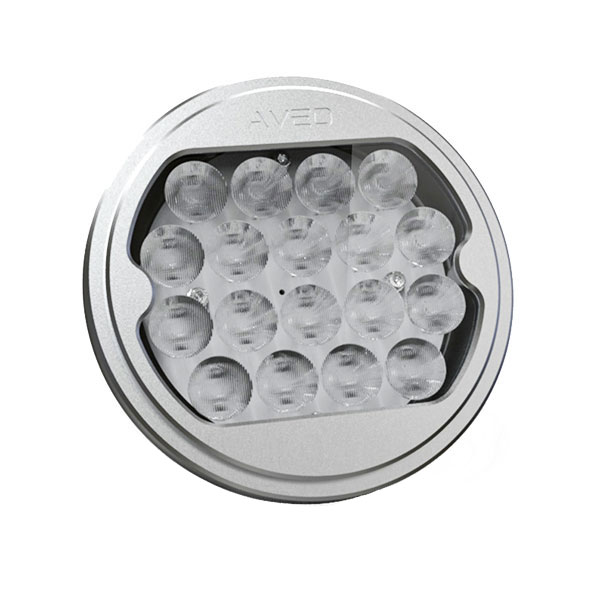

Aveo Hercules JP Taxi / Landing Light

Select Model:
TaxiLanding
Select Color:
Silver Red Purple Blue Black Green
Quantity
Add to Wishlist

Overview

Aveo Hercules JP landing and taxi lights combine high intensity and affordability. Choose from 6 anodized finishes to enhance your paint scheme. Available with either landing or taxi lenses, optimized for superior illumination.

Simple installation -- "Drop In" upgrade for legacy lights. High performance. PAR 36

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Drawing

Specifications

  • Dimensions (mm): 111.5 mm x 44 mm
  • Dimensions (inches): 4.39“ x 1.73“
  • Operating Voltage Range: 9 – 32 V DC / Input Current: 4.5 A @14V / 2.3 A @28V
  • Output Power: 54 W
  • Landing Lens Angle: 8° Landing
  • Taxi Lens: 9° x 20° Taxi
  • Intensity (Landing): 100,000 cd
  • Intensity (Taxi): 51,000 cd
  • Ambient Temperature: from -55°C to +85°C (from -67°F to +185°F)
  • Overheat Protection: Yes
  • Transient Voltage: 100 V max
  • Over-Voltage Lockout: +32VDC, not less
  • Reverse Polarity Protection: Yes
  • Useful Life: not less than 30,000 aircraft flight hours
  • Waterproof, Dust-proof, Vibration-proof: Yes

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these Aveo Hercules JP Taxi / Landing Light approved for certified aircraft?

These do not have specific certifications. Per the vendor this is a grey area and they recommend the customer contact their local FAA inspector.
