Rotax 503 | 582 Ul Magneto End Starter Parts

0 Reviews 0 Answered Questions
From $0.75 to $296.96

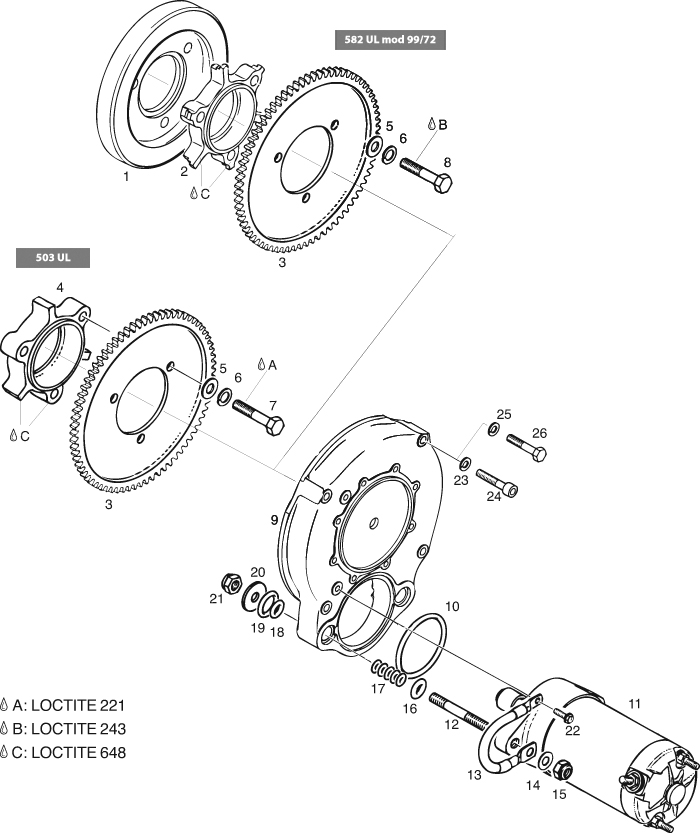

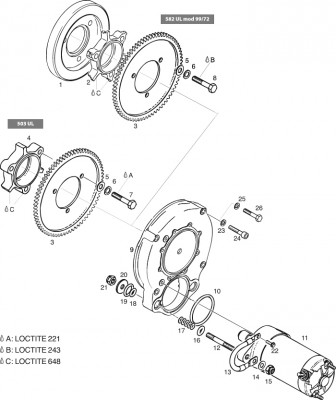

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. 503 UL Qty Req. 582 UL PN Price Buy
2852-378STARTER GEAR ADAPTER1b
15-01585
$109.55
Quantity
3834-053STARTER GEAR 61 T.,11
15-01001
$296.96
Quantity
4852-370STARTER GEAR ADAPTER1
15-01581
$109.55
Quantity
7940-490HEX.SCREW M8X353
15-03188
$0.95
Quantity
14944-038WASHER 8,4/14/111
15-03306
$3.53
Quantity
15942-030LOCK NUT M82c2c
15-03291
$1.49
Quantity
16850-585O-RING 8X522
15-01471
$2.85
Quantity
17230-260O-RING 6X31010
15-00066
$2.65
Quantity
20827-910WASHER 8,2/26,3/222
15-00875
$2.40
Quantity
24241-816ALLEN SCREW M6X40 DIN 9124
15-00189
$0.88
Quantity
26240-631HEX.SCREW M6X404
15-00151
$0.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   from engine S/N 582 UL mod. 90: 4,015.239
  • b   from beginning of serial production
  • c   tighten to leave 1mm distance between starter cover and electric starter
  • d   at 582UL mod. 90 tunil engine S/N 4.015.238 (without hydro damper assembly)


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
4
STARTER ROPE 5,5X1700 MM
1a
1a
1a
1a
*
4
STARTER ROPE 5,5X2600 MM
1b
1b
1b
1b
*
4
STARTER ROPE 5,5X3200 MM
1c
1c
1c
1c
*
4
STARTER ROPE 5,5X3700 MM
1d
1d
1d
1d
*
11,12, 15-25
N
892-800
 REWIND STARTER SET
1eg
19
N
852-630
PAWL
1
*
20
N
852-304
PAWL LOCK
1
*
22
941-935
TAPTITE SCREW M5X8
1
1
1
1
1
*
25
STARTER ROPE 5,3X2200
1e
*
25
STARTER ROPE 5,5X3700 MM
1d
*
