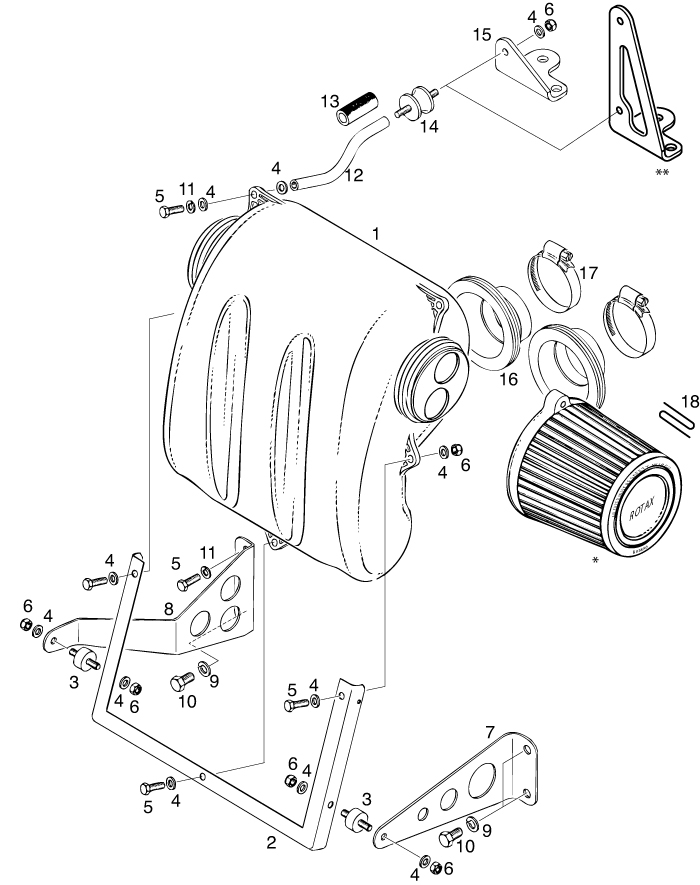

No. | Rotax Part Number | Description | Qty Req. 582 UL | PN | Price | Buy |
---|---|---|---|---|---|---|
3 | 860-700 | RUBBER 20X10XM6 | 2 | 15-01725 | $15.15 | |
4 | 244-213 | WASHER 6,4 | 13 | 15-00230 | $0.62 | |
5 | 940-563 | HEX. SCREW M6X20 | 5 | 15-03201 | $1.71 | |
7 | 953-166 | INTAKE SILENCER BRACKET MS | 1 | 15-03468 | $47.67 | |
9 | 845-382 | LOCK WASHER A8 | 3 | 15-01304 | $0.75 | |
11 | 845-381 | LOCK WASHER A6 | 2 | 15-01303 | $0.35 | |
13 | 956-236 | PROTECTION HOSE | 1 | 15-03516 | $4.23 | |
15 | 851-129 | INTAKE SILENCER BRACKET | 1 | 15-01520 | $25.65 | |
17 | 951-791 | CLAMP 50-70 | 2 | 15-03437 | $6.84 |
- Items not illustrated
