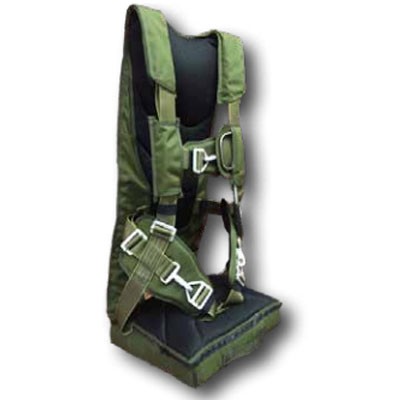

Paradigm Para-Cushion 314 RV-4 Seat

0 Reviews 0 Answered Questions
Select Type:
Standard HarnessAerobatic
Select Model:
Complete System w/ 26ft Mid-LiteHarness Container Only - 26ft Canopy
Quantity
Add to Wishlist

Overview

The Paradigm (formerly Strong Enterprises) 314 RV-4 Seat is designed to fit into the seat bottom recess in RV-4 and RV-8 aircraft with the factory cushion removed. Can be used in other aircraft in which a less rectangular shaped seat is desired.

NOTE: RV-4 Seat is not compatible with 30 FT Lo-Po

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • RV-4 Seat, measures 10" (24.5 cm) front-to-back by 15.5" (39.4 cm) side-to-side by 3.5" (8.9 cm) thick in the seat; 1.5" (3.75 cm) thick throughout the back.
  • RV-4 is designed to be used in place of the factory seat cushion. By using an additional Confor©Foam Travel Cushion tPilot height msy be customized by adding an additional 1" (2.5 cm) to 6" (15 cm).
  • Choose our Standard Harness or the Aerobatic Harness at no additional charge.
  • RV-4 Seat with Mid-Lite or Lo-Po Lite installed is limited to 254 lbs & 150 knots.

Specifications

  • Seat Dimensions:
  • 15.5" (30.5 cm)
  • 10" (40 cm)
  • 3.5" (7 cm) thick
  • Approximately 18.5 lbs (8.4 kg) w/ Mid-Lite

In The Box

  • Complete System:
  • Harness/Container
  • 26’ Mid-Lite Canopy or 30’ Lo-Po Canopy
  • Carry Bag

  • H/C only comes with:
  • Harness/Container
  • Ripcord
  • Pilot Chute Lil Grabber
  • Carrying Bag
