Bogert Universal Big Bogi 04M-Bbu

$584.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-03168
MFR Model# 04M-BBU

Overview

Feet must be ordered to attach to aircraft. See accessories for feet options.

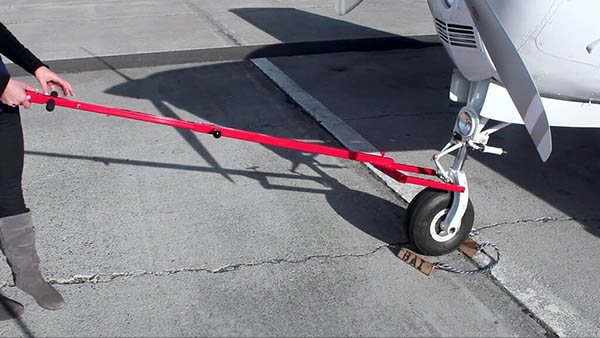

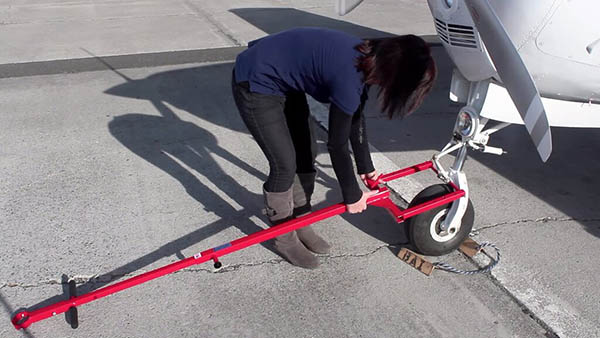

The 04M-BBU is unique because it can attach to virtually any aircraft. It has interchangeable “Feet” that can be matched to any aircraft. Each of the “Feet” typically adapts to several models or series of aircraft and several sizes can be carried right on the tow bar. This is perfect for FBO’s that deal with a variety of aircraft or aircraft owners that have more than one plane or shared hangars. “Interchangeable feet sold separately”.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • No tools required to substitute “Feet”
  • Universal Tow Bar carries up to 4 sets of “Feet” at all times.
  • Adjustable length makes it easy to hook up to a tug, golf cart, or ATV
  • Spring loaded plunger automatically locks the tow bar at the desired length.
  • Heavy duty steel construction
  • Red Powder Coated Finish.
  • Made in the USA

Benefits

  • Keeps things simple! One tow bar works on all of your aircraft.
  • Saves you money, you don’t need multiple tow bars.
  • Protects the aircraft- have the right size to fit the aircraft tow points.

"Feet" Reference Chart


Bogert
P/N
04M-BBU Feet
- For these Models
Desc.

ACS
P/N

04M-BBU-F625x2
Jabiru Sport; Kit Fox
0.625" OD x .049" x 2.0"L
12-03171
04M-BBU-F750x2875
Beechcraft—King Air, Musketeer, Sport, Super, Sierra, Sundowner, & Twin; Cessna 150, 152, 162 Skycatcher, 172, 175, 177, 182, 182XL, 205, 206, & 207; CH701 Trainer; Gulfstream American AA1 & AA5; Piper Tomahawk; Socota; Vans RV3, RV4, RV6, RV8, RV10, RV6A, RV7A, RV8A & RV9A
0.75" OD x .049" x 2.8.75"L
12-03172
04M-BBU-F750x825DL
Beechcraft Duchess; Piper 28R Series; Piper Malibu, Mirage, Meridian
0.75" OD x .188" x 8.25"L
12-03173
04M-BBU-F750x2M
Cirrus SR20 & 22 Series—Machined Foot
0.750" OD x 2.0"L
12-03174
04M-BBU-F875x275
Piper PA-22 & PA-28; PA-32 Cherokee Six (w/attachment tabs)
0.875" OD x .049" x 2.75"L
12-03175
04M-BBU-F1000x2
Aerostar 601; Bellanca-Viking; Mooney; Piper Comanche PA-24, Twin Comanche PA-30 & PA-39; Piper Cherokee Six (w/tabs broken); Piper Seneca PA-34-200/220/220T
1.0" OD x .049" x 2.0"L
12-03176
04M-BBU-F1000x2875
API; GlaStar & Sportsman; Legend Cub; Rockwell 112 & 114
1.0" OD x .049" x 2.875"L
12-03177
04M-BBU-F1125x25
Alaskan Bushwheel; Cessna XP Modification; Scott 3200 & 3400
1.125" OD x .049" x 2.5"L
12-03178
04M-BBU-F1500x2
Diamond DA-40
1.5" OD x .120" x 2.0"L
12-03179
04M-BBU-F250x2M
Diamond DA-20—Machined Foot
0.25" OD x 2.0"L
12-03180
04M-BBU-F836x2M
Cessna 172RG, 177RG, 182RG & 210 Series; Lance 400
0.836" OD x 0.625" ID x 2"L
12-03181
04M-BBU-F75x3M
Beechcraft Bonanza, 35
0.750" OD x .0.281" ID x 3"L
12-03183

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: For the Bogert Universal tow bar, what feet size do I need for a G1 SR22?

Part number 12-03174 is what you would need to order for a Cirrus.

Q: Can you push and pull with the Bogert Universal Bogi 04M-BBU?

Yes, you can.

Q: the picture shows this with the ring attachment on the end, does it come with this ring?

Per Bogert: "Yes. The customer will get their choice between the 04M-BBU-Ring and the 04M-BBU-Clevis. When you purchase the 04M-BBU you get to select one set of BBU feet and then you also get the choice between the ring or clevis. Both items are included in the price of the 04M-BBU."
