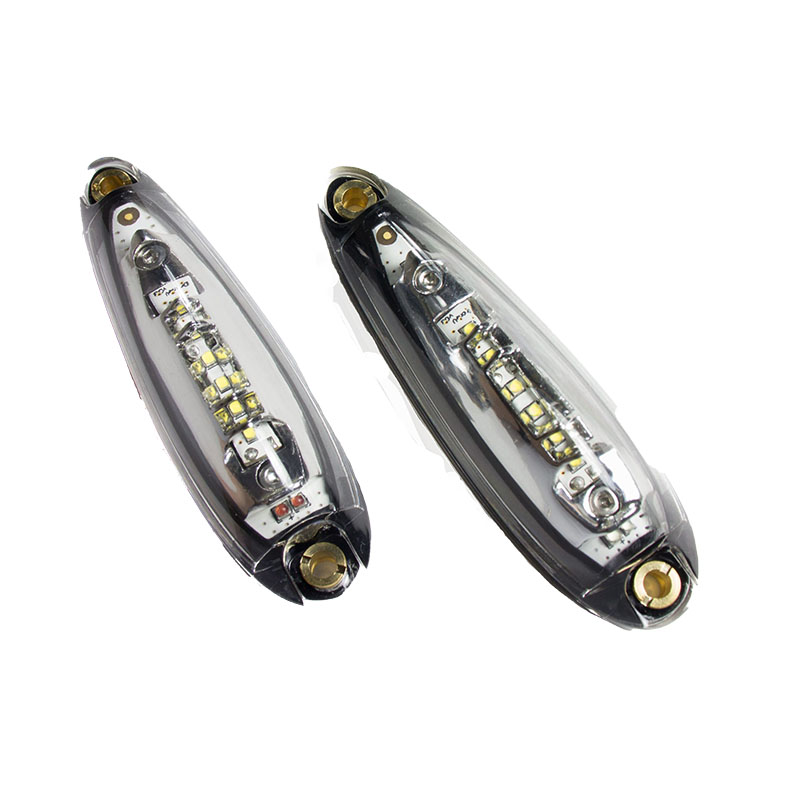

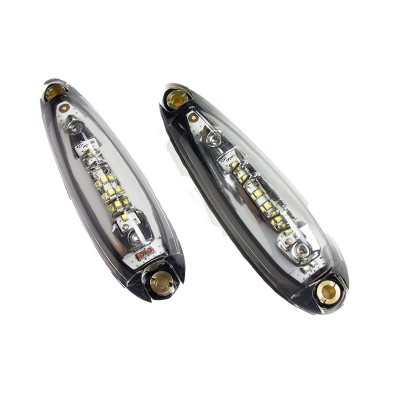

Aveo Drone V Lights (Pair) - 9-18 Volts
$530.00/Each
Part# 11-20256
MFR Model# AVE-DVPNSYR/G-D01
MFR Model# AVE-DVPNSYR/G-D01
FREE Shipping
Overview
|

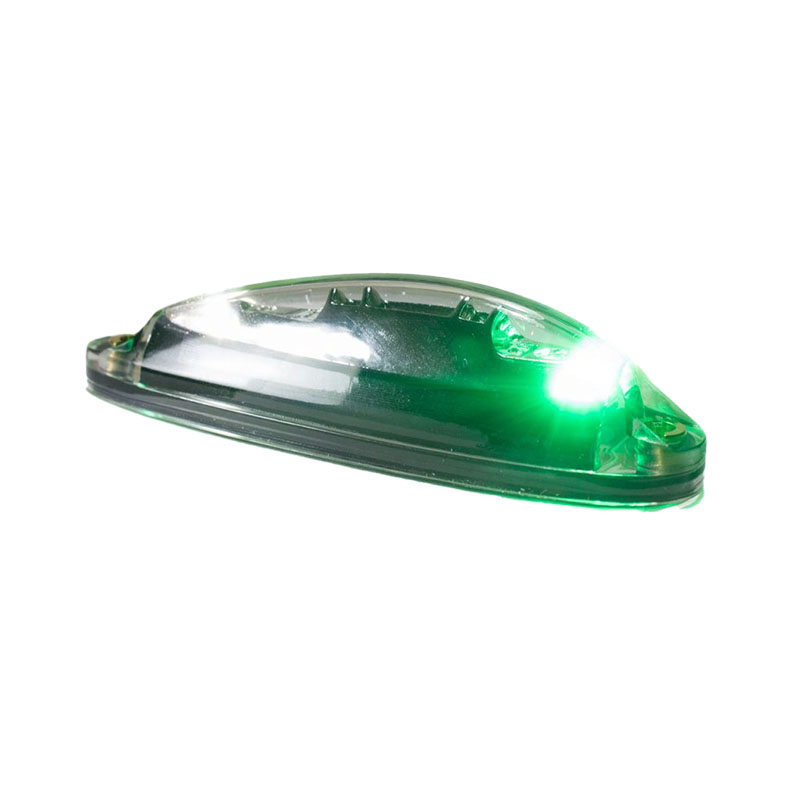

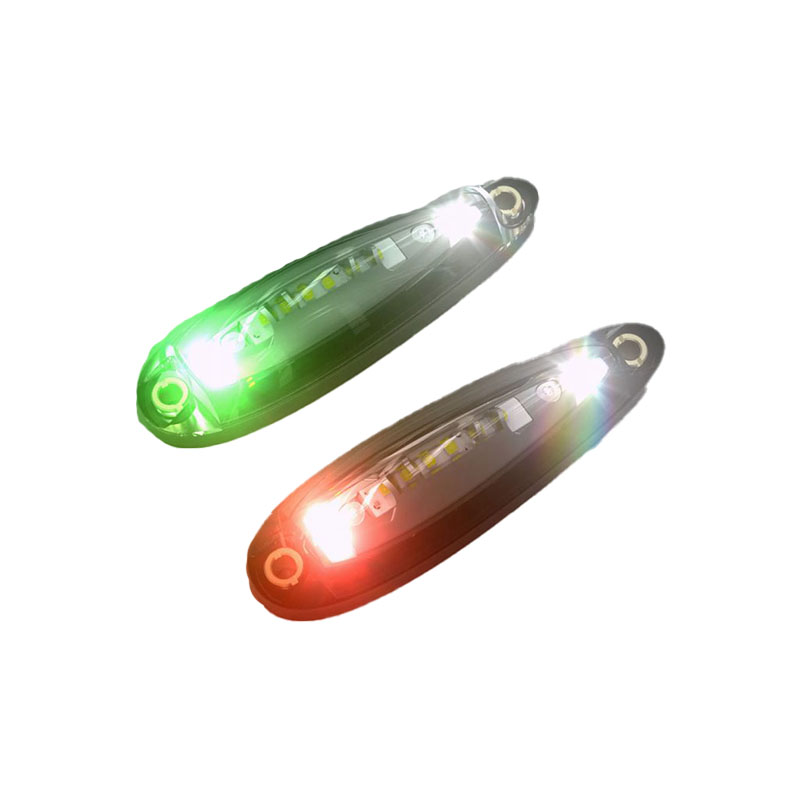

World’s Smallest, Lightest and Brightest 3-in-1 Light for UAVs and Larger Drone.

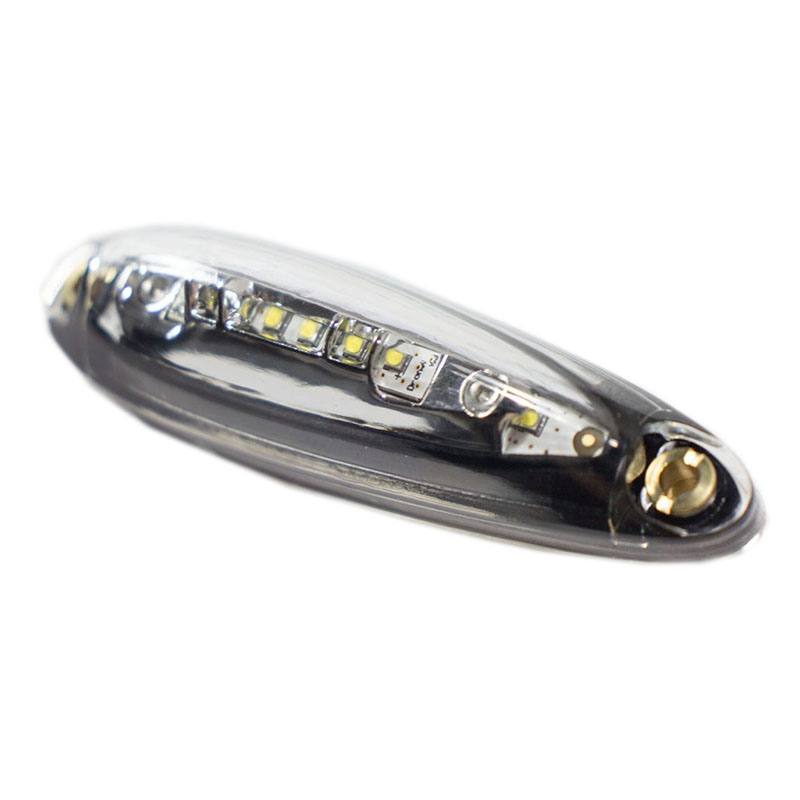

Incredibly tiny micro-circuitry featuring all the proprietary advantages of Aveo technology are packed into an extremely light aerodynamic form factor. Featuring 2019 CREE latest highest efficiency LEDs. EU Drone Compliant Note: Not approved for installation on certified aircraft. This is not a TSO certified light. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications

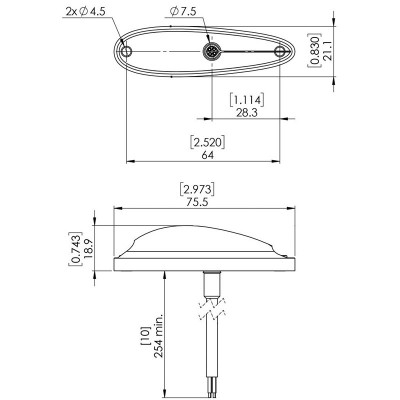

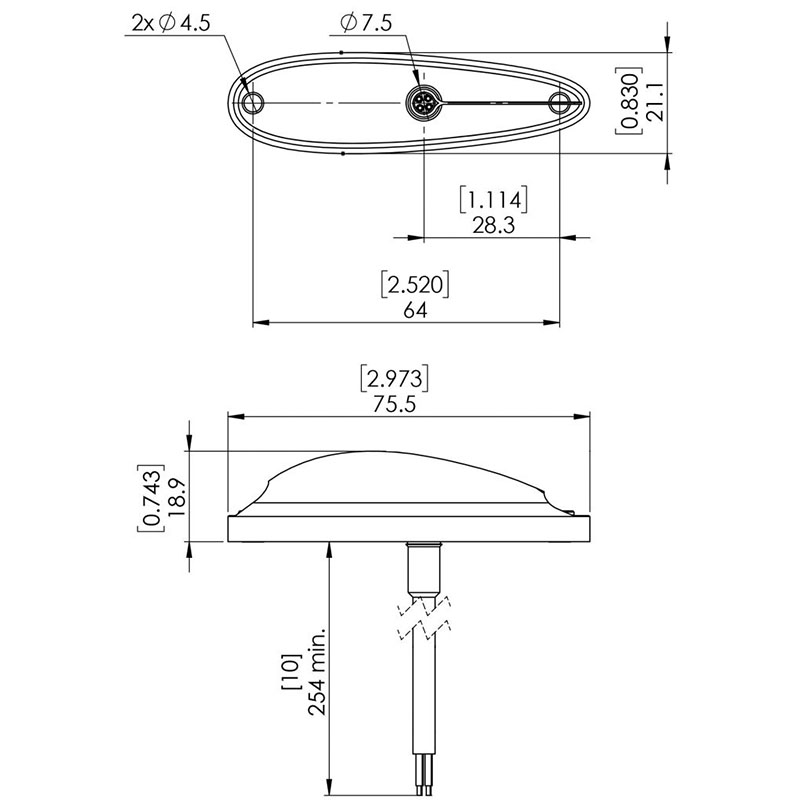

| Dimensions (mm): | 75.5 mm x 21.1 mm x 19 mm |
|---|---|
| Dimensions (inches): | 2.973” x 0.830” x 0.744” |
| Weight: | 30 g / 1.058 oz |
| Operating Voltage Range: | 9 – 18 V DC |
| Input Current – Nav/Position: | 0.2 A @14V |
| Input Current – Strobe: | 0.36 A @14V (peak) |
| Average Current Consumption per Frame – Strobe: | 0.06 A |
| Input Power - Nav/Position: | 2.8 W @14V |
| Input Power - Strobe: | 5.04 W peak |
| Repetition Rate of Strobe: | 48 cycles per minute |
| Fuse (Circuit Breaker) Recommendation: | 2.5 A for position 2.5 A for strobe |
| Operating Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Recommended Size of Mounting Screw: | M3, #6-32 |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 50V/1s |
| Under-Voltage Protection: | No |
| Over-Voltage Protection: | No |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
