MS21051L08 One Lug Anchor Nut
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Material | Part No. | Thread Size |
|---|---|---|
| All Metal | K2000-08 | 8-32 |
Overview
|

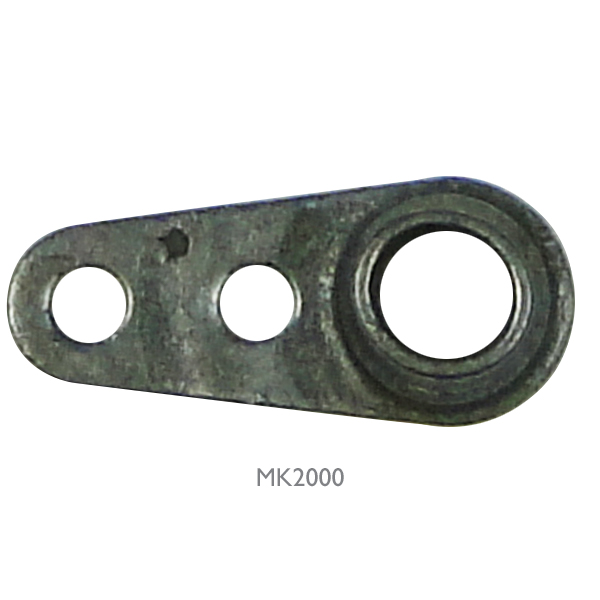

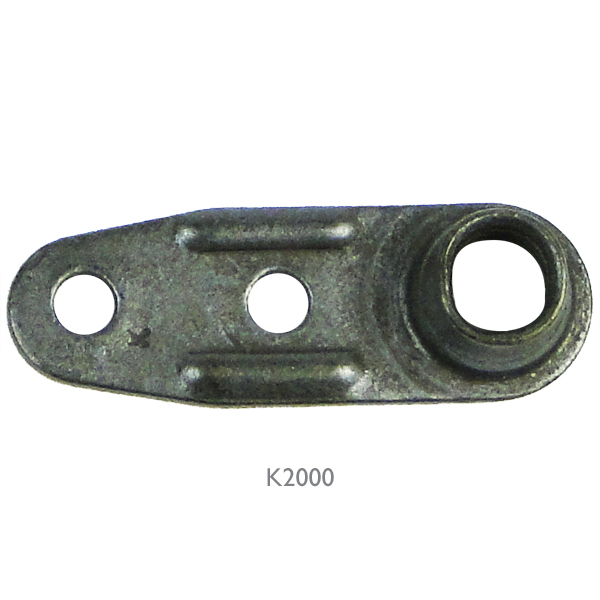

NA17 MS21080, NAS1025N K2000 MS21051, NAS682A, NAS1025A MK2000 MS21071, NAS696A Elastic-Insert Anchor Nut All Metal Anchor Nut (K1000-Full Size / MK1000-Miniature) |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Verified Purchase
MS21051L08 One Lug Anchor Nut
Great for those who screw close to the edge…
Verified Purchase
MS21051L08 One Lug Anchor Nut (Pack Of 10)
Quality nutplate. Replaced original nutplate perfectly.
Verified Purchase
MS21051L08 One Lug Anchor Nut
Verified Purchase
MS21051L08 One Lug Anchor Nut
Verified Purchase
MS21051L08 One Lug Anchor Nut
Thumbs up
Verified Purchase
MS21051L08 One Lug Anchor Nut
Verified Purchase
MS21051L08 One Lug Anchor Nut
The item is not the pictured item but is the correct one by description.
These miniature nut plates are great for applications that require a smaller footprint. The only thing to note is they are a little more difficult to install. What worked for me was to install a short machine screw to hold the nut plate with a cleco in the far end. Then, remove the cleco and use a rivet squeezer on the far end first. Remove the machine screw and install the second rivet.
Great service! Claudia went beyond normal expectations to find a source (NAS) of the one-leg anchor nut dimensions. Reasonably priced, quickly shipped.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, our part # MK2000-08 is MS21071L08 ANCHOR NUT.
K2000-4 is MS21051L4.
0.716 inches long, 0.250 inches high, and Between 0.235 inches and 0.297 inches wide.
0.935" long, .250" high, .277" wide.
