TE Connector 640929-1 PIDG Faston Tabs

$0.37/Piece
Part# 640929-1
MFR Model# 640929-1
Part No.StyleTab WidthAWGTab Thk.
640929-1A0.11016-14.020

Overview

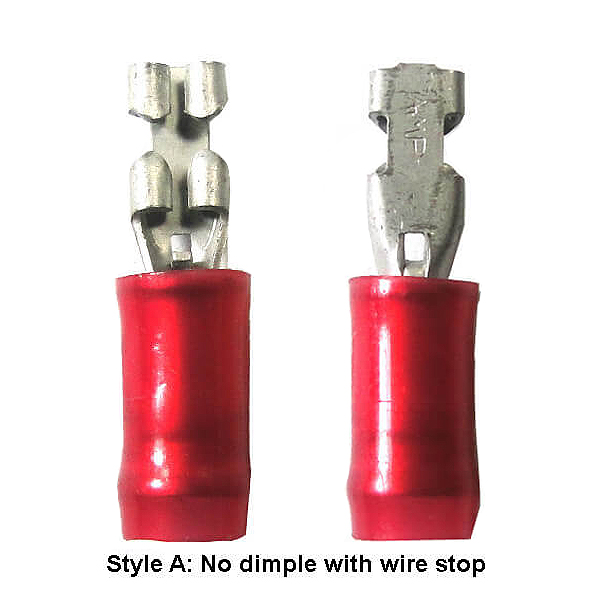

*Style A: Has no dimple with wire stop.

**Style B: Has small dimple on the backing with wire stop.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Martin G
November 5, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Where are the male counterparts to these connectors?

The male end is attached to older electronic units. We recommend using ring terminals for modern avionics.

Q: you have dimple and no dimple... what is the purpose or function of the dimple?

The dimple would make the connection a little more secure. It puts a little pressure on the tab when the two ends are put together.

Q: What is tab width and tab thickness for part # 640903-1?

tab width: .250 | tab thickness: .032
