Part No. | Style | Tab Width | AWG | Tab Thk. |
---|---|---|---|---|
42844-1 | B | 0.250 | 14-12 | .032 |
*Style A: Has no dimple with wire stop.

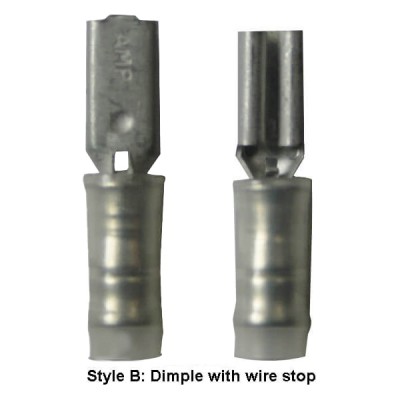

**Style B: Has small dimple on the backing with wire stop. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The male end is attached to older electronic units. We recommend using ring terminals for modern avionics.
The dimple would make the connection a little more secure. It puts a little pressure on the tab when the two ends are put together.
tab width: .250 | tab thickness: .032
