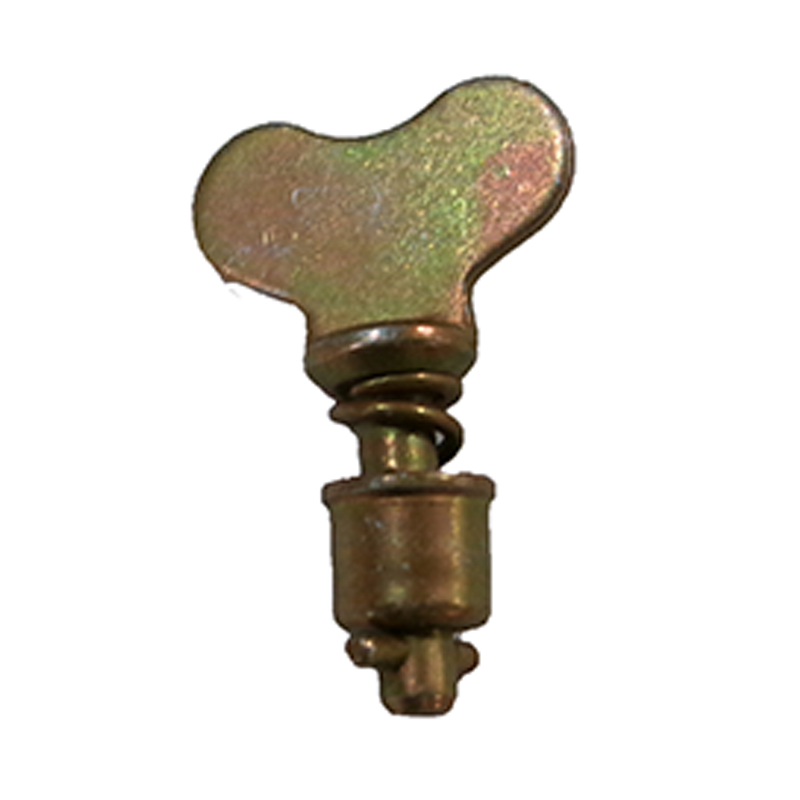

4002-6W Camloc Cadmium Wing Stud

13 Reviews 1 Answered Question
$25.75/Piece
Quantity
Add to Wishlist View More In This Series →
Part# 4002-6W
MFR Model# 4002-6W
TypeDash No.PN
Cad Plated Wing Stud-64002-6W

Overview

To select the proper length stud, first select the grommet, for example 4002-G. Next, select the receptacle, such as 214-16. After determining the total grip thickness, use the grommet column under which the selected grommet and receptacle appear. Use the dash number which appears opposite the determined total grip thickness.

Example: If the total determined grip thickness “G” was. 144, the stud dash number for the above 4002-G grommet and 214-16 receptacle would be -4. The stud part number would be 4002-4.

Total Grip Thickness Range "G"
Stud Dash Number
4002-G Grommet & 214-16 Receptacle
4002-N, 4002-0 Grommet & 214-16 Receptacle
.021-.050
--*
-1
.055-.080
--*
-2
.081-.110
-2*
-3
.111-.140
-3
-4
.141-.170
-4
-5
.171-.200
-5
-6
.201-.230
-6
-7
.231-.260
-7
-8
.261-.290
-8
-9
.291-.320
-9
-10
.321-350
-10
-11
.351-380
-11
-12
.381-.410
-12
-13
.411-.440
-13
-14
.411-.470
-14
-15
.471-.500
-15
-16
.501-.530
-16
-17
.531-.560
-17
-
*4002-G grommet requires .090" minimum grip.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Drawing & Specs


4002 CAP PLATED SLOTTED
Dash Number
Total Panel Thickness
L
S
C
Part Number
-2
.051-.080
.413-.423
.69
.220
4002-2
-3
.081-.110
.443-.453
.72
.257
4002-3
-4
.111-.140
.473-.483
.75
.257
4002-4
-5
.141-.170
.503-.513
.78
.292
4002-5
-6
.171-200
.533-.543
.81
.322
4002-6
-7
.201-.230
.563-.573
.84
.352
4002-7
-8
.231-.260
.593-.603
.87
.382
4002-8

4002 STAINLESS STEEL SLOTTED
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
4002-2S
-3
.081-.110
.443-.453
.72
.257
4002-3S
-4
.111-.140
.473-.483
.75
.257
4002-4S
-5
.141-.170
.503-.513
.78
.292
4002-5S
-6
.171-200
.533-.543
.81
.322
4002-6S
-7
.201-.230
.563-.573
.84
.352
4002-7S
-8
.231-.260
.593-.603
.87
.382
4002-8S
-9
.261-.290
.623-.633
.90
.412
4002-9S

4002 CAD PLATED PHILLIPS
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
40S5-2
-3
.081-.110
.443-.453
.72
.257
40S5-3
-4
.111-.140
.473-.483
.75
.257
40S5-4
-5
.141-.170
.503-.513
.78
.292
40S5-5
-6
.171-200
.533-.543
.81
.322
40S5-6
-7
.201-.230
.563-.573
.84
.352
40S5-7
-8
.231-.260
.593-.603
.87
.382
40S5-8
-9
.261-.290
.623-.633
.90
.412
40S5-9

STAINLESS STEEL PHILLIPS
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
40S5-2S
-3
.081-.110
.443-.453
.72
.257
40S5-3S
-4
.111-.140
.473-.483
.75
.257
40S5-4S
-5
.141-.170
.503-.513
.78
.292
40S5-5S
-6
.171-200
.533-.543
.81
.322
40S5-6S
-7
.201-.230
.563-.573
.84
.352
40S5-7S
-8
.231-.260
.593-.603
.87
.382
40S5-8S
-9
.261-.290
.623-.633
.90
.412
40S5-9S
-10
.291-.320
.653-.663
.93
.442
40S5-10S

CAD PLATED WING STUD
Dash Number
S
Part Num.
-2
.69
4002-2W
-3
.72
4002-3W
-4
.75
4002-4W
-5
.78
4002-5W
-6
.81
4002-6W
-8
.87
4002-8W
-9
.90
4002-9W
-10
.93
4002-10W

-11

.96
4002-11W
-12
.99
4002-12W
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Camloc parts are always great

Richard H Verified Purchase

4002-6W Camloc Cadmium Wing Stud
August 6, 2021

Very fast response and delivery of product.

Matt
March 5, 2021

Good quality. Work as advertised.

Ned S
July 27, 2020

Great product.

Dimitar B
April 26, 2020

The GAMI GPS antenna is an approved antenna for ADS-B or other Aviation uses. C-190 and recommended by the ADS-B in and out manufacturer I used. In testing the antenna works very well

Ron
November 28, 2019

As expected, on time, and the right part

Anthony J
November 25, 2019

Exactly what I needed.

Don
September 23, 2019

Rocket A
November 24, 2017

Rocket A
November 24, 2017

Gilbert D
June 2, 2017

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Camlock grip thickness? How is this defined? Is this the thickness of the Panel that the stud is in plus the thickness of the panel that has the receptacle?

The grip for 4000 series studs is determined by the the grommet being used and both the stud & receptacle panel thicknesses. If you are using a flush grommet, the grip is just the two panel thicknesses, but if you are using a plus flush grommet, you need to add .054" for the 4002-N3, or .029" for the other plus flush grommets to get the grip thickness.
