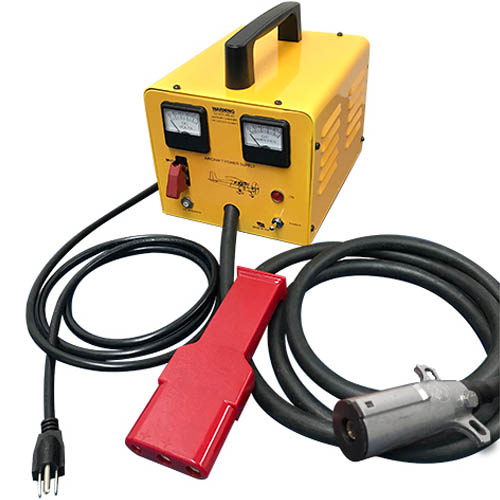

- Photo may represent series and not specific product
- SHARE
DB Assembly R-14/28-25P Auxiliary Power Unit (APU) Power Supply With Cessna 3-Pin & Piper Plug
MFR Model# R-14/28-25P
FREE Shipping
Overview
|
The D B Assembly, Inc R-14/28-25 APU is designed to operate avionics equipment in private and commercial aircraft.
The R-14/28-25 will output 14 or 28 volts DC at up to 25 amperes. The voltage is filtered to eliminate hum and is regulated against input AC line voltage changes. The output DC voltage and current are displayed on front panel meters. The DC is also protected by a circuit breaker. Selection of output voltage is by a front panel switch, which is protected by a switch guard. Closing the guard forces the switch to the 14-volt position. The RB-14/28-25 plugs directly into the APU receptacle on the aircraft. It comes equipped with either the standard three-prong connector or the Piper coaxial connector. Both connectors can be supplied, optionally at a slight extra cost. DC cable length is 8'. The AC line cord is normally 8' in length, but special lengths up to 50' are available. The housing is steel, powder coated in red, for optimum flight line safety. Rubber feet and handle are included. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- AC Line Voltage: 115v, 60 Hz.
- AC Current Drain: 7 amperes maximum
- DC Output: 14 or 28 volts, up to 25 amperes.
- Portable, weight only 35 lb. (16 Kg)
- Maximum Size: 10" x 8" x 8" (25 x 20 x 20 cm)
- Warranty: one year from date of purchase
- Regulations: 13.75V ± 1.5v. / 27.5V ± 2.5v.
Reviews
They are back! They are yellow now. This unit arrived with the cessna and piper plugs, 14v and 28v operation. We needed a second unit for power, these supplies are perfect for our operations.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No this is just a power supply, it cannot start aircraft.
No, this is meant as an aux power unit only. It is not designed to properly charge the battery.
This only has the 3 pin, cessna style plug.
It comes equipped with either the standard three-prong connector or the Piper coaxial connector. Both connectors can be supplied, optionally at a slight extra cost.
