AeroLEDs Pulsar Navigation / Strobe / Position Light Pair FAA TSO 24V

$1250.00/Each
Part# 11-15568
MFR Model# 11-1100-24

Overview

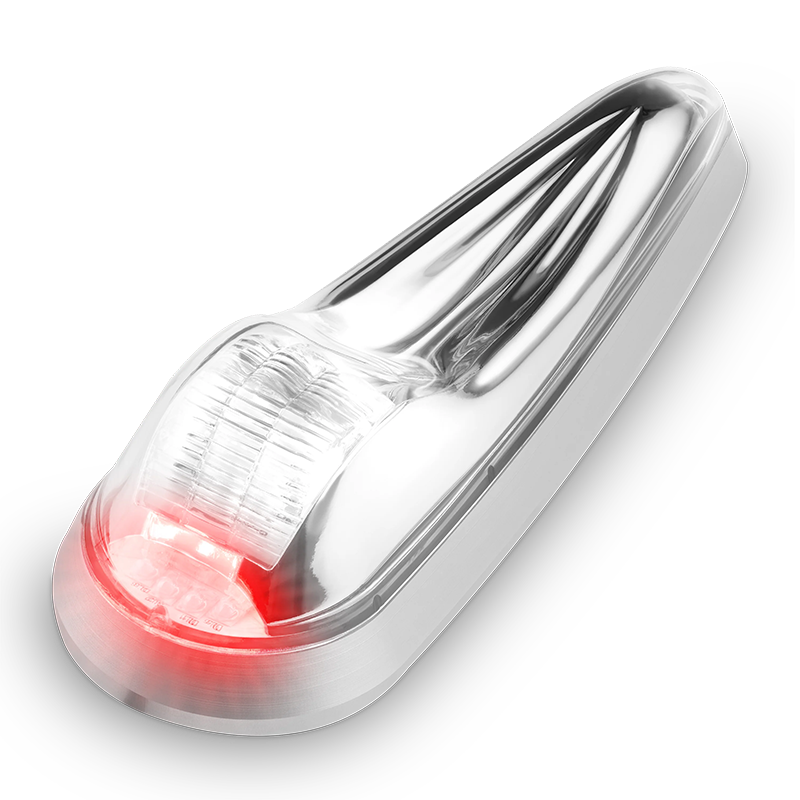

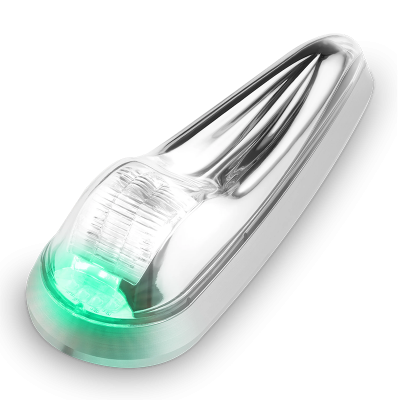

The Pulsar 660 wingtip lights are designed to be installed on the wingtips of an aircraft where the navigation (red and green) and position (white) lights can be seen to determine the direction of the aircraft.

TSO Certified: TSO-C30c Type I, Type II, and Type III and TSO-C96a Class II approved.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 8 oz per paid (4 oz per light)
  • Length: 5.6"
  • Width: 1.82"
  • Depth: 1.38"
  • Strobe Power Supply: Build in
  • Strobe Synchronization: Built In
  • Thermal Protection: Built In
  • LED Count: 48 combined
  • Lens Material: Polycarbonate
  • Mounting: Bracket with set screw
  • MTBF: >30,000 Hours
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Easy install and the mounting bracket fit the existing 90340 holes perfectly. The overall size is slightly smaller at the rear than the 90340 that was removed, so touchup paint on the wing tip was needed to cover the difference.

Kevin G Verified Purchase

AeroLEDs Pulsar Navigation / Strobe / Position Light Pair FAA TSO 24V

January 12, 2022

Easy to mount. Nice looking lights. I wish the strobes had two quick flashes instead of one though.

Dennis
April 17, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these AeroLeds Pulsar Nav / Strobe / Position Lights sold in pairs? Can I install them on a certified aircraft?

Yes, they are sold in pairs. Currently, they CANNOT be installed in certified aircraft without a Form 337 field approval. (as of 10/1/13)

Q: Does the PULSAR-NS90 come with the mounting kit? If not, do you have the mounting kit?

Yes, the mounting kit is included.

Q: Regarding part # 11-14633: Does it come with two 25 ft harnesses (one for each strobe)?

Yes, there will be two 25 ft harnesses included, one for each strobe.

Q: What is the AeroLEDs Pulsar warranty?

5 years from date of purchase.
