NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

$54.85/Each
Part# 11-12986
MFR Model# AC-RS-45W

Overview

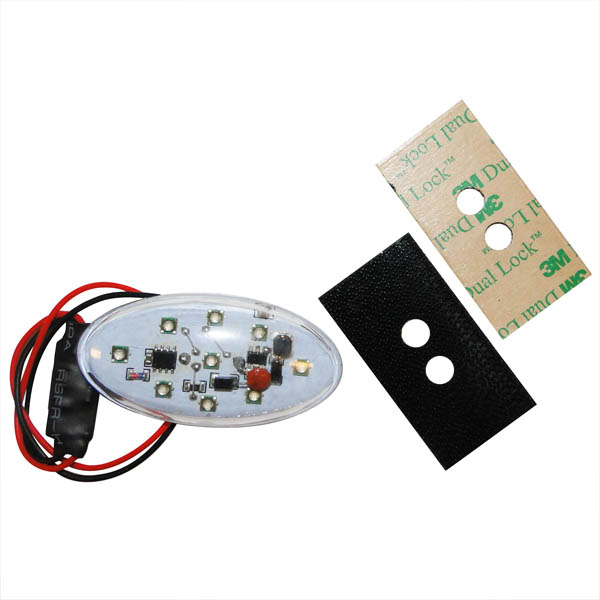

Aircraft Anti-Collision Strobe Light, 45w, 1350 LM CREE LEDs

  • Emitter Type: LED
  • Total Emitters: 9 x 5w
  • Power: 45W Equivalent
  • Rated Voltage: 10-15VDC
  • Draws <280ma @ 14.2VDC
  • Luminous Flux: 1350 LM/108cdl
  • 1 mode: fast strobe (100ms)
  • Base Type: 12"/30cm twin leads
  • Application: Aircraft Anti-Collision Strobe Light
  • Non-PMA'd
  • Contains 1 light bulb per pack
Dimensions: 2.7 in x 1.2 in (60 mm x 30 mm)
Weight: 0.28 oz (8 g)

Installation: 1- Clean surfaces with alcohol. 2- Apply adhesive tape 3- Let stand for 24 hours.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I fly remote control turbine jet , n love this lights during daylight n dawn . Great lights.

Miguel B Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

April 9, 2024

I fly remote control turbine jet. This lights r amazing 12v

Miguel B Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

February 3, 2024

Garnet W Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

January 25, 2024

***********

Jose C Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

March 15, 2023

Excellent value for money strobes that are very bright and simple to fit as a replacement.

Steve P Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

February 14, 2023

Great product. Easy to install, amazing brightness for such a small piece

John J Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

January 26, 2023

David T Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

December 4, 2022

This is such a cool strobe. It is blinding. It weighs mere grams. But is so incredibly bright. No bulky power units. Just simply amazing.

Thomas C Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

January 4, 2022

Nice small light weight beacon I want on my RV for night oops around the ramp when strobes aren’t warranted

Gerry S Verified Purchase

NavStrobe Anti-Collsion Red Strobe Light 45W 1350 Leds

January 1, 2022

I have spots in my eyes from testing! These are WAY brighter than expected! They flash 3 times per second, with about a 1/2 second pause. No, they can not be synchronized, but that will not be a problem. They are also smaller in thickness than I expected, and this is a good thing. I purchased the Red, Green and one White. Measured the current draw at about 670 milliamps each, which is right about where they should be. Perfect for experimental and ultralight aircraft!

Peter T
December 31, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this strobe need a separate power supply?

It does not, It will work with any DC source that is 10-15VDC.

Q: Where on the aircraft is this intended to be installed?

This is not an FAA/PMA approved unit and should be installed where the builder feels would work best as an anti-collision strobe.

Q: Does the Aircraft Anti-Collision Strobe light 45W 1350LM- CREE LEDS come with a transparent cover as part of the kit?

The transparent cover is included.

Q: Will this Aircraft Anti-Collision Strobe Light work as an anti-collision light for certified aircraft?

This is not an FAA/PMA approved unit and is designed for experimental aircraft.

Q: Will they hook up to flash together in sequence? Do they flash in color or is the a red or green LED light with flashing white strobe?

These anti-collision lights are timed independently. Sometimes they will synchronize, but only by chance. They are one color per light, that flash together.

Q: Regarding the Aircraft Anti-Collision Strobe Light 45W 1350LM - CREE LEDS: What are the angles of effective viewing in both axes? Also, what is the approximate flash rate?

The effective viewing angle on the horizontal plane is 120 degrees off vertical with reference to the PCB. The flash rate is 25ms (40/s).

Q: What is the visible range of this unit?

Per the supplier: We have not done any engineering measurements of that nature, since the FAA only wants to know the light output in candlepower or lumens (1350 lumens). Only the coast guard does those type of measurements.

Q: How many lumens if using the red LEDs. Is brightness diminished?

The red LEDs have 1300 lumens. Brightness is slightly less than the white.

Q: Do the reds and greens have a constant on red or green and also flash white strobe?

Each assembly is one color, red, green, or white, and flash only.

Q: What are the dimensions of this Aircraft Anti-collision strobe light 45w 1350LM CREE?

The unit is 2.37" long, 1.20" wide, and .39" tall.
