Black Expandable Slv 3/32-1/8
MFR Model# XPF-1/8
FREE Shipping
- JUMP TO
- Overview
- Tech Data
- Reviews
- Q&A
- View in Catalog
| Description | Nominal ID In/mm | Bundle Size Range Minimum - Maximum In/mm | PN |
|---|---|---|---|
| Ico-Flex Expandable Sleeve XPF 1/8 | .125 / 3.18 | .094-0.125 / 2.38-3.18 | 11-12352 |
Overview
|

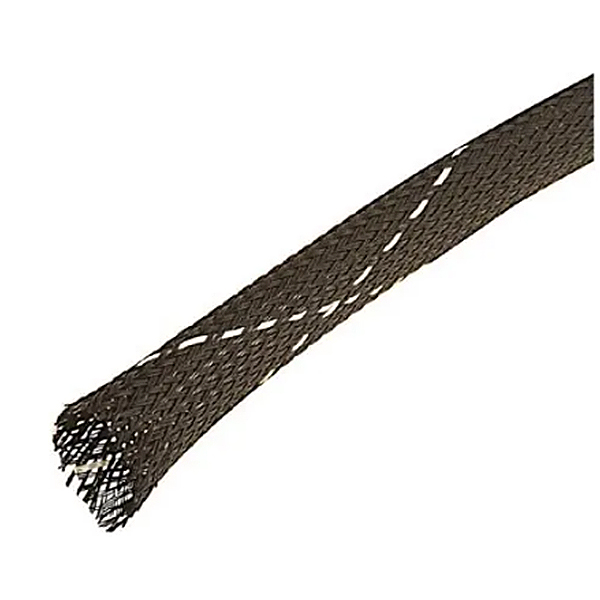

ICO-FLEX™ XPF is flame retardant & light weight, self-fitting, monofilament sleevings designed to encapsulate and protect cable bundles and wire assemblies. These expandable sleevings adjust to irregular surfaces and contours, providing abrasion resistance and protection with a minimum of bulk and weight.
UL File Number: E142828 Operating Temp. Range: -94°F (-70°C) to 250°F (125°C) Flammability: VW-1 Standard Colors: Black Sold Per Foot |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Tech Data
- Tech Data Sheet (PDF)
Reviews
pretty small--but 1/8 inch
Verified Purchase
Black Expandable Slv 3/32-1/8
Excellent in combination with environmental splices and marine heat shrink to repair older wiring.
Verified Purchase
Black Expandable Slv 3/32-1/8
Verified Purchase
Black Expandable Slv 3/32-1/8
Great product
Verified Purchase
Black Expandable Slv 3/32-1/8
Really like this product. I bought it for wire bundles but also used it to cover some exposed tubing. Terminate it with a piece of shrink tube. Works and looks great. I just ordered another 40’
Good Stuff...I used the 1/8 to protect the 5 conductor 24 ga trim wire routed from panel to wingtip and into Aileron. It took a few minutes to slide it through as the stuff acts like chinese finger cuffs.
This sleeve acts as an excellent protective sleeve on wire bundles. I use it anywhere wires pass thru the firewall and on all critical wires. I would recommend cutting it with a hot knife blade so you actually melt thru it. If you cut it without the ends melting it will unravel pretty quickly. After installing it, I always encapsulate each end with heat shrink tubing.
So suggest you order a few feet of the stuff before ordering qty.. I found this wire sleeve unravels much to easily at the cut ends... Yes could safety wire the end ..or wrap in electrical tape to stop the fraying... Melt end via Flame??.. (Ouch) But... I thought the wire sleeve was the same as the wire sleeve found on Alcor CHT/EGT probes.. Which is really nice .. Have a call into Alcor to find what wire sleeve they use... Love Aircraft Spruce !!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: "There is no actual "protective" temperature due to the fact it is a open weave product." We have added the Tech Data Sheet PDF to the "Tech Data" tab of the web page. This has all available technical information and should help answer your question.
