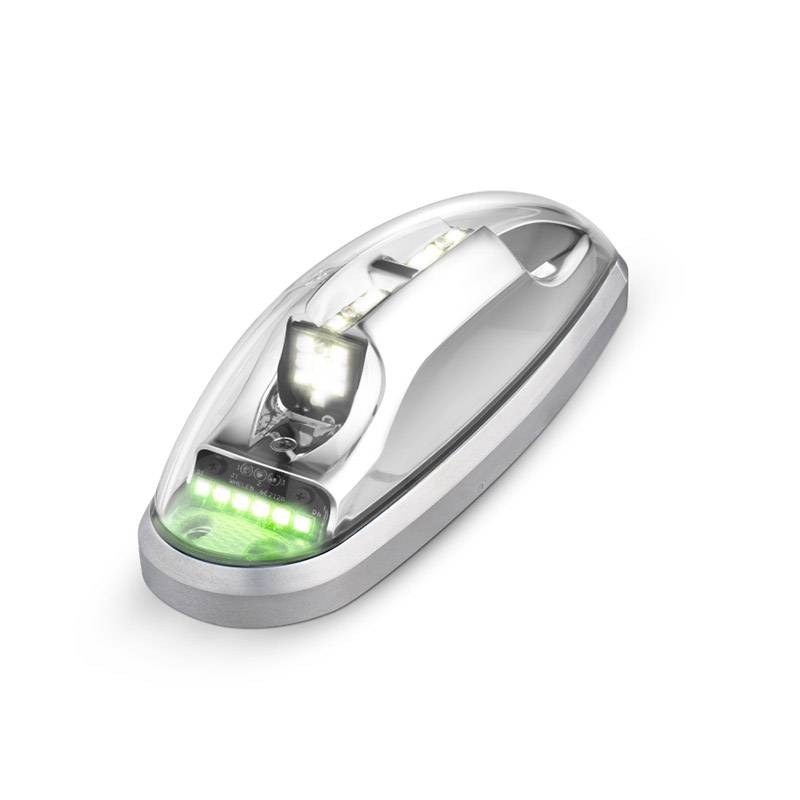

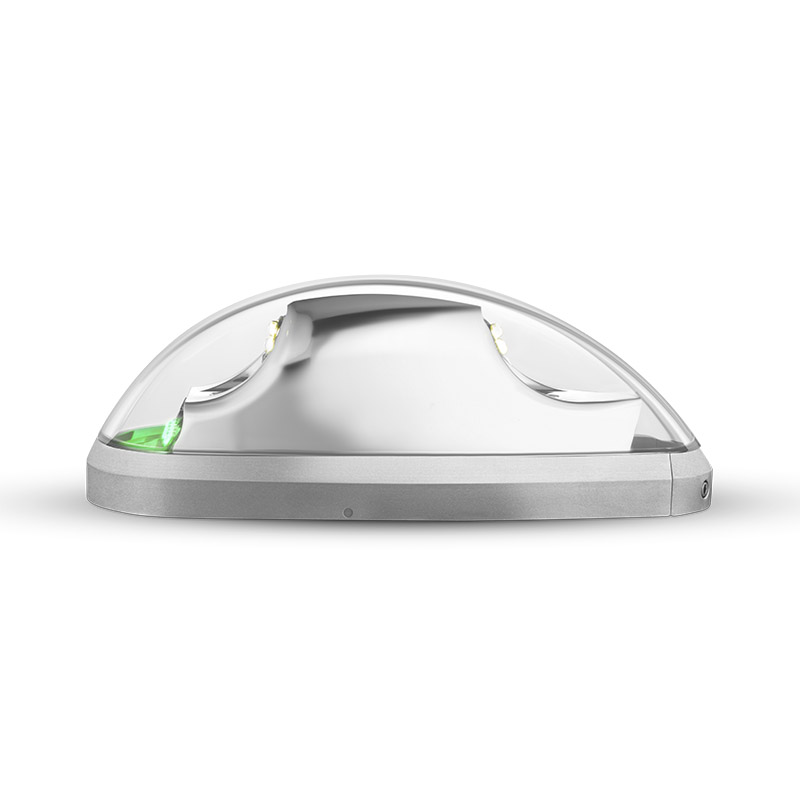

Whelen Orion 600 28V Wingtip Pta Green OR6002G
MFR Model# 01-0771733-11
FREE Shipping
| Whelen # | Model # | Description | Color | Voltage | Part # |
|---|---|---|---|---|---|
| 01-0771733-11 | OR6002G | Orion Wingtip PTA | Green | 28V | 11-11367 |
Overview
|
ORION600 Series of FAA/TSO approved LED
aviation lighting. Incorporating the latest state of the art LED Technology available in an all-inclusive
package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable
for a wide variety of applications with minimal integration and easily retrofitable to the
Whelen legacy strobe products. The ORION600 series is quite simply the brightest
form of LED Anti-collision and Position lighting available.
Model ORION600 Position/Anti-Collision Lighthead All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation. FAA TSO-C96c Class II / TSO-C30c Type II & III |
 |
WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Features
- Fully FAA/TSO-C96a & TSO-C30c approved
- FAR SPEC Certified
- Replaceable hard coated polycarbonate lens to maintain maximum light output
- No RF emissions
- Aerodynamic design without sacrificing light output
- Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
- Environmentally tested and certified to RTCA/DO-160G standards
Specifications
- Weight 0.4 lbs.(181gm)
- Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
- Volts 12 VDC 28 VDC
- Position LED colors Aviation Red Aviation Green
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hardcoat, Field Replaceable
Far Spec
- A Technical Standard Order (TSO) is a minimum performance standard and does equal compliance with the applicable Federal Aviation Regulations. In fact other manufacturers produce TSO approved items with operational characteristics that conflict with the FARs. Whelen designs products as FAR-SPEC, Federal Aviation Regulations Specified Lighting. FAR-SPEC is compliant with all applicable FARs making your installation legal.
- Installers must follow the approved guidance for installation of the product to be FAR-SPEC compliant
Reviews
Verified Purchase
Whelen Orion 600 28V Wingtip Pta Green OR6002G
Verified Purchase
Whelen Orion 600 28V Wingtip Pta Green OR6002G
Direct replacement for my 2013 Piper Mirage! Look great and are brighter than the legacy strobe lights!
What a difference from the original Whelen lights. Whelen isnt kidding when they say to check them with sunglasses because they are so bright. They arent outrageously priced, probably the best bang for the buck upgrade Ive done!
Verified Purchase
Whelen Orion 600 28V Wingtip Pta Green OR6002G
LEDs arrived quickly and install was fas and easy, and the customer was very impressed with the power.
Not yet fitted to aircraft but bench test was impressive.
Item arrived quick.
Received both light kits quickly with no shipping issues. Installed quickly and works great.
Excellent product. Easy to install. Saved about 3 lbs off the useful load. Incredibly bright. Easy bolt on for 1977 Mooney with sawed off wings. Unsynced they are distracting on night landings, so had a sync wire run.
These leds are very bright and look awesome. They are 100% bolt on replacement for whelen strobe system and they even use the same bolt pattern to mount so no holes to drill. Very easy install and 5x brighter.!!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For position light: 12v = 1/2 amp, 24v = 0.17 amp
For anti-collision light: 12v = 1 amp, 24v = 1/2 amp
These Orion 600 lights are priced and sold each. An order for quantity 1 will ship with 1 light.
Per the supplier: The Orion 600 series has a rear position light built into it. The footprint is also different. The Orion 650 is designed to replace our legacy A650 products while the Orion 600 is designed to replace the A600 Series assemblies.
Yes, the Orion 600 series LED lights are fully TSO approved for use in certified aircraft.
Yes, the Orion 600 is a 3 in 1 light.
4 conductor, 18 gauge wire.
Yes, the dimensions are available on our website. Go to the Brochure tab, and download the PDF. It includes a dimensional drawing of the lights for reference.
Per Whelen: Per Vendor: That question is for the FAA. We cannot answer questions of legality as they do not involve Whelen Engineering.
Conceptually the answer is yes, the OR600 meets all the position and anti-collision light requirements. However, the FAA may feel differently that must be consulted on these matters.
The strobe is ON/OFF
Each is wired independent and should be run off separate circuits.
