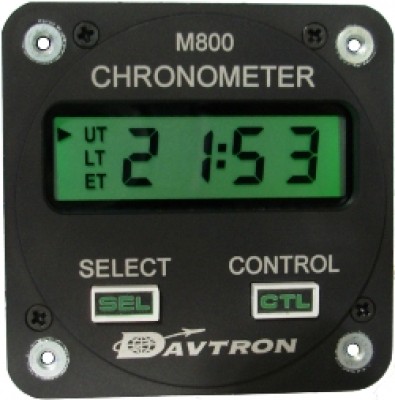

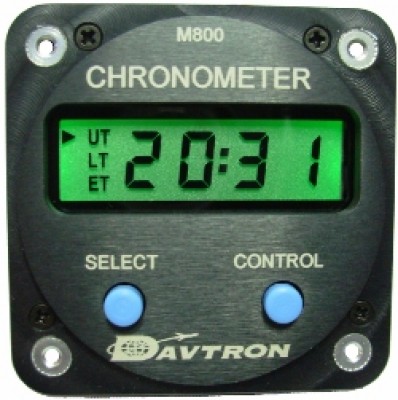

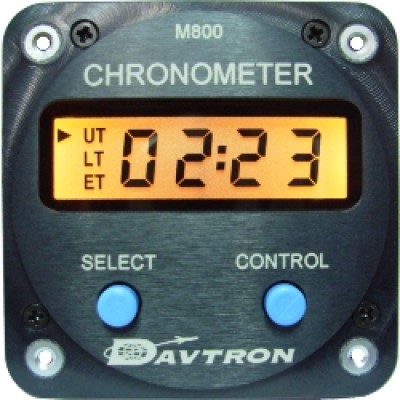

Davtron Model 800-5V With Battery Holder (Aa) M800-5V-Bat
MFR Model# M800-5V-BAT
FREE Shipping
| Description | Part Number |
|---|---|
| MODEL 800-5V WITH BATTERY HOLDER (AA) | 10-03305 |
Overview
Davtron M800 Features:
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
FAA Approval
- Davtron Inc has determined that installation of all Davtron products are considered minor according to (FAR) 21.93(a). All of our units are similar in design, with their electrical, mounting size, and weight being similar. Even though we consider installation of Davtron products to be minor, it is up to the installing mechanic to determine if the installation is minor or major. For a minor, a maintenance log book entry is all that is required. The FAA has determined that the installation of replacement clocks in non-transport category airplanes is considered to be minor, therefore only a maintenance log book entry is required referencing letter 100S-GA-10-53 from the FAA. Letter 100S-GA-10-53
For a major installation on a non PMA approved airframe, a FAA 337 form should be filed with your local FSDO and a possible field approval done. FAA PMA# PQ1062NM (View a sample 337 form)Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval. - FAA/PMA Approvals
- Diamond Aircraft Model DA20-A1
- Beech Models 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, and 35-A33
- Download FAA 337 Form
Specifications
- Universal Time: 24 hour format
- Local Time: 12 hour or 24 hour option, user selectable
- Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
- Elasped Time Countdown: Settable from one second to 59 minutes and 59 seconds
- Elapsed Time Alarm: Activates at zero when counting down
- Internal Lighting: 230mA at 5V,120mA at 14V,50mA at 28V. Select correct PN for indicated voltage at time of order.
- LCD Display
- Keep Alive Current: .004 Amps. 12 to 30 Volts
- Voltage: 12 to 30 Volts
- Option Battery: AA memory battery (specify when ordering)
- NVIS Option: NVIS Green A lighting
- Weight: 4 ounces
- Warranty: 1 year
Reviews
Outstanding chronograph-timer for a reasonable price. Simple to operate and no battery to change!
I got my new clock a few days ago, thanks. It is a replacement for an original that is quite old. The original started to show some intermittent flickering of display. It looks to be easy enough to install, and simple to operate. It seems pricy for what it does. But.... that is true for a lot of things in aviation.
Great/ simple ifr timer.. Extremely easy hook up. Back to flying! 🤙🛩
Great little clock/timer that does everything I need for my Grumman Tiger. Nice look, easy to set and use, nice display both day and night. Quick install that took about 1 hour. Quick access to Zulu time is a bonus.
It works great and is easy to use.
I installed on of these clocks in my Scheibe SF25C motor glider two years ago. It has worked very well. Easy to setup and use
Simple & effective.
It worked for a few years, but now it is failing. The legs of one or two of the LEDs are inop and the local time feature is not settable. It goes through the motions to set local time but then returns to some other value upon leaving the routine.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, these clocks are PMA'd but not TSO'd.
The FAA has determined that the installation of replacement clocks is considered to be minor, therefore only a log book entry is required referencing letter 100s-ga-10-53 from the FAA.

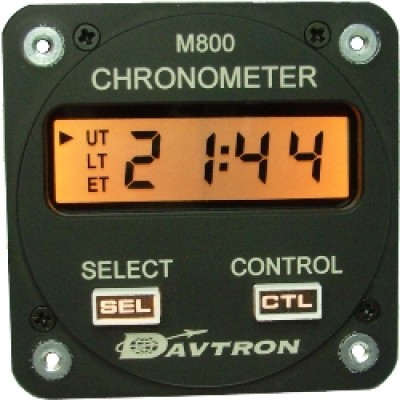

Part #10-03323 is the 5V standard lighting (orange) configuration.
Part #10-03335 is 28V Night Vision Goggle compatible lighting (green).
No. Per the manufacturer, you must specify at time of order.
You must order 10-03305 and on the back of the unit there will be some clips that will hold the battery in place.
Per the installation manual the wire must be connected to avionics buss when using the optional memory battery.
