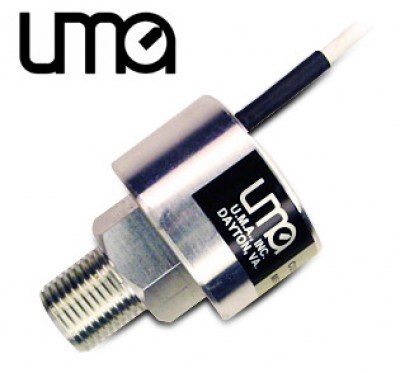

UMA Pressure Sender 100 PSI 1/8. F NPT TSO
$223.95/Each
Part# 10-02647
MFR Model# T1EU100G
MFR Model# T1EU100G
FREE Shipping
| Manufacturer Number | Range | Max Pressure | Part Number |
|---|---|---|---|
| T1EU100(G)(D) | 0-100 PSI | 406 PSI | 10-02647 |
Overview
|
PRESSURE SENDERS SOLID STATE TRANSDUCER 0-5V OUTPUT These units are the most economical TSO’d units on the market. They feature precision, solid state sensors and circuitry to give unequalled performance for the money. Available in gauge, differential and absolute types, they are compatible with avgas, jet fuel, engine oil and many other fluids. Because they have internal voltage regulation, they are compatible with indicating instruments that do not have precision output voltages. Units for fuel and oil pressure are certified under TSO C47. Units for manifold pressure are under TSO C45a. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Power req.: 9-16v - 10 ma.
- Internal regulator
- Output: 0.2 to 4.7 v
- Ranges: 0-7 to 0-150 psi, 0-70 in. Hg.
- Gauge-differential-absolute
- Weight: 2.6 oz.
- Length: 2 in. Dia.: 1.5 in.
- Material: aluminum (2024)
- Pressure fitting: 1/8 in. - 27 npt
- Mounting threads: 5/8 in. - 18
- Operating temp.: -40c° to +120c°
- Connection: 3 wires
- Media compatibility: avgas-oil-jet fuel-water
