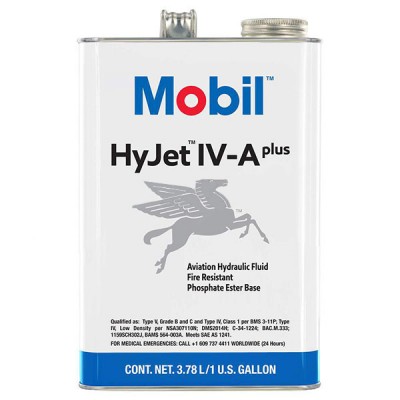

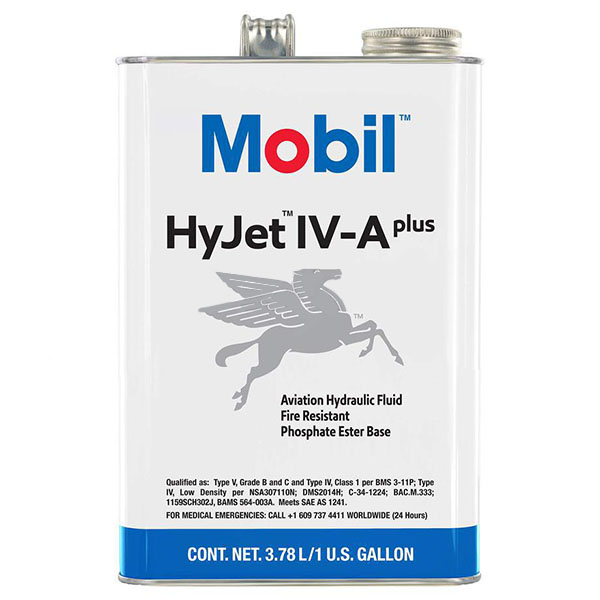

Exxon HyJet IV-A plus is a fire-resistant phosphate ester hydraulic fluid designed for use in commercial aircraft. It is the best-performing Type IV fluid and approaches to a great extent many of the performance capabilities of Type V fluids, including high temperature stability, long fluid life, low density, and rust protection. It is superior to all other Type IV fluids in these respects. Exxon HyJet IV-A plus meets the specifications of all major aircraft manufacturers and SAE AS1241 |
![]() |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features | Advantages and Potential Benefits |
---|---|
Best in high temperature stability among Type IV fluids | Longer fluid life. Lesser need to replace fluid due to degradation. Reduced hydraulic system maintenance costs |
Lowest density Type IV fluid | Reduced weight of the hydraulic fluid carried by aircraft. Reduced aircraft fuel consumption, lower operating costs |
Effective rust protection | Reduced the risk of equipment damage in the event of major water contamination |
Excellent low temperature flow (viscosity) properties | Precise hydraulic system control and response even during extended range/polar flights. Longer equipment life |
Excellent deposit control | Longer equipment life. Reduced maintenance costs |
Excellent protection against electro-chemical corrosion (erosion) | Protection against servo valve and pump damage |
Approved by all major aircraft manufacturers | Use as fleet lubricant by airline operators |
Fully compatible with all approved phosphate ester hydraulic fluids | Flexibility in use by airline operators |
HyJet IV-A plus | Meets Type lV, Low desnsity | Is in Qualified products List |
---|---|---|
SAE Aerospace Standard AS1241C | X | Not Applicable |
Airbus NSA307110N | X | X |
ATR NSA307110N | X | X |
Boeing BMS 3-11P, Type IV, Class 1 and Type V, Grade B and Grade C Â | X | X |
Boeing (Douglas Division) DMS 2014H | X | X |
British Aerospace (Avro) BAC.M.333C | X | X |
Bombardier/Canadair BAMS 564-003A | X | X |
Bombardier/DeHavilland | X | X |
Cessna | X | X |
Embraer | X | X |
Fokker | X | X |
Gulfstream Aerospace 1159SCH302J | X | X |
Lockheed C-34-1224C | X | X |
Test Method | HyJet IV-A plus (1) | Limits | |
Kinematic Viscosity, cSt | ASTM D 445 | ||
at -53.9ºC (-65ºF) | 1320 | 2000 max | |
at -26.1ºC (-15ºF) | 130 | 135 max | |
at 37.8ºC (100ºF) | 10.6 | 10.0 -11.0 | |
at 98.9ºC (210ºF) | 3.6 | 3.35 - 3.75 | |
at 127.6ºC (260ºF) | 2.6 | 1.5 min | |
Viscosity Index | ASTM D 2270 | 280 | |
Shear Stability, % Viscosity Drop at 40ºC | ASTM D 5621 | 22 | |
Pour Point, ºC (ºF) | ASTM D 97 | ‹-62 (-80) | -62 (-80) max |
Specific Gravity at 25ºC/25ºC (77ºF/77ºF) | ASTM D 4052 | 0.996 | 0.990 -1.002 |
Density at 15.6ºC (60ºF), g/mL (lb/gal) | ASTM D 4052 | 0.999 (8.35) | |
Acid Number, mg KOH/g | ASTM D 974 | 0.04 | 0.1 max |
Water, Karl Fischer, mass % | ASTM D 6304 | 0.1 | 0.2 max |
Flammability | |||
Flash Point, ºC (ºF) | ASTM D 92 | 176 (349) | 160 (320) min |
Fire Point, ºC (ºF) | ASTM D 92 | 188 (370) | 177 (350) min |
Autoignition Point, ºC (ºF) | ASTM D 2155 | ›427 (800) | 400 (752) min |
Foaming Tendency/Stability, mL foam/sec to collapse | ASTM D 892 | ||
Sequence I | 27/15 | 250/100 max | |
Sequence Il | 23/13 | 150/50 max | |
Sequence Ill | 28/16 | 450/250 max | |
Particle Count, NAS 1638 Class | Auto Counter | 4 | 7 max |
Chemical Elements, ppm | |||
Calcium | 103 | 120 max | |
Potassium | 38 | 48 max | |
Chlorine | 10 | 50 max | |
Sodium | 1 | 15 max | |
Sulfur | 224 | 350 max | |
Four-Ball Wear, Scar diameter at 75ºC/600rpm/1hour, mm | Modified ASTM D 4172 | ||
4 kg | 0.22 | 0.45 max | |
10 kg | 0.33 | 0.50 max | |
40 kg | 0.73 | 0.55 – 0.85 | |
Electrical Conductivity at 20ºC, microSiemens/cm | 1.4 | 0.5 min | |
Bulk Modulus, Isothermal secant at 100ºF/3000 psi, psi | 210,000 | ||
Thermal Conductivity at 40ºC, cal/sec/cm2/ºC (Btu/hr/ft2/ºF) | 33x10^-5 (0.0799) | ||
Coefficient of Thermal Expansion, 25 to 100ºC, per ºC (per ºF) | 0.00086 (0.00048) | ||
Specific Heat Capacity at 40 ºC, cal/g/ºC (same as Btu/lb/ºF) | 0.41 |
