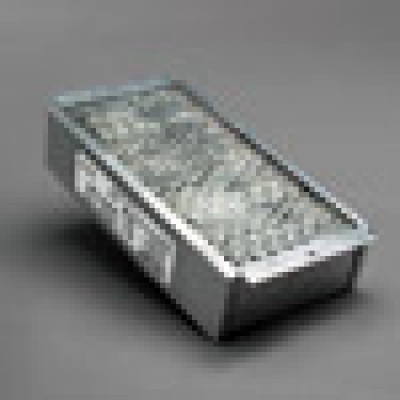

Donaldson Air Filter P13-7627
MFR Model# P13-7627
FREE Shipping
| Donaldson | OEM | Description | PN |
|---|---|---|---|
 P137627 | 35-380035-7 | Bonanza Engine Intake air filter | 08-06026 |
Overview
|
Donaldson has been the OEM source for Cessna, Piper, Beechcraft, and Maule & Mooney since the 1960's. They currently supply Cessna all of their SE Piston aircraft filters, Beech Bonanza & Baron filters, Mooney & Maul with their filters. For Piper they currently supply all of their Turbo charge aircraft with filters. Factory authorized distributor for Donaldson filters
*Images are representative of the product and may not be the exact item shown. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- High Performance Engine Intake Filters
- Synthetic media: offers improved air flow and better dust capturing efficiency
- Engineered to last 500 Flight Hours
- Washable filter element, use compressed air/warm soapy water
- Visually inspect the filter at 100 hours remove and clean only as needed
- See document P46-9075 for complete servicing details
- Clean installation: dry media, no sticky/messy oil to trap dirt
- OEM choice for GA aircraft for over 30 years
- Meets All Flammability requirements per FAR 23.853
- Solid Construction with no removable parts - no loose screens,
- elements or screws
- Dedicated Website to General Aviation products Donaldson General Aviation
- Exceptional wet weather performance, no oil to wash away in wet weather
- Moisture passes thru the filter, doesn't build up an oiled surfaces
- (no oil present)
- Only filters with * after part number have cellulous media
- All filters starting with "P" feature our Premium Synthetic filter media
- No Airworthiness Directives against Synthetic media filters
- Cost efficient over the life of the filter, 3 years, 500 FH 5 cleanings
Documents
Reviews
Verified Purchase
Donaldson Air Filter P13-7627
After flying my new to me A-36 Bonanza for about 2years, I decided to replaced the Brackett air filter that that was on my aircraft when I bought it. This new Donaldson filter gave me 1 inch more of manifold pressure at takeoff power than the Brackett filter did. I assume that would continue to benefit for climb and cruise. Note: my new Donaldson filter did not come with any form of gasket. I had to fabricate a gasket for the mounting mating surfaces with appropriate material. Other than that it was a direct replacement with no other adapter other than the gasket I had to make.
Verified Purchase
Donaldson Air Filter P13-7627
This Donaldson filter for an A36 did not include the foam seal to seal the gasket to the airbox. It is needed and even the instructions reference making sure it is applied to the filter. Whats worse is trying to get a hold of Donaldson customer support via the contact numbers on the Donaldson box. Contacted Spruce Customer Service and waiting on a reply. In the meantime, Im in a holding pattern and the A36 is not in the air. I trust in Spruce to help me with this in a timely manner.
Verified Purchase
Donaldson Air Filter P13-7627
Fits perfectly.
Much better than Brackett
Bought this air filter on the advice of others and reviews. Well made, fits perfectly in a C-185. Yet to see performance gains, but not really why I bought it. Purchased for easier maintenance.
Correct item timely.
Very well made and a perfect fit. Easy to service/clean. No messy oil.
Purchased this air filter to replace the stock one on a 1972 Cessna 172l. It fit perfectly and will provide cleaner air for the lycoming engine. Great purchase...
I bought the Donaldson P/N 107150 as a replacement for the Air Maze filter P/N 13203 for my Champ 7EC with an O235 lycoming. It is a perfect replacement. I would recommend this product.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Donaldson: Yes, these filters do in fact feature our Synthetic Pleated media. AD 84-26-02 calls out paper filters or cellulose based filter media. Donaldson no longer manufacture any General Aviation filters with cellulose (paper) filter media.
The filter assembly has a foam tape seal and the fasteners are included.
It does not come with oring/packing.
The OD is 6", the ID is 4" and the height is 7".
Yes, 8130 domestic paperwork is included.
