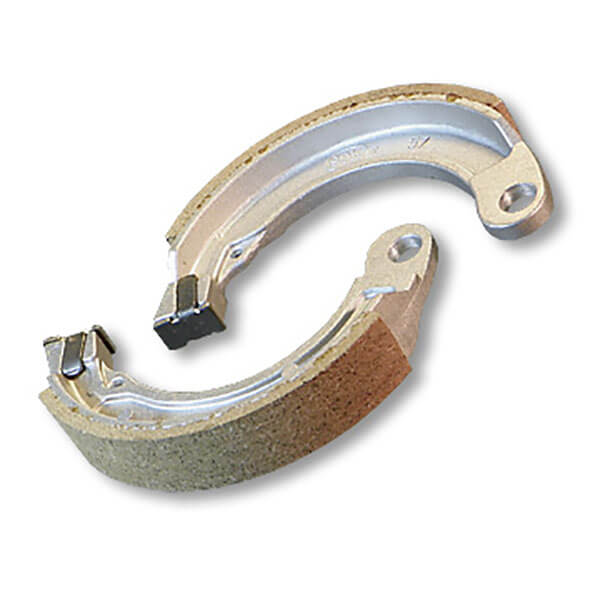

Azusa Brake Lined Shoes # 2538

$20.50/Each
Part# 06-03470
MFR Model# 2538

Overview

These 5" brakes are used on Azusa #1175 wheels only. Features a round aluminum backing plate and actuating arm which allows for 8 positions.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Great product!!! The ACS Canada website showed it in stock and a month later I received it.

Andrew
February 22, 2021

Great product!!! The ACS Canada website showed it in stock and a month later I received it.

Andrew
February 22, 2021

Product appears to be well made. The drum and brake assembly are sold separately. There is no documentation included with the brake assembly to suggest mounting, axel spacing or control cable connection. An axel spacer is needed. The drum does not include mounting bolts or instructions for mounting which requires drilling the stock wheel. Dimensional drawings for design purposes would also help.

James T
March 11, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of this brake?

This brake is roughly 3.25 lbs.

Q: I need a 5 inch back plate with a 3/4 inch hole for a 3/4 axle, can’t find those dimensions in your description, do you have?

Azusa does not make one that matches this spec.
