| Description | ID | Part No. | Dash No. | Price / Ft | Length | Buy |
|---|---|---|---|---|---|---|
| Ducting Vena MT | 3 | 05-29812 | -12 | $10.50 | |
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview

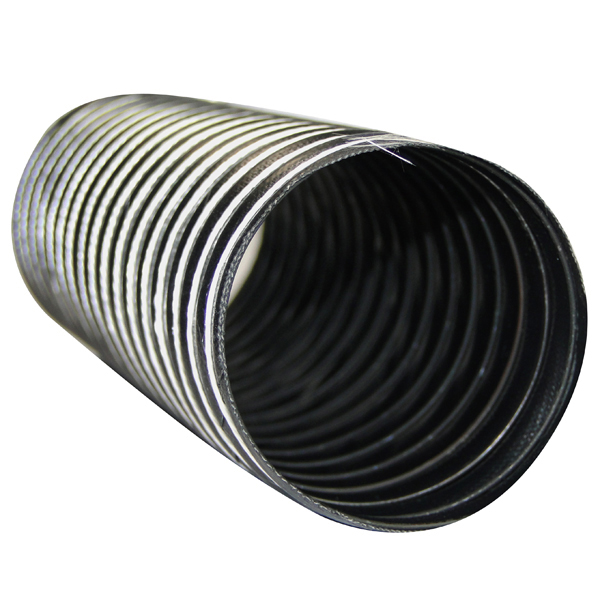

Sold by the foot.Ducting used to convey air or gaseous fluids at medium temperatures and with high resistance to aging. Vena® MT is manufactured with a fiberglass textile reinforcement and it is covered with black neoprene rubber compound and coated with steel wire. These hoses have excellent flexibility and excellent aging resistance. ApplicationsThese hoses are specially recommended in gas conduction at medium temperatures.
ConstructionThis product is manufactured with two fiber glass textile reinforcements covered with neoprene rubber compound in black and coated with non-visible steel wire. TemperatureOperational temperature range from -55ºC (-67ºF) to +125ºC (257ºF). It may reach up to 150ºC (302ºF) during short periods of time. Certifications
Available SizesStock diameter listed in ordering grid. Diameters not listed are available as a special order in full lengths only. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 13 ft, contact sales to confirm availability. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
- Tech Data Sheet (PDF)
Reviews
correct size and works as it should
As usual, up to the Aircraft Spruce standard. Getting very ho hum, I like it that way.
I did not use this for its intended purpose on an aircraft. Instead I used it as heat tubes on my Volkswagen. It not only looks better than the original version but it is so much easier to work with. Love it!
Just what I needed...
Top quality ducting, Great price, incredibly fast processing of orders every time. I often use this for classic car intake ducting, or using SCAT heat ducting in air cooled Porsche.
Easy to work with and works great for heat ducting for my Porsche 911
Very well packed, very high quality CAT tubing, fast delivery.
just what I wanted and in a timely manner !
Great product. Unfortunately wrong size for my application. My error.
Fast shipping, well packaged, excellent ducting. Using this on my car for brake ducting. Looks to be just the ticket, thanks AS!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
An order for 3 feet will be delivered at 3 continuous feet, unless noted in special instructions to cut into 3, 1 foot lengths.
No, the dash number is the extension used after CAT to complete the industry standard part number. For example, the part number would be CAT-2A, CAT-3, etc. All CAT ducting is priced and sold per foot, so to get 24 feet, order quantity 24.
The weight per foot would be .14lbs.
Yes, 05-29808 is black.
Yes, the only difference is the diameter of the ducting. The material is the same.
No, this part number does not cross over.
