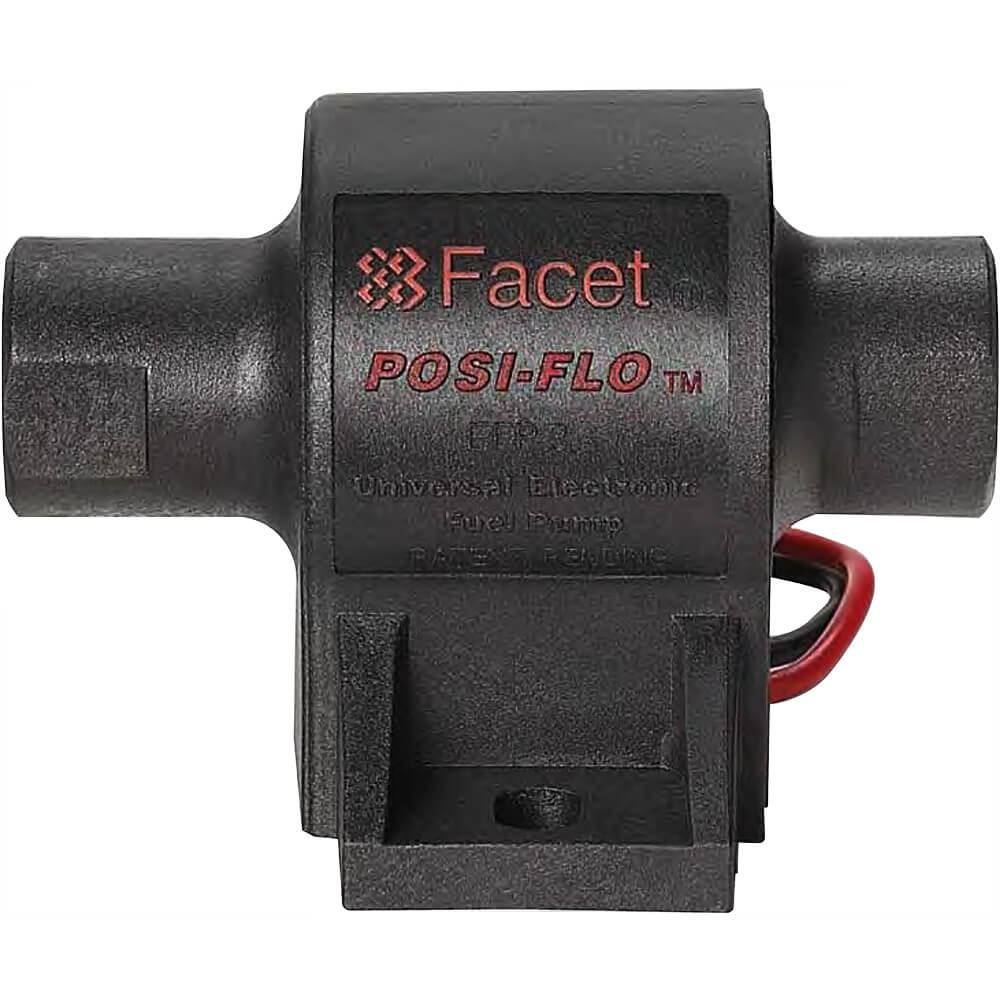

60303 Facet Posi-Flo Pump

$47.50/Each
Part# 05-10881
MFR Model# 60303N
DescriptionPart Number
60303 Facet Posi-Flo Pump05-10881

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

Fuel Compatibility: All models of the Facet Posi-Flo Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other
electric pumps.

Easy to Install-Easy to Service:Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • 12 inches minimum dry lift
  • 23 - 40 GPH
  • 1.5 - 10 PSI
  • ESD compliant
  • 1.5 amp average
  • Diesel Priming and Self Regulating
  • Light-Weight - Compact
  • Internal 3.5 amp fuse
  • Quiet valve - 65Db


PN OEM PN Description Volts PSI Max-
Min
GPH Fitting
Size
Lift Min.
Dry
Check
Valve
Position Shut Off
Valve
05-10856 60106 Facet Psi-Flo Fuel Pump 12 7.0-4.0 32 1/8 - 27 INT 12" N N
05-10880 60245 Pump Kit- (2ea.) Straight Fuel Fittings 12 4.0-1.5 23 1/8 - 27 INT 12" N N
05-06862 60300 Facet Posi-Flo Fuel Pump 12 4.0-2.5 20 1/8 - 27 INT 50" Y N
05-06863 60301 Facet Posi-Flo Fuel Pump 12 5.0-3.5 30 1/8 - 27 INT 50" Y N
05-06864 60302 Facet Posi- Flo Fuel Pump 12 7.0-5.0 32 1/8 - 27 INT 50" Y N
05-10881 60303 Facet Posi-Flo Fuel Pump 12 10.0-7.0 34 1/8 - 27 INT 50" Y N
05-10882 60304 Facet Posi-Flo Fuel Pump 12 2.0-1.0 15 1/8 - 27 INT 24" Y N
05-01250 FEP04SV Pump Kit- Straight Fuel Fittings, Nuts, Screws, Fuel Filter 12 4.0-1.5 23 1/8 - 27 INT 12" N N

Reviews

Item does what it is supposed to do.

Don W Verified Purchase

60303 Facet Posi-Flo Pump

August 7, 2024

Jim C Verified Purchase

60303 Facet Posi-Flo Pump

December 30, 2021

Pump looks as advertised. Straight forward installation. Functions as expected over the 1 week period since install. Longevity will be the discerning factor however Facet reputation suggests it will last longer that my other attempts

Rod
April 19, 2021

Works as advertised

Paul W
March 16, 2021

Fast and accurate order w/ an excellent price.

Jack F
February 26, 2021

For the brands of vehicles I service (classic British MG and Triumph sports cars) I fit nothing but your Facet low press. fuel pumps they adapt easily and have proven reliable. Thank you for providing them at fair prices, will continue to be a customer.

Mg R
January 7, 2021

What can I say...I ordered it...I got it in the time promised...I installed it...it works. Perfectly transparent and honest transaction.

Charlie M
November 14, 2020

Item arrived prior to projected delivery date in excellent condition. Installation was simple and the product to date has performed as expected. My engine runs more smoothly, starts faster and has more power at higher speeds.

Ron L
September 30, 2020

Really great pump

Stanley M
August 18, 2019

we use these fuel pumps for gas marine engines, they have the proper lift for the in hull fuel tanks.

Tim
August 16, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this pump allow fuel passage when turned off? (depowered)

Per the tech data this unit has a check valve, but does not have a positive shut off, so it will flow in the normal flow direction when off.

Q: What is the distance of the mount holes center to center?

Regarding Part # 05-06862 (FACET 60300 POSI-FLO PUMP), the distance center to center of the mounting holes is approximately 2-1/2".

Q: What is the weight of the Posi Flow 60302 pump (part # 05-06864)?

This pump weighs approximately 0.79 lbs.

Q: Are these pumps compatible with kerosene and/or Jet A?

The tech data sheet does not mention these kerosene or Jet A specifically. It does mention that this unit can be used with gasoline, diesel, biodiesel, blended alcohol fuels, & fuel additives.

Q: The specs say 1/8 -27 INT. Will this pump accept an NPT fitting, for example a male NPT with a hose barb fitting, or must it be a flared fitting?

INT would represent internal (female) NPT thread. So yes, this will work. You can choose any kind of style fitting you like at the other end.

Q: FACET POSI-FLO SOLID STATE FUEL PUMPS: what comes with this unit as far as just the pump or are their barbs, bolts etc?

This is only the fuel pump.
