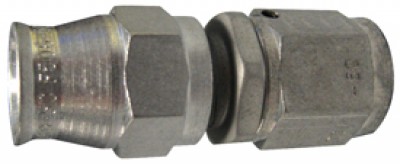

Eaton Hose Fitting F66000-5
MFR Model# F66000-5
FREE Shipping
Overview
The success of the Aeroquip "super gem" reuseable fittings lies in the separation of the retention function from the sealing function. Thus it is possible to apply the necessary holding force without squeezing the tube. Sealing is accomplished positively by a lip seal which is unaffected by aging or cold flow of the tube.
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specs Chart
Use With Hose | 666-4 | 666-5 | 666-6 | 666-8 | 666-10 | 666-12 |
Model No. | F66000-4 | F66000-5 | F66000-6 | F66000-8 | F66000-10 | F66000-12 |
Part No. | 05-01320 | 05-01321 | 05-01322 | 05-01323 | 05-01324 | 05-01325 |
Product Series | 666/667 Super Gem | 666/667 Super Gem | 666/667 Super Gem | 666/667 Super Gem | 666/667 Super Gem | 666/667 Super Gem |
Nipple Assy | G65000-4 | G65000-5 | G65000-6 | G65000-8 | G65000-10 | G65000-12 |
Socket | F506-4C | F506-5C | F506-6C | F506-8C | F506-10C | F506-12C |
Sleeve | 900767-4C | 900767-5C | 900767-6C | 900767-8C | 900767-10C | 900767-12C |
Thread Size | -4 | -5 | -6 | -8 | -10 | -12 |
Fitting Type | Flared | Flared | Flared | Flared | Flared | Flared |
Fitting Style | Straight | Straight | Straight | Straight | Straight | Straight |
Material | CRES | CRES | CRES | CRES | CRES | CRES |
Attachment Method | Field Attachable | Field Attachable | Field Attachable | Field Attachable | Field Attachable | Field Attachable |
Lock Wire | None | None | None | None | None | None |
Thread | .4375-20 UNJF-3B | .5000-20 UNJF-3B | .5625-18 UNJF-3B | .7500-16 UNJF-3B | .8750-14 UNJF-3B | 1.0625-12 UNJF-3B |

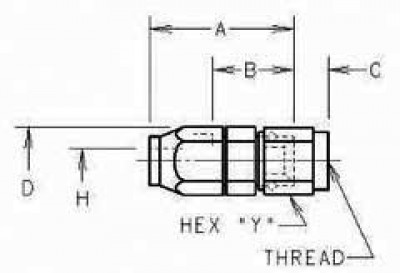

Max Dim A | 1.35 | 1.41 | 1.47 | 1.7 | 1.86 | 1.93 |
Dim B | 0.74 | 0.77 | 0.81 | 0.93 | 1.05 | 1.13 |
Dim C | 0.37 | 0.38 | 0.38 | 0.43 | 0.5 | 0.57 |
Max Dim D | 0.66 | 0.73 | 0.81 | 1.02 | 1.17 | 1.31 |
Min I.D. | 0.161 | 0.224 | 0.261 | 0.345 | 0.44 | 0.56 |
Hex Nut | 0.56 | 0.62 | 0.69 | 0.88 | 1 | 1.25 |
Socket Hex | 0.56 | 0.62 | 0.69 | 0.88 | 1 | 1.12 |
FTG Wt. (lb) | 0.038 | 0.046 | 0.057 | 0.111 | 0.157 | 0.196 |
Aviation Spec. | MS27053 | MS27053 | MS27053 | MS27053 | MS27053 | MS27053 |
