MS35335-40 Washer

$1.09/Piece
Part# 04-00101
MFR Model# 46686-5
TypeSizeCad
Plated
MS Number
Stainless
MS Number
Buy Stainless
Type B3/4MS35335-40----

Overview

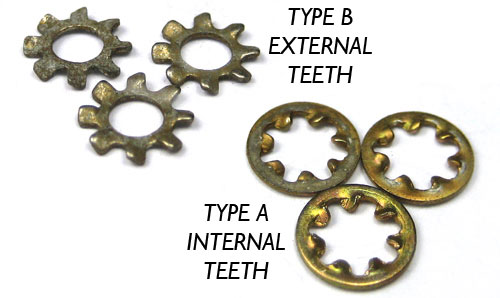

Provide efficient locking action by spring tension and biting action of tapered twisted teeth. Made of 1050 spring steel and cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with internal teeth (Type A) or external teeth (Type B)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

excellent & accuracy.

Young
June 30, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is size column on this page referring to inside or outside diameter of the MS35333 & MS35335?

That is the ID of the washer or essentially the size of the screw that goes with it.

Q: What is the Thickness of the washer 04-00103?

The thickness is .052" min to .060" max.
