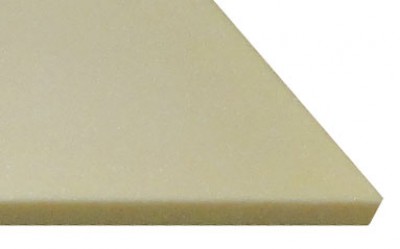

H45 Pvc Foam 3/8X32X48
MFR Model# 10.7 SF
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
|
Foam Type | Density | Tkns. | Sheet Size | PN |
|---|---|---|---|---|
| Divinycell (PVC) Type H45 | 3 Lb/Cu. Ft. | 3/8" | 32" x 48" | 01-12400 |
Overview
Divinycell:
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
The foam was exactly what I ordered, PVC foam with is fuel resistant and the material specified for building the strakes/fuel tanks for the Cozy MK IV. The foam was packed extremely well with wood to prevent damage. Aircraft Spruce always does a good job packing items to prevent damage in shipment.
Divinycell Foam...just what the doctor ordered. I am using this foam to fair the ends of my horizontal stabilizer and the vertical stab and rudder as well. Easy to shape, loves epoxy and very light.
Fast shipping
What can I say... Its Divinycell. My comment goes to the excellent person who took my phone order for his clear instructions to the packing/shipping person, and to him/her that executed flawlessly for the long trip to Panama. The foam arrived quickly and undamaged, due to the excellent packing! Thanks!
This should work out fine for my application.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
H45 foam core can be used in place of R45 foam, but any changes of the plans should be reviewed with other builders.
Yes, Divinycell can be cut and sanded to shape.
No, Divinycell is not to be cut with a hot wire. The only foam that we offer that can be cut with a hot wire is our styrofoam, small cell (example part # 01-09400) and large cell (example part # 01-37600).
The sizes we offer are stock sizes with max length of 48". We may be able to special order a custom size, but the minimum order may be 20 pieces or more. We would just need the exact material and size you need and we can submit a request for a quote. Please contact our sales department if you would like to look into a special order for custom sizes.
Divinycell foam can be vacuum bagged. Polyester, vinyl-ester and epoxies can be used on this foam without any damage to the foam.
The heat distortion temp is 250 degrees. 350 degrees is much higher and would most likely damage the foam.
Yes. It can be cut using a CNC.
There is not a specific epoxy adhesive to be used on this material. All the epoxy adhesives we offer would work fine. You may want to consult with others with the same project to see what others have used with success. T-88, G-Flex, Aeropoxy adhesives, are just a few we offer.
No, these are rigid and will break if we try to roll them.
This has passed the test of being submerged in High Octane Petroleum Spirit for 14 days.
