| Kit No. |
Kit Size | PN | #105 Resin |
#205-Fast | #206-Slow | Kit Price | Buy |
|---|---|---|---|---|---|---|---|
| A-1 | 1.2 Qt. | 01-08100 | 32 oz. | 7 oz. | ----- | $79.95 | |
| A-2 | 1.2 Qt. | 01-08200 | 32 oz. | ----- | 7 oz. | $77.00 | |
| B-1 | 1.2 gal | 01-08300 | 126 oz. | 27 oz. | ----- | $182.95 | |
| B-2 | 1.2 gal | 01-08400 | 126 oz. | ----- | 27 oz. | $176.95 | |
| C-1 | 5.25 gal | 01-08500 | 4.35 gal | 121 oz. | ----- | $617.00 | |
| C-2 | 5.25 gal | 01-08600 | 4.35 gal | ----- | 121 oz. | $586.00 |
Overview
|

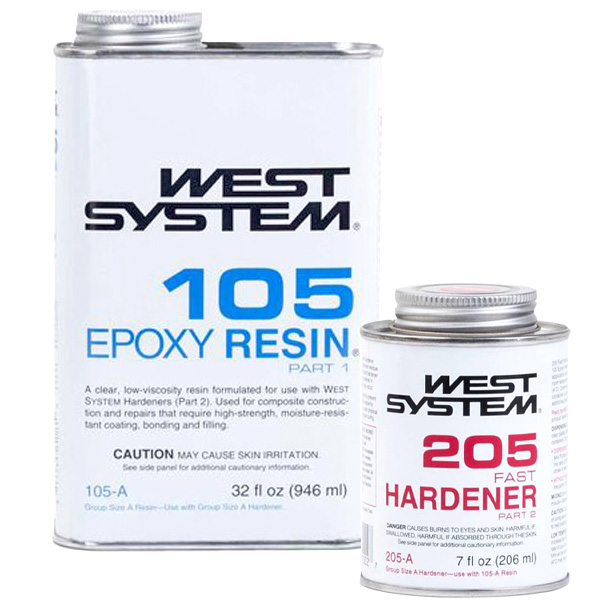

WEST SYSTEM brand resins and hardeners, form a two-part epoxy system developed by Gougeon Brothers specifically for wood and composite boat construction. Rutan Aircraft Factory now recommends WEST SYSTEM epoxy for certain homebuilt aircraft applications, particularly where a moisture resistant epoxy is desired. 105 Resin is the base material on which all of the WEST SYSTEM epoxy systems are built. The resin is a clear, light amber, low-viscosity liquid. It is designed specifically to wet out wood fiber. With roller applications, it possesses excellent thin film characteristics in flowing out and is self-leveling without fish-eyeing. Its relatively high flash point makes it safer to work with than polyesters. It can be cured in a wide temperature range, then sanded and shaped. It cures quite clear so that the natural finish shines through.
205 Fast Hardener, when mixed with the 105 Resin in a ratio of 5 parts Resin to 1 part Hardener, yields a high-strength, rigid solid with excellent cohesive properties and provides an excellent moisture vapor barrier. The 105 Resin/205 Fast Hardener has a pot life of 10-15 minutes at 70°F. It is also recommended in coating applications where natural finishing is desired. Partial cure time at 70°F is 5-7 hours. 206 Slow Hardener is a low-viscosity mixture of polyamines. The 105 Resin/206 Slow Hardener has a pot life of 30-40 minutes at 70°F. It is normally used when extended time is needed for large coating and bonding applications. It is especially well suited to working in warmer climates. Partial cure time is 9 hours at 70°F. Order by size and hardener below. Note: Pumps sold separately. Ratio pumps consists of three pumps to cover 301 and 303 A, B, & C kits. Resin pump fits either gallons or quarts. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
- West System User Manual
- 105-205 TDS (PDF)
- 105-206 TDS (PDF)
- 105 SDS (PDF)
- 205 SDS (PDF)
- 206 SDS (PDF)
Videos
Reviews
I have liked this stuff for a long time.
Verified Purchase
West System Epoxy Kit A-1 Fast
Verified Purchase
West System Epoxy Kit A-2 Slow
Great product!
Verified Purchase
West System Epoxy Kit A-1 Fast
Good consistent results if a bit pricey
Verified Purchase
West System Epoxy Kit B-2 Slow
Parfait
Verified Purchase
West System Epoxy Kit A-2 Slow
Verified Purchase
West System Epoxy Kit B-2 Slow
Best kit on the market for ease of use.
Verified Purchase
West System Epoxy Kit A-1 Fast
Both cans were bashed in from inadequate packing. AS wouldn’t replace unless it was leaking. Really disappointing
Verified Purchase
West System Epoxy Kit B-2 Slow
Works great, but I found it difficult to measure out proportional amounts of Resin & Hardener
Verified Purchase
West System Epoxy Kit A-2 Slow
Product as ordered
Verified Purchase
West System Epoxy Kit A-1 Fast
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes and no. This product is ideal for fiberglass applications. It is not intended for use with Dacron or Poly-Fiber fabrics.
This will all depend on what the builders manual recommends. You can use a filler with the West System kits, but you will need to check where this will apply to your aircraft application.
There is a 2-year shelf life, the hardener should still be reactive with the resin.
