Home /Rotax 503 | 582 Ul Engine Reduction Gearbox "B" : I=2 00 I=2 24 Or I=2 58 Parts

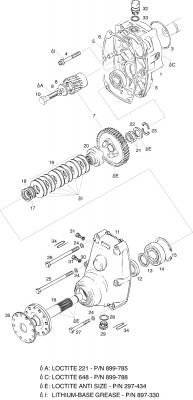

Main Image

Rotax 503 | 582 Ul Engine Reduction Gearbox "B" : I=2 00 I=2 24 Or I=2 58 Parts

0 Reviews 0 Answered Questions
From $1.42 to $110.27

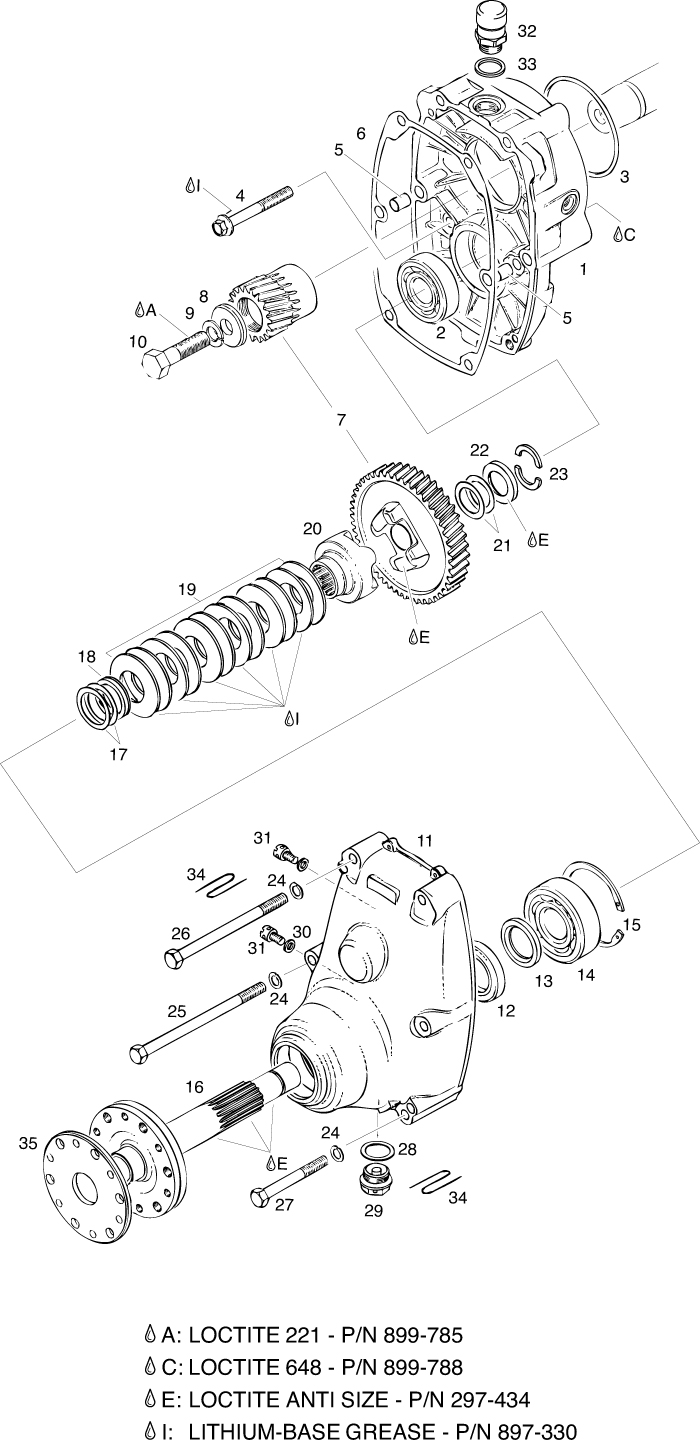

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req PN Price Buy
4841-306 COLLAR HEX. SCREW M8X65 SW 112
15-01167
$3.26
Quantity
5929-670DOWEL 10X132
15-03012
$4.59
Quantity
9945-765 LOCK WASHER VHV 131
15-03371
$2.16
Quantity
10841-656 HEX. SCREW 1/2-2OUNFX21
15-01200
$6.20
Quantity
15445-070 RETAINING RING 62X21
15-00565
$3.07
Quantity
18847-621 DISTANCE RING 25,2/33/4,51
15-01345
$18.10
Quantity
19939-020 DISK SPRING B5012
15-03152
$3.85
Quantity
20958-771 DOG HUB1
15-03588
$110.27
Quantity
21944-469 THRUST WASHER 20,5/30/0,82
15-03341
$1.42
Quantity
28552-280 GASKET RING 18,2/24/11
15-00572
$1.71
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   exchange drive gear 19 T and dog gear 49 T only together.
  • b   exchange drive gear 21 T and dog gear 47 T only together.
  • c   exchange drive gear 20 T and dog gear 40 T only together.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
