Shock Cord Ring - 1174

$43.55/Each
Part# 06-00756
MFR Model# 1174

Overview

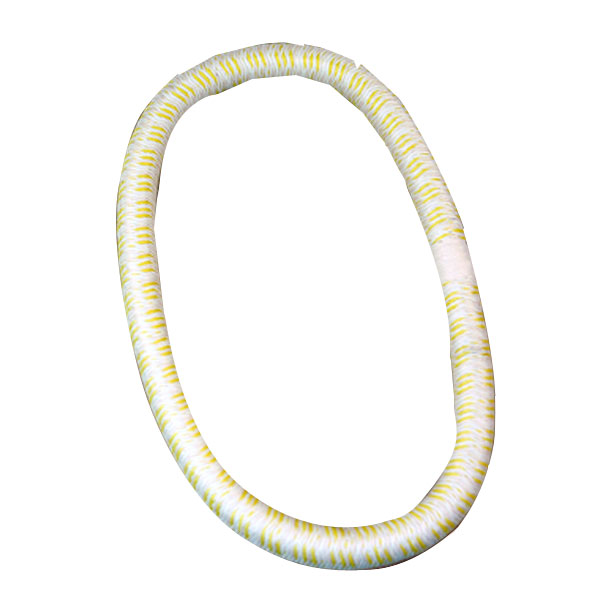

An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock.

CW (Cold Weather)shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add "-CW" to standard part number when ordering.

The MIL Fresh Shock Ring number is 1174. The ring size is 11/16" x 7-1/2". Test is 700 LBS. 4 units required.

Note: Size listed is cord diameter x ID

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Chart

Plane Type Part # Size Test Lbs No. Req'd
Piper J2
1174 11/16" x 7-1/2" 730 4
Piper J3;
J58;
(ser. no. to
8227 before 1942)
1174 11/16" x 7-1/2" 730 4
Piper J5 1174 11/16" x 7-1/2" 730 6
