Grove Inline Parking Brake Valve

From $388.00 to $398.00
OEM P/N Inlet Outlet Part No. Price Buy

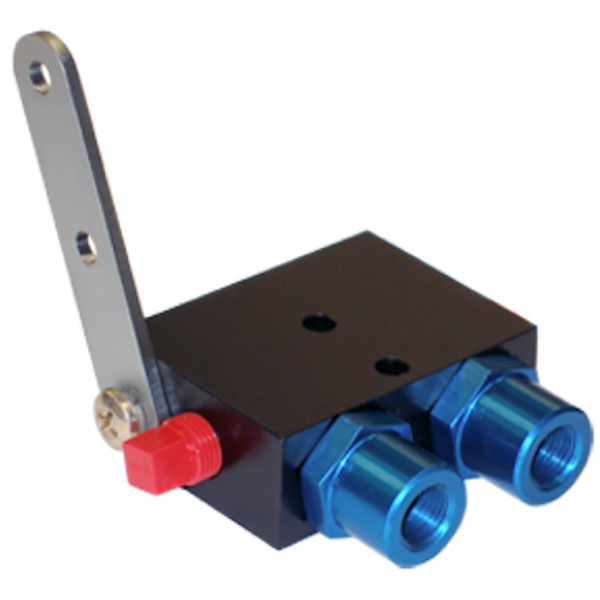

068-001Top1/8" NPT
06-01260
$388.00
Quantity
068-002Side1/8" NPT
06-01261
$396.00
Quantity
068-003Top-4 Flare
06-01262
$398.00
Quantity

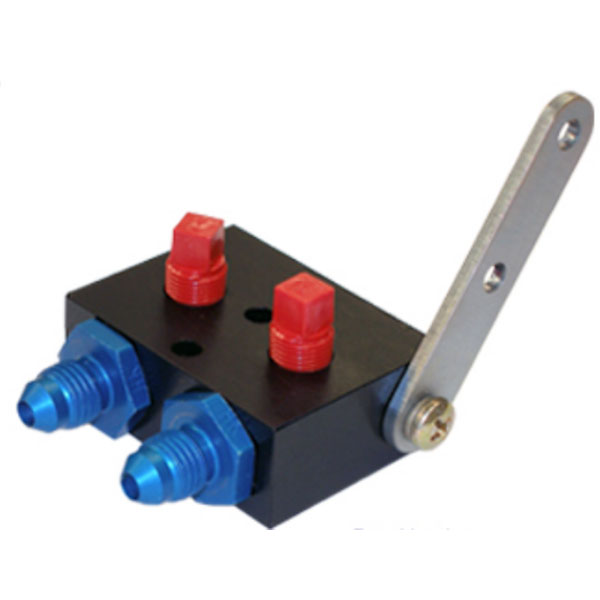

068-004Side-4 Flare
06-01263
$396.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Innovative design allows control lever to be attached in any of four positions as well as on either side of valve body.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Internal poppet valves insure easy, secure operation.
  • Body is drilled for mounting with two 3/16" bolts.
  • Control arm has 45° of travel.
  • For use with MIL-H-5606 Hydraulic Fluid.

Specifications

  • Valve body dimensions: 1.5" x 2.0" x 0.75"
  • Max operating pressure: 1,200 psi.
  • Weight: 0.32 lbs.
  • Side or top inlet ports: 1/8" NPT
  • Outlet ports: 1/8" Female NPT or -4 Flare.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

A quality parking brake valve that works as advertised.

Krawietz A Verified Purchase

Inline Park Brk Valve Top 1/8

July 21, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are there any replaceable o-rings in this Grover Inline Parking Brake Valve, part # 06-01260?

The three o-rings in this part are:

P/N# MS28775-010 x QTY:3
P/N# MS28775-006 x QTY:2
P/N# MS28775-012 x QTY:2

Q: Does the valve come with the alternative arm shown in the 068-001 Assembly Parts document?

Unfortunately, the alternate arm does not come with the assembly but you can purchase it.The alternate arm part number is 068-024.
